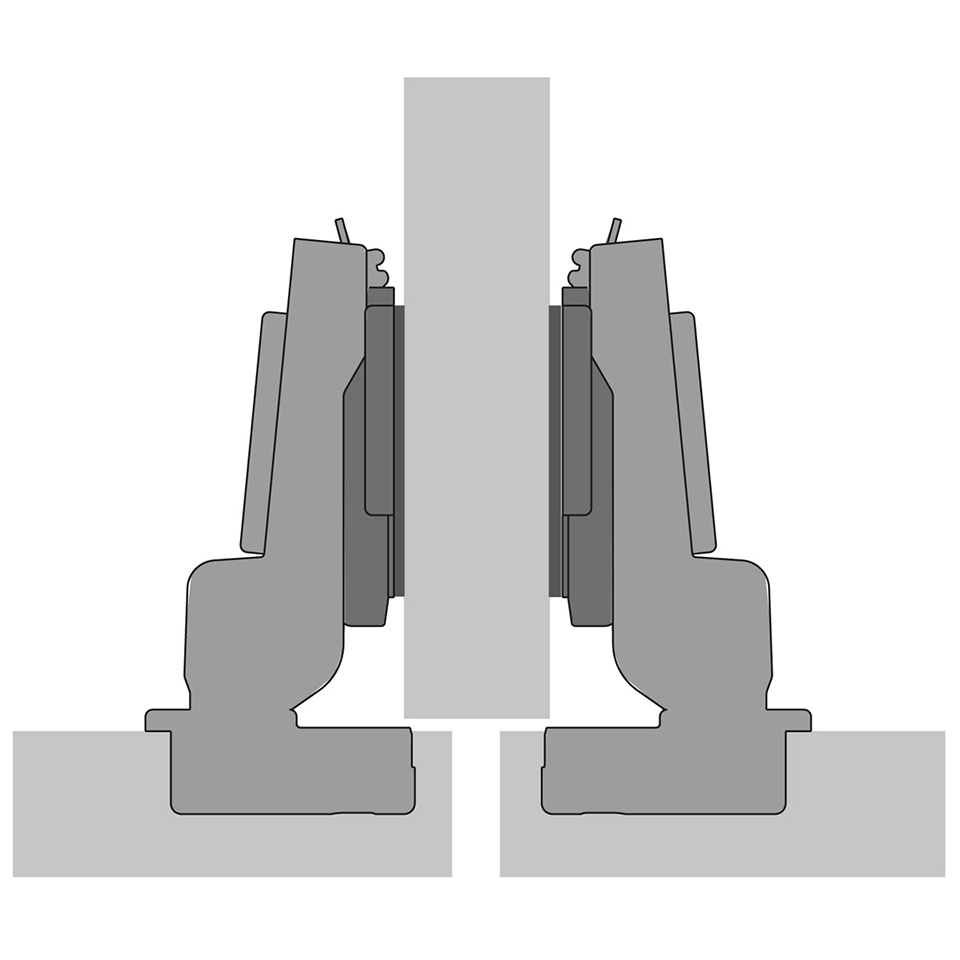

HETTICH 9313171 Novisys 105° TH52 semi-loaded, press fit, PTO
Product range code
497638
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

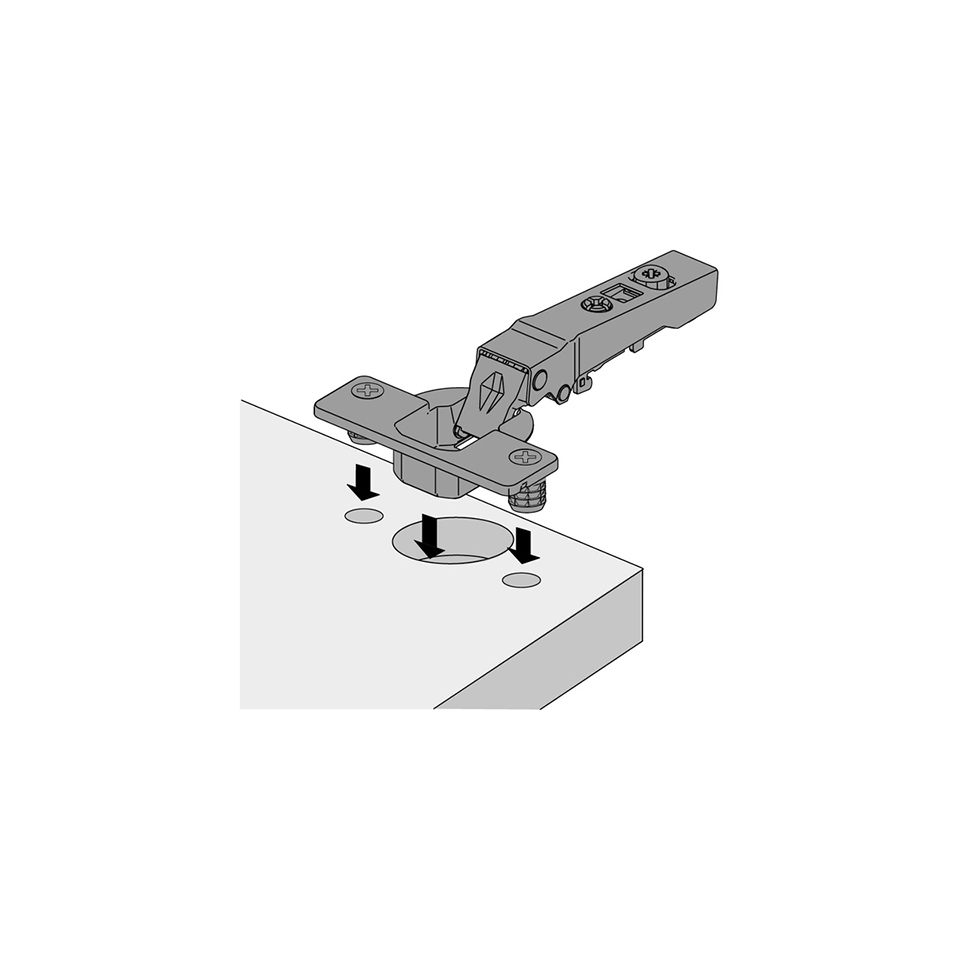

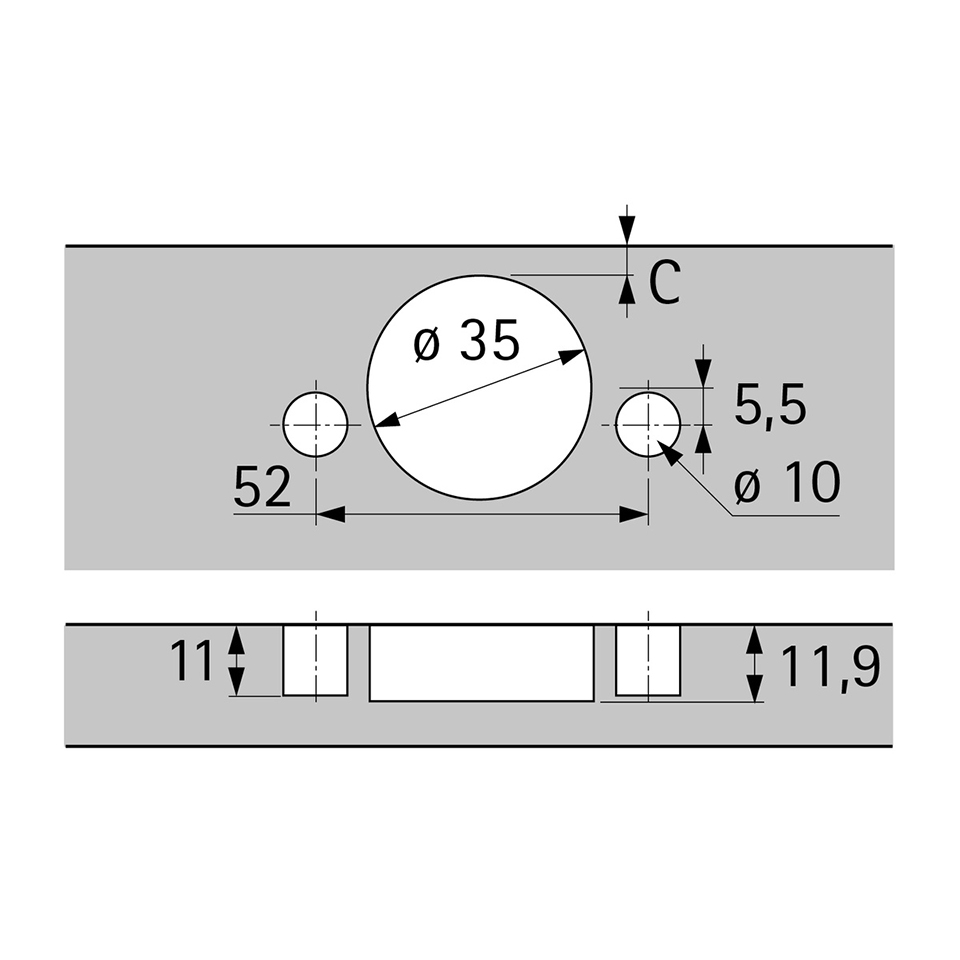

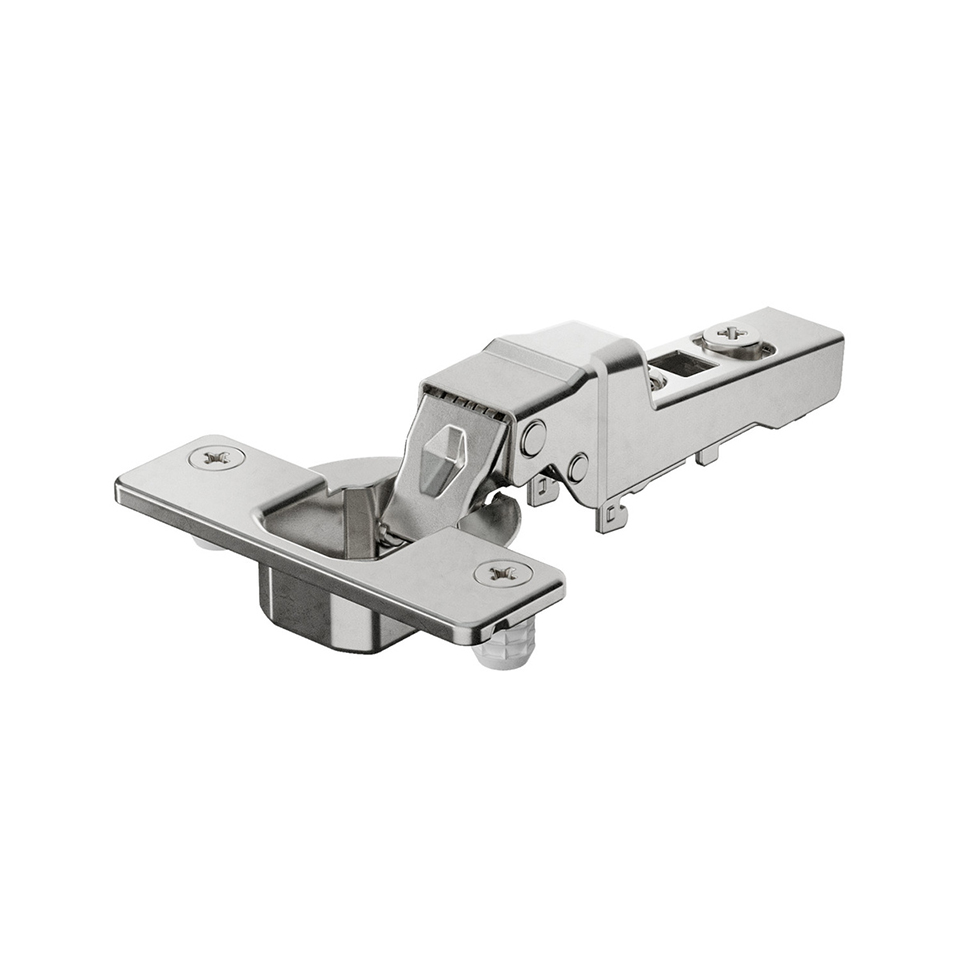

Novisys 8878 bowl hinge with quick clip assembly for handleless Push-To-Open (PTO) opening. Opening angle 105°, drilling pattern as indicated (TH 52x5.5mm or TB 45x9.5mm). For door thickness 14-24mm, bowl depth 11.8mm. Integrated loading adjustment +/- 2 mm, integrated depth adjustment +2.8/-1.2 mm. Height adjustment with mounting pad. Nickel-plated steel.
