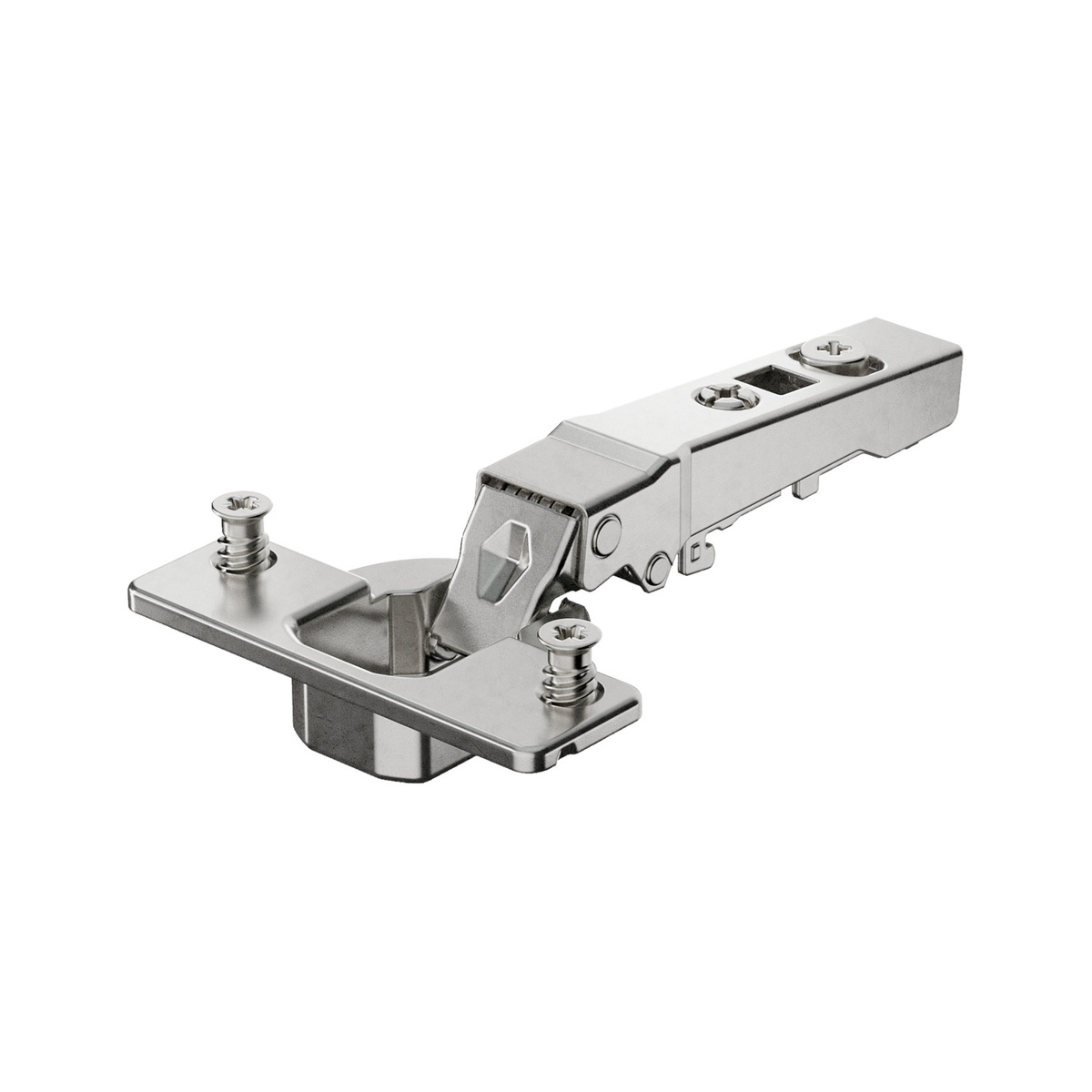

HETTICH 9313194 Novisys Loaded 105° TB45 Euroscrew SiSy
Product range code
510744
Special offer
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

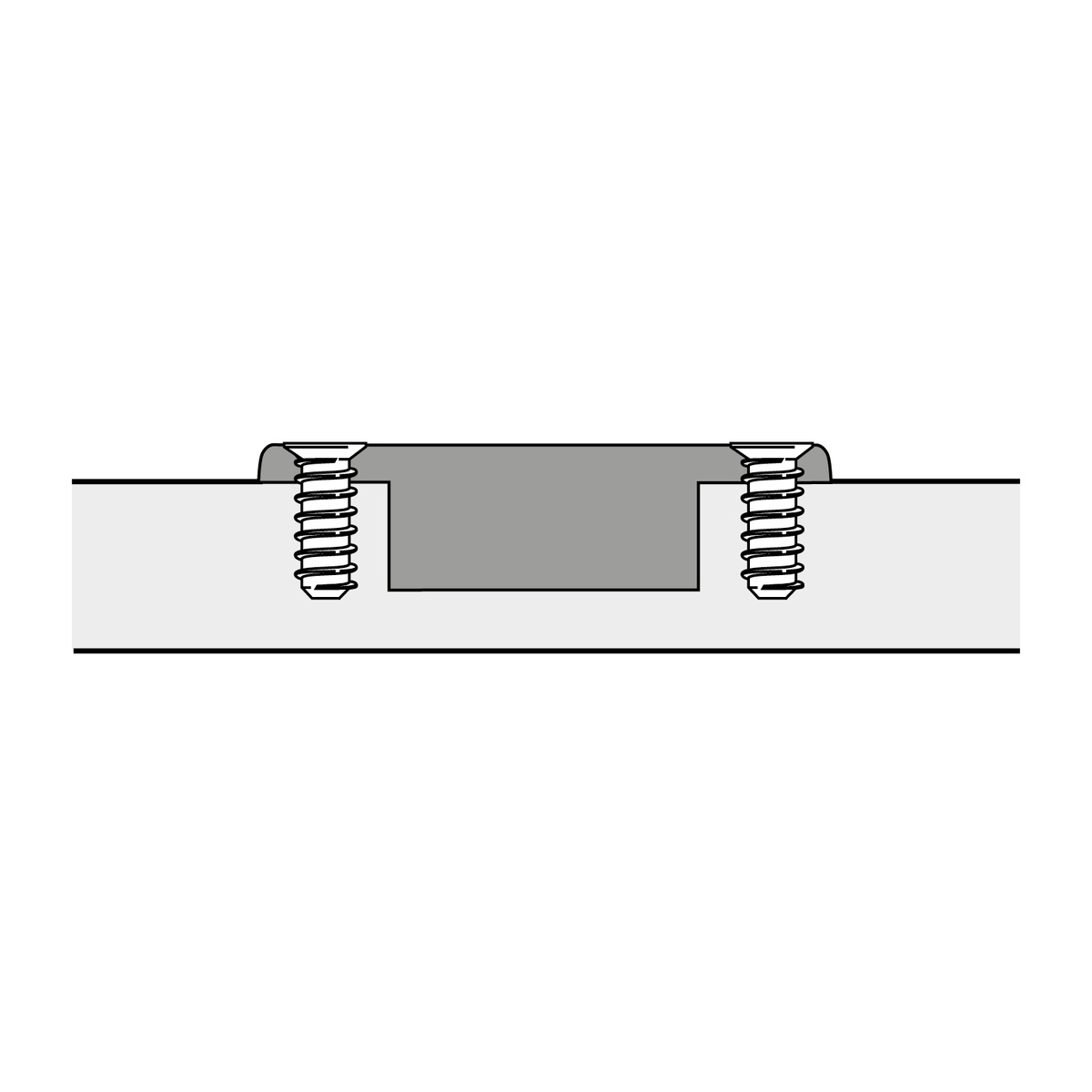

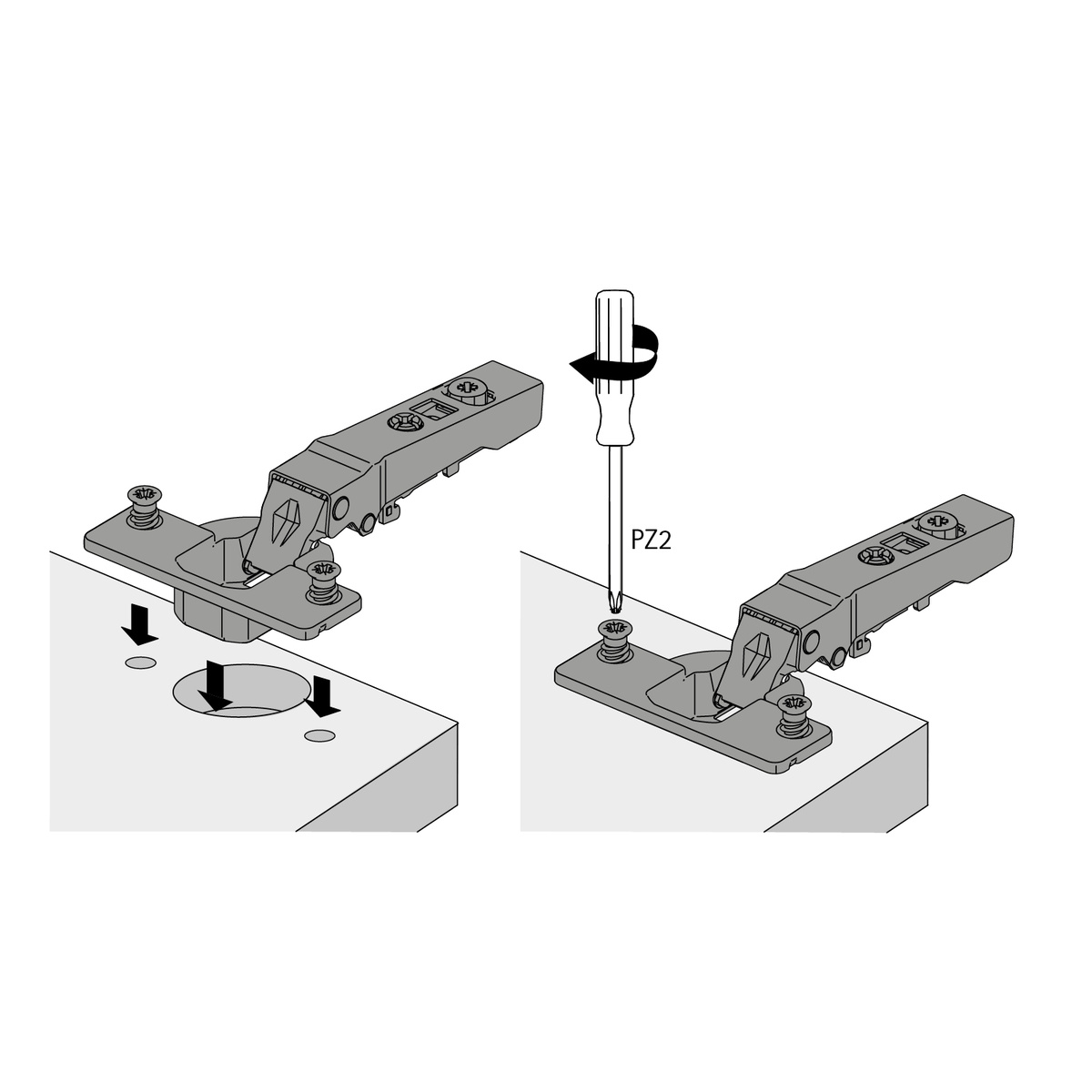

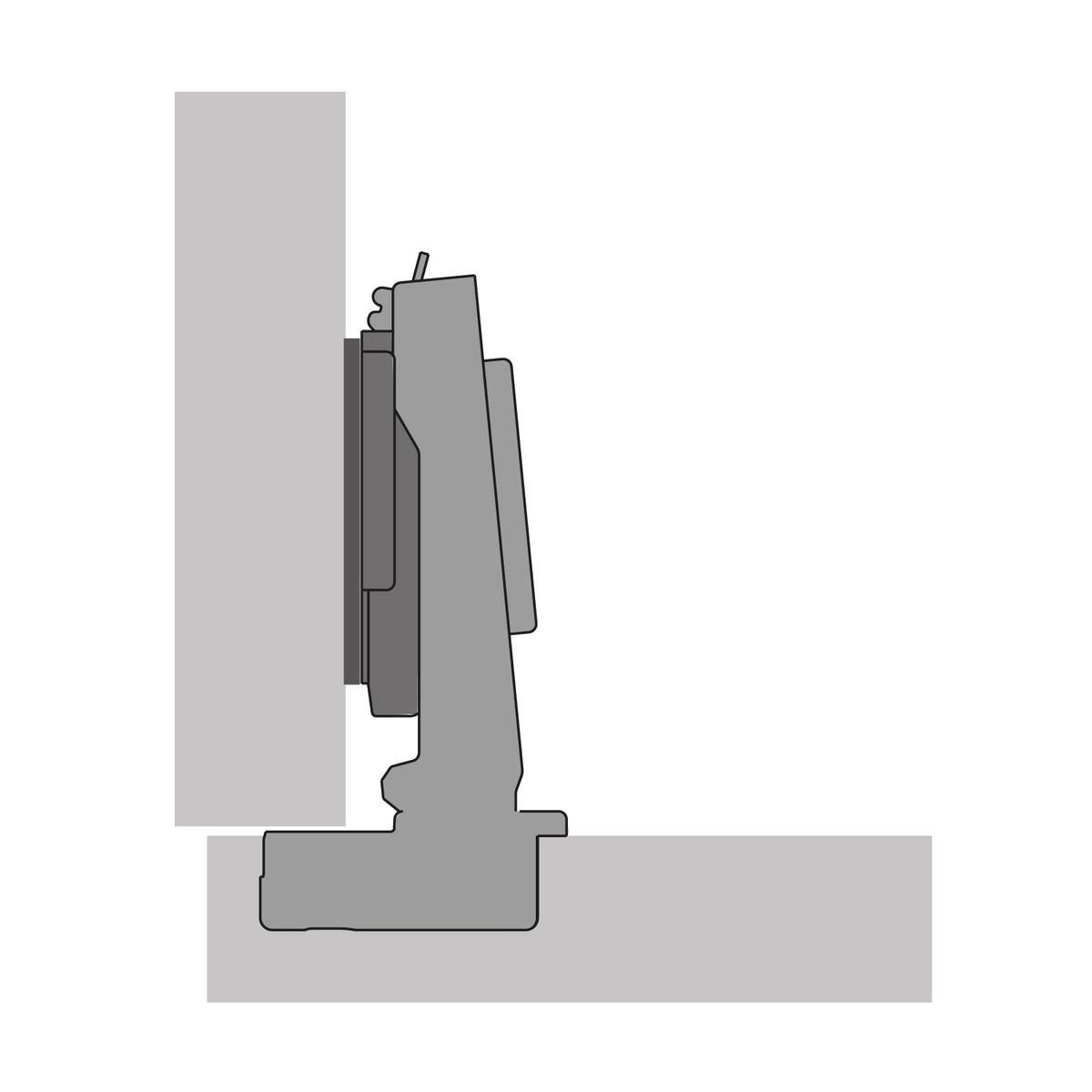

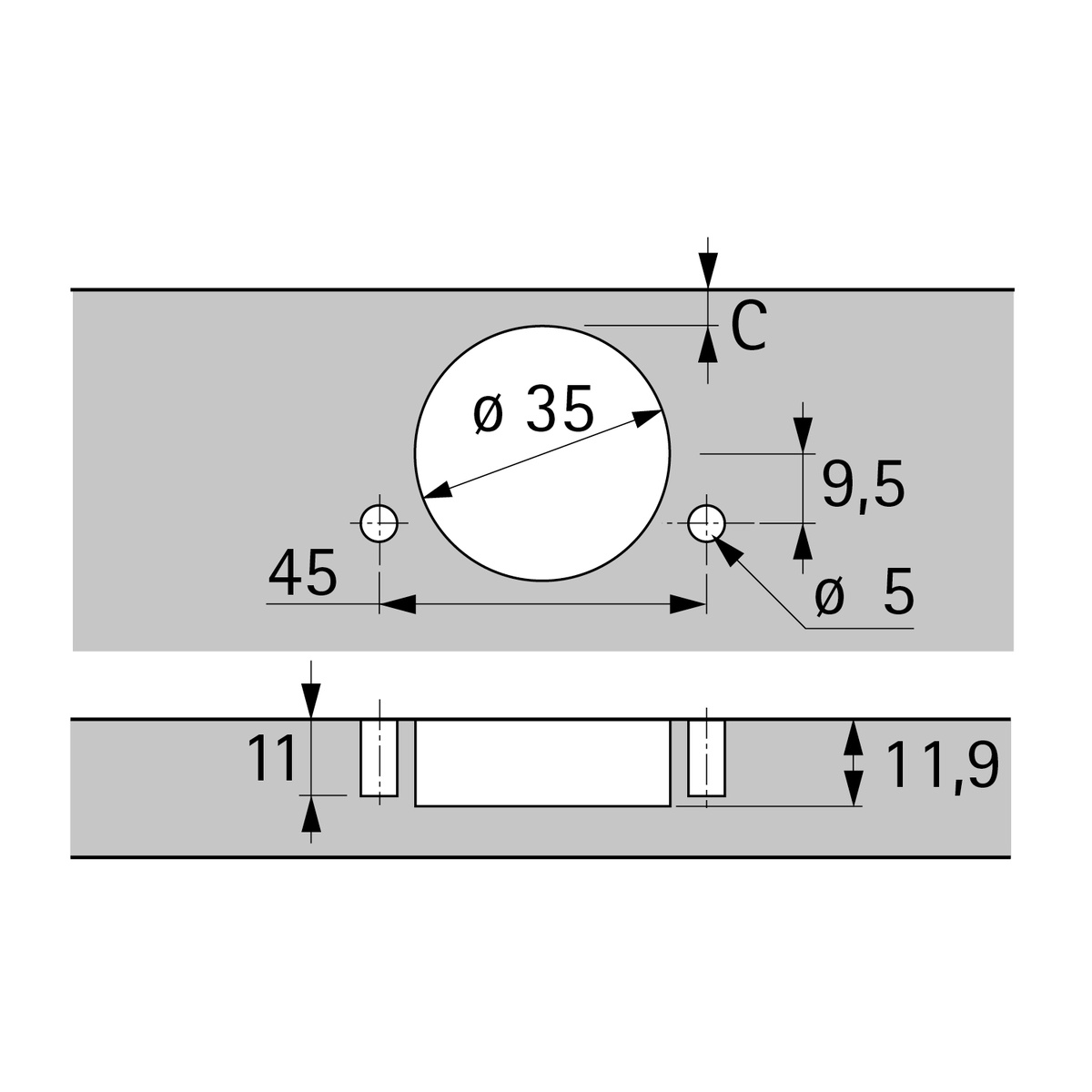

Standard loaded Novisys 105° hinge with closing spring and integrated damping. Opening angle 105°, for door thickness 14-24mm. TB version - drilling 45x9.5mm. Bowl depth 11.8mm. Installation with euro screws. Integrated loading adjustment +/- 2mm, integrated depth adjustment +2.8 / -1.2 mm. Height adjustment with mounting pad. Nickel-plated steel.
