HETTICH 9313898 washer Novisys D=5 Euroscrew
Product range code
497665
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

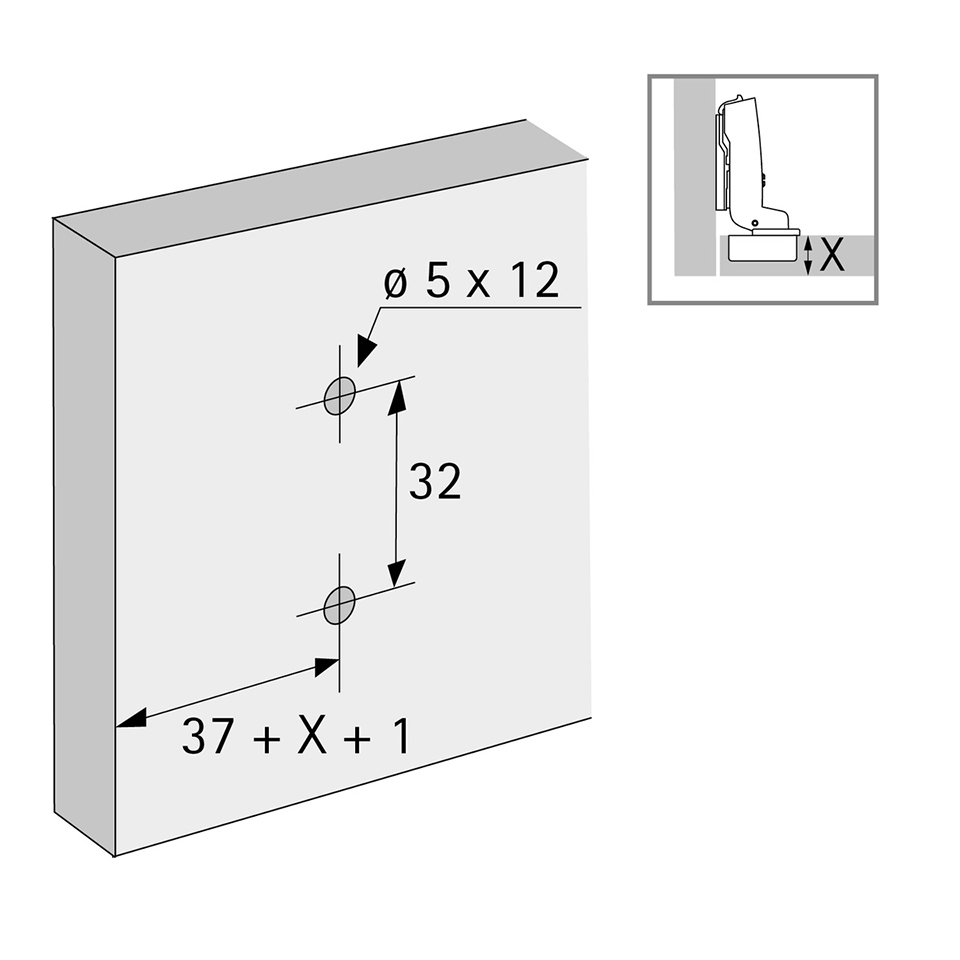

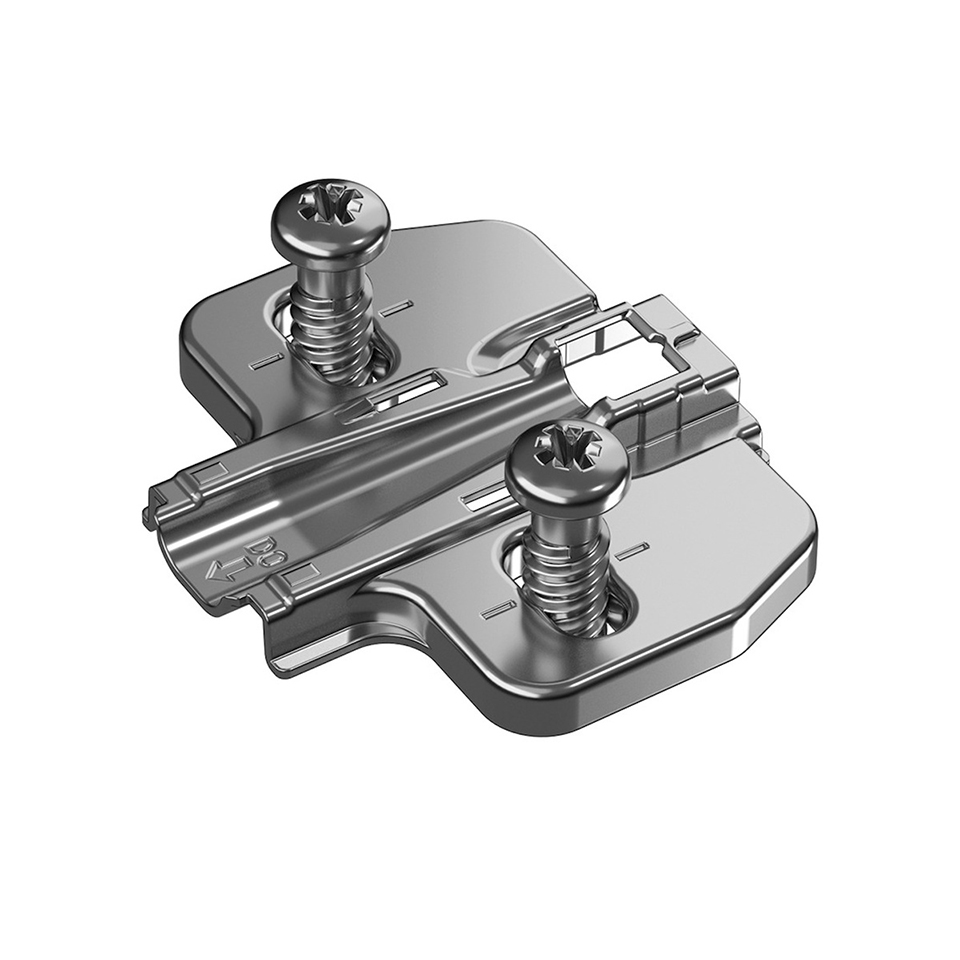

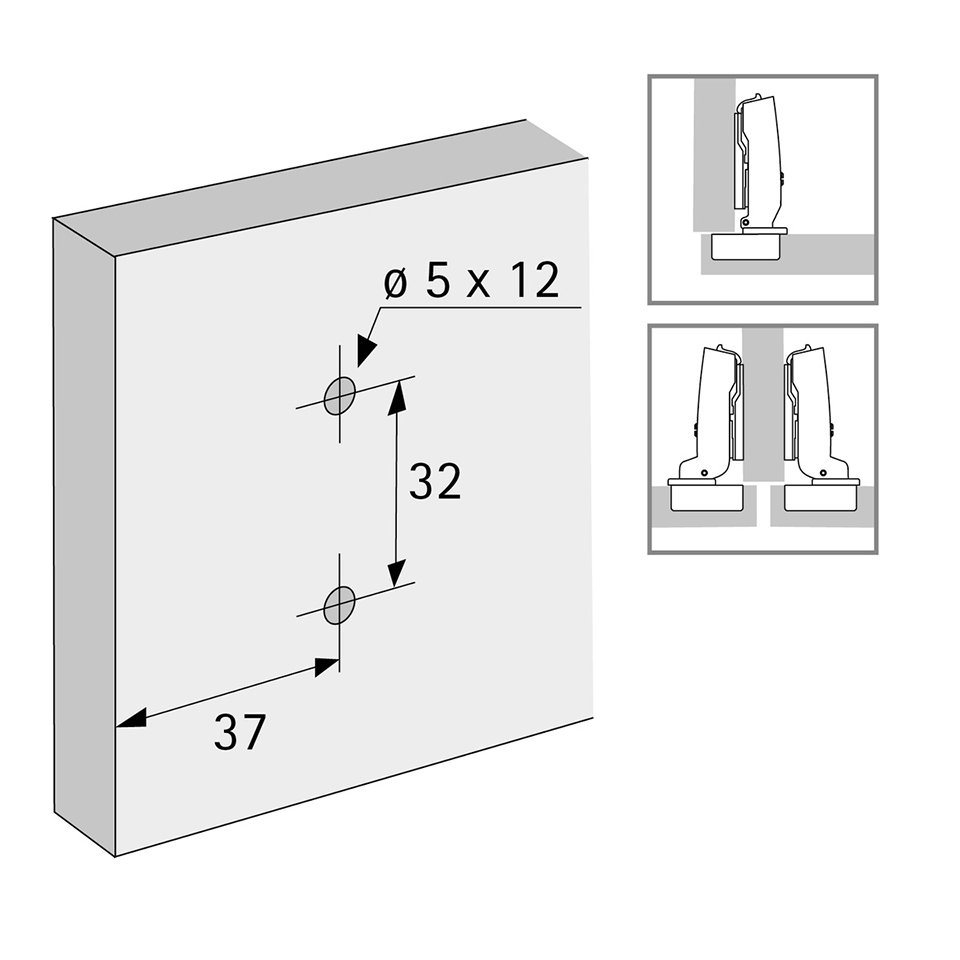

Novisys mounting pad with pre-assembled Euroscrews, D5x12mm holes must be pre-drilled. Hole spacing 32mm, drilling for a (semi)loaded hinge 37mm from the front edge of the body (System32). Height adjustment +/- 3mm using oval holes. Nickel-plated steel.
