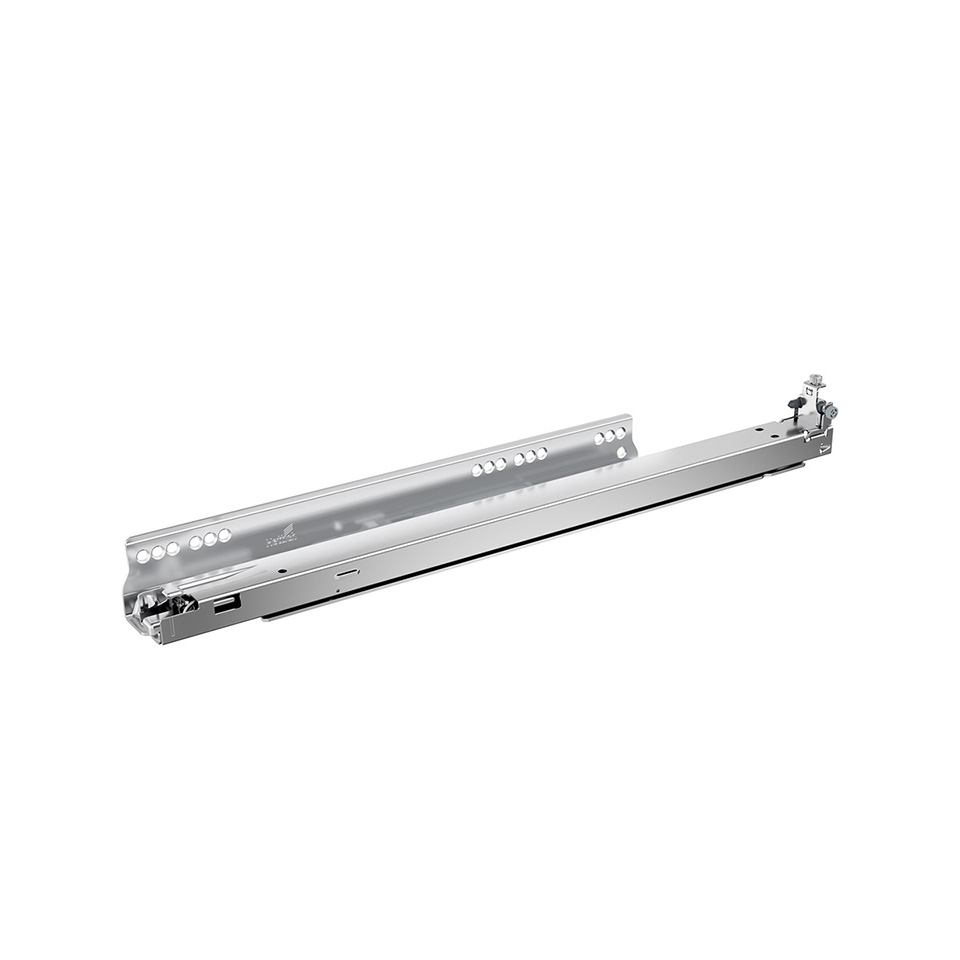

HETTICH 9318296 Actro 5D full extension slides 520mm/70kg SiSy L
Full extension slide Actro 5D with Silent System (compatible with PTOs) for combining with wooden drawer. Drawer side thickness up to 16mm. Catch must be ordered separately.
Tool-less adjustment:
- height up to +3mm
- left/right up to +/-1.5mm
- tilt up to +4mm
- radial up to +/-1.5mm
Optional depth adjustment up to +/-2mm using extra depth adjustment component (order No. 397909).
Nominal length, load class and mounting side see product name.
Parameters
| Parameter | Value |
|---|---|
| Length (mm) | 520 |
| Load capacity (kg) | 70 |
| Movement of extended drawer | With damping |
| Type of extension guide | Full extension slide |
| Title | Code | Availability |
Divisibility/ packaging |
Basic price per unit | |
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
517628 |
>
S
In stock
|
1 pcs / 100 pcs |
3,8258 EUR
/ pcs
4,6292 EUR incl. VAT
|
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
517629 |
>
S
In stock
|
1 pcs / 100 pcs |
3,8258 EUR
/ pcs
4,6292 EUR incl. VAT
|
|
|
