IF APC 6 rectification fittings hidden,set - hinge. fittings,sheets,caps,screw
Product range code
396227
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
- Base price per set
- 3,9823 EUR 4,8185 EUR incl. VAT
-
> S In stockOnly in central warehouse
- Buy
- Brand
- Italiana Ferramenta
- Group code
- 1010010201
- Unit (piece)
- set
- Divisibility
- 1 set
- Packaging
- 100 set
Description and parameters

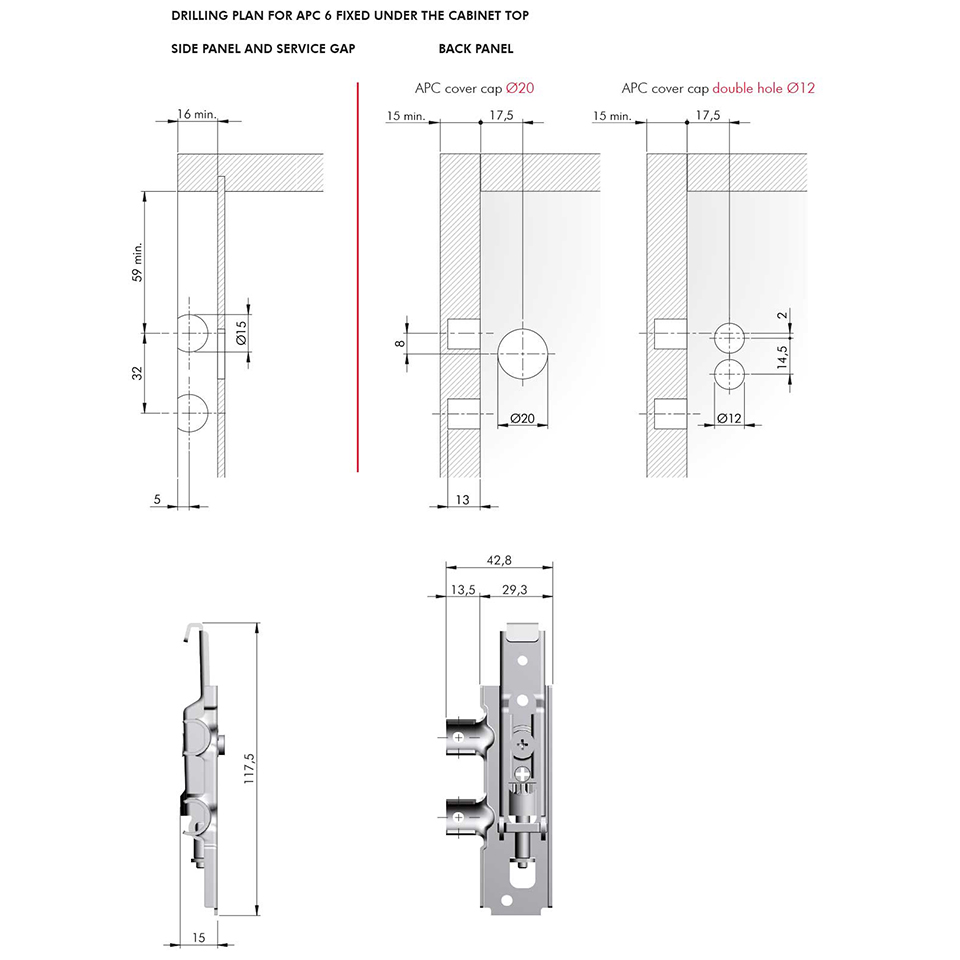

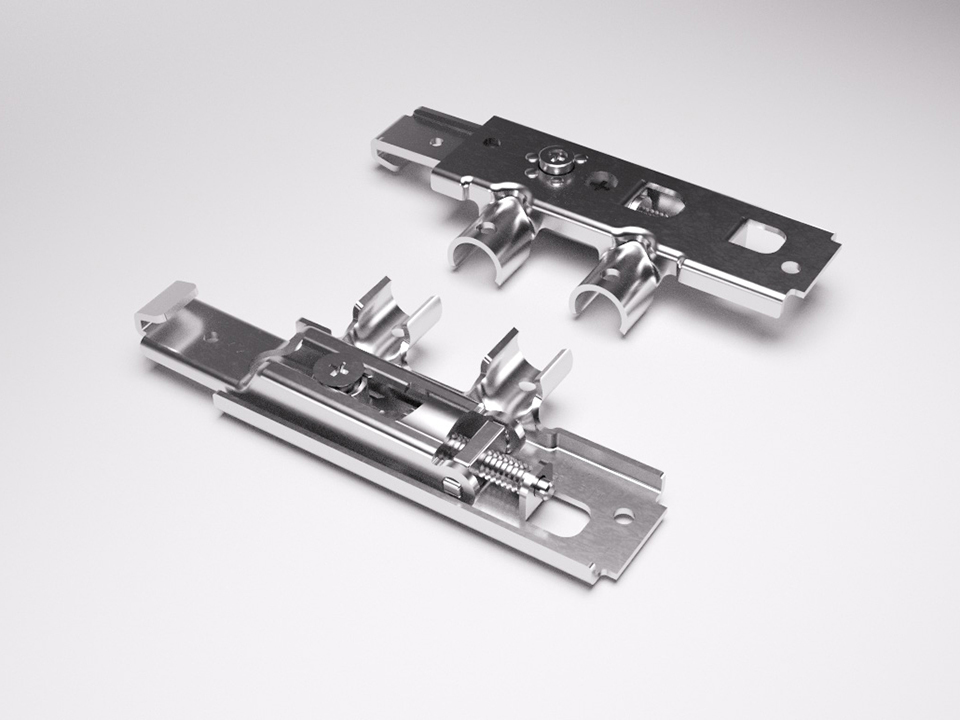

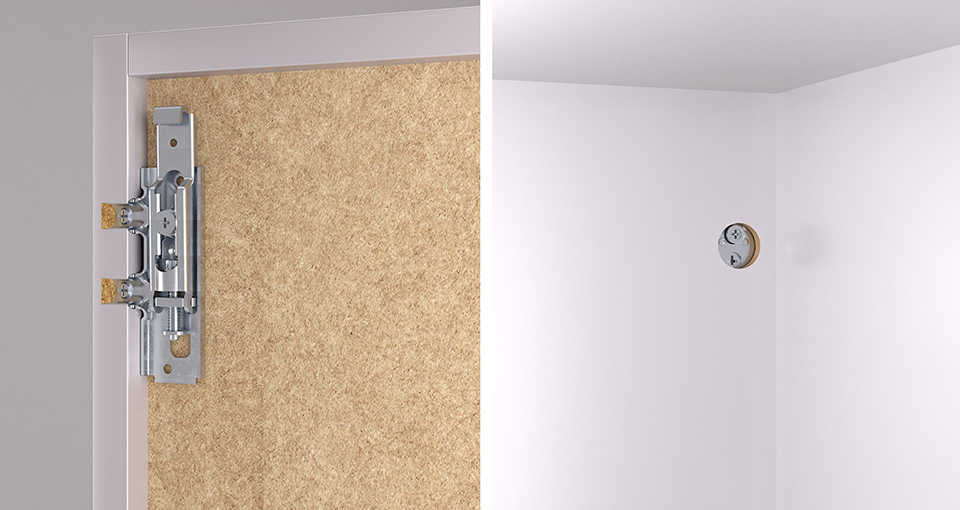

Rectification fittings for the right and left side, hidden behind the back wall of the cabinet, visible from the front side is only a cover with a diameter of 20 mm. Mounting with screws into the wall and floor of the body. Possibility of horizontal and vertical adjustment. The set includes one pair of fittings, hanging plates, a white plastic cover and body screws (6 pcs). Load capacity 75kg/piece, 150kg per pair
Related documents
Assembly instructionsParameters
| Parameter | Value |
|---|---|
| Mounting into material | Screw |
