IF gas-liquid bottom flap K12 244mm graphite
Product range code
469034
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
- Base price per pcs
- 18,36 EUR 22,2156 EUR incl. VAT
-
> O On demand
- Buy
- Brand
- Italiana Ferramenta
- Group code
- 10100302
- Unit (piece)
- pcs
- Divisibility
- 50 pcs
- Packaging
- 50 pcs
Description and parameters

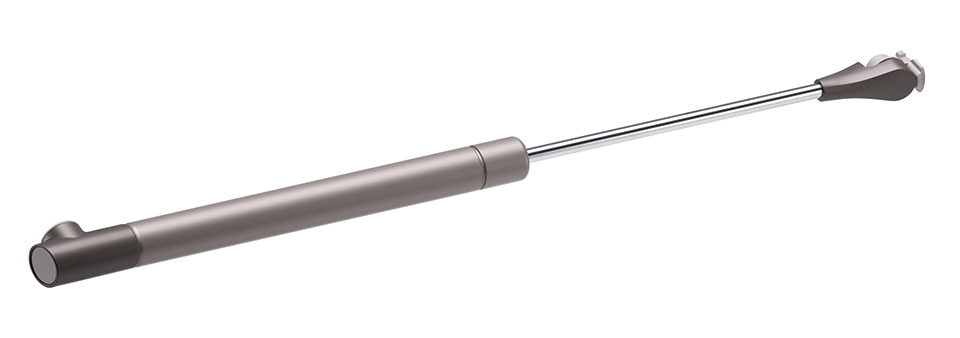

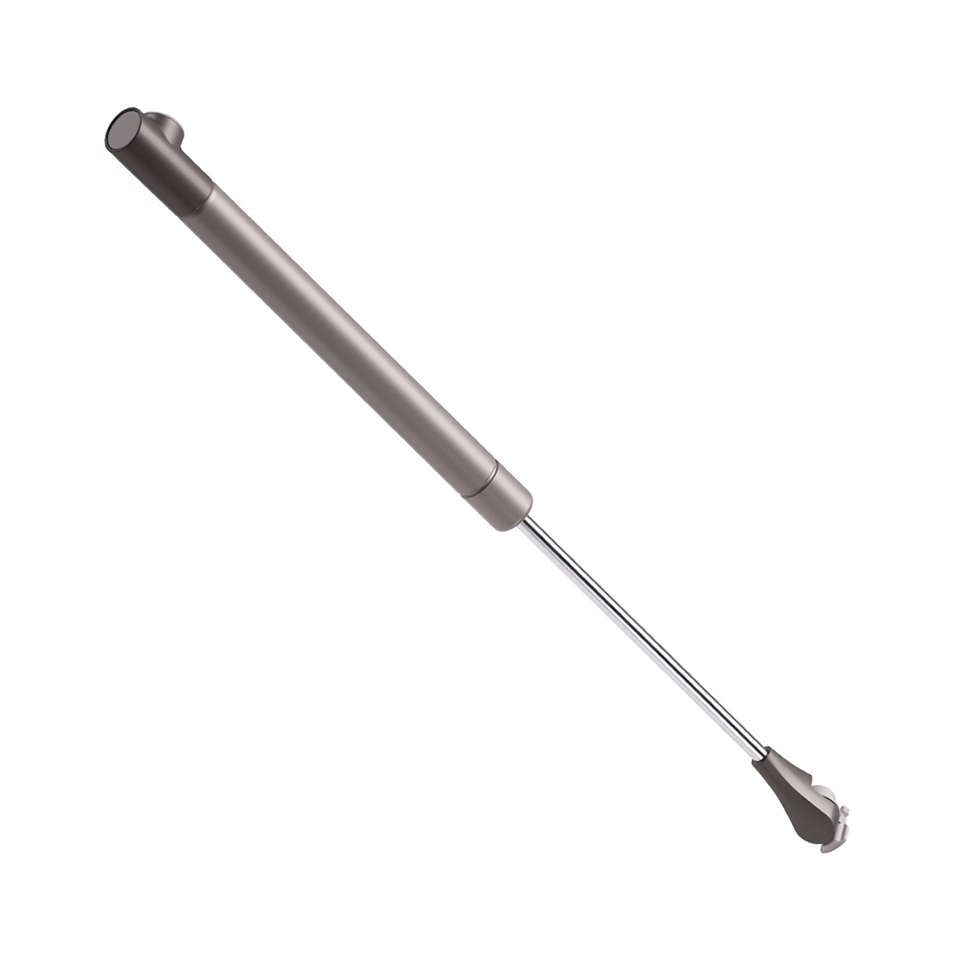

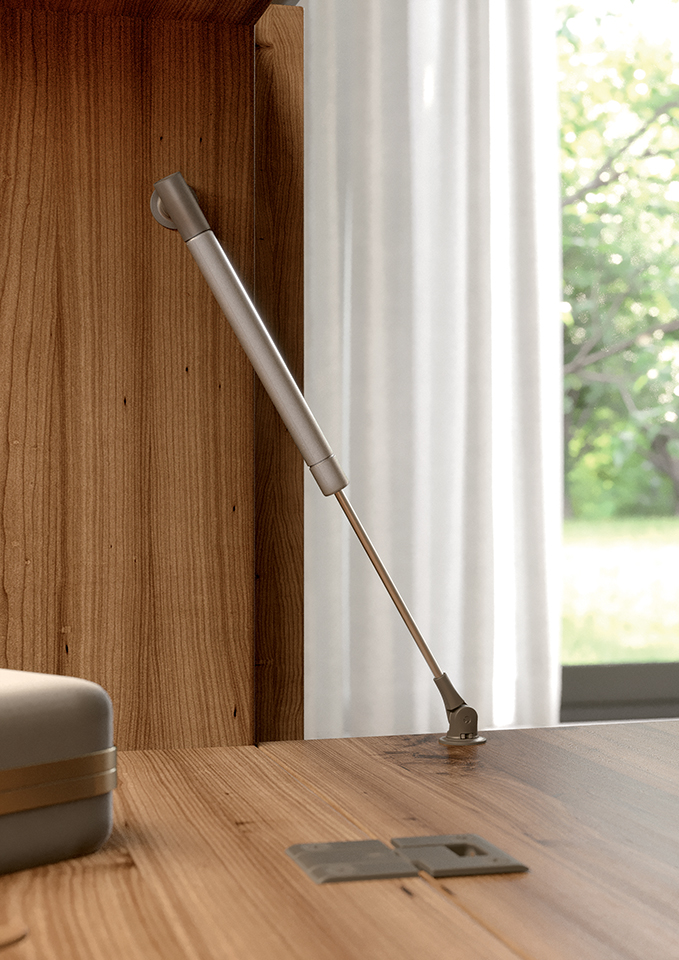

Gas-liquid lower flap K12 in the color "graphite" including accessories. Minimalist design, piston diameter only 12mm. We recommend in combination with KIMANA springless curtains. In combination with the K-PUSH system, it can also be used for handleless opening.
The set includes:
1x graphite piston

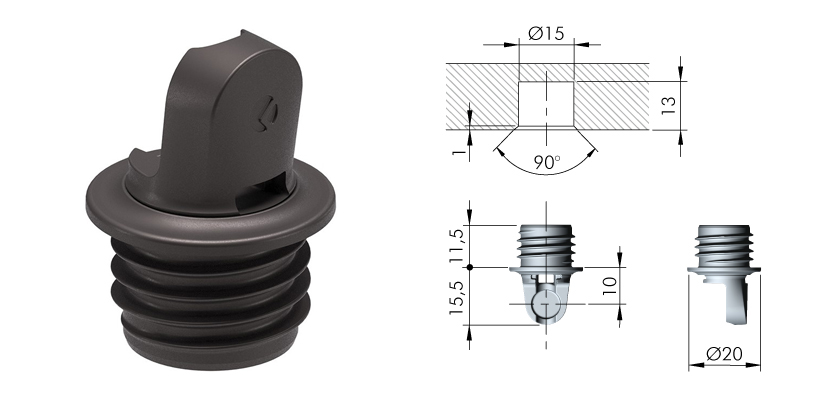

1x handle for the body for a hole d15mm graphite

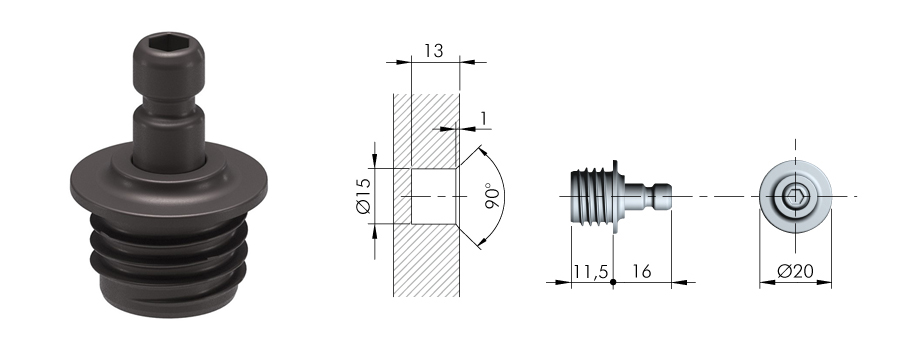

1x handle for the door for a hole d15mm graphite

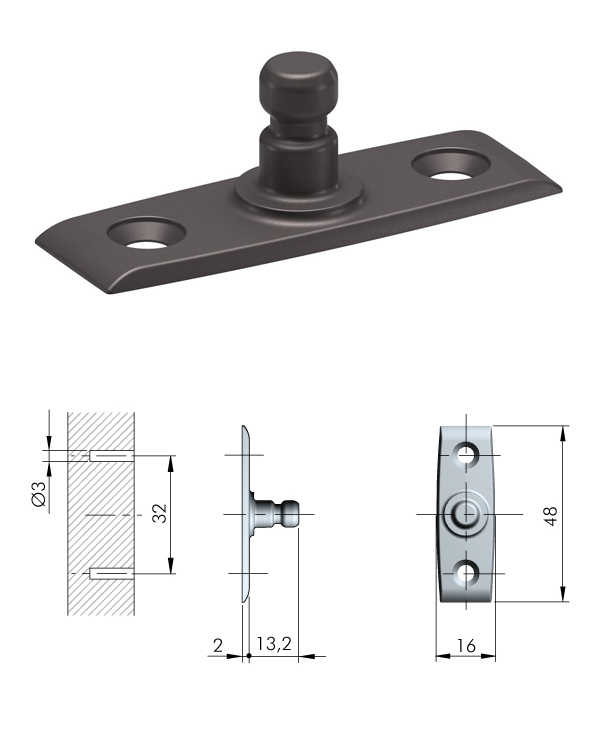

1x holder for the body for 2 screws graphite
1x holder for the door for 2 screws graphite

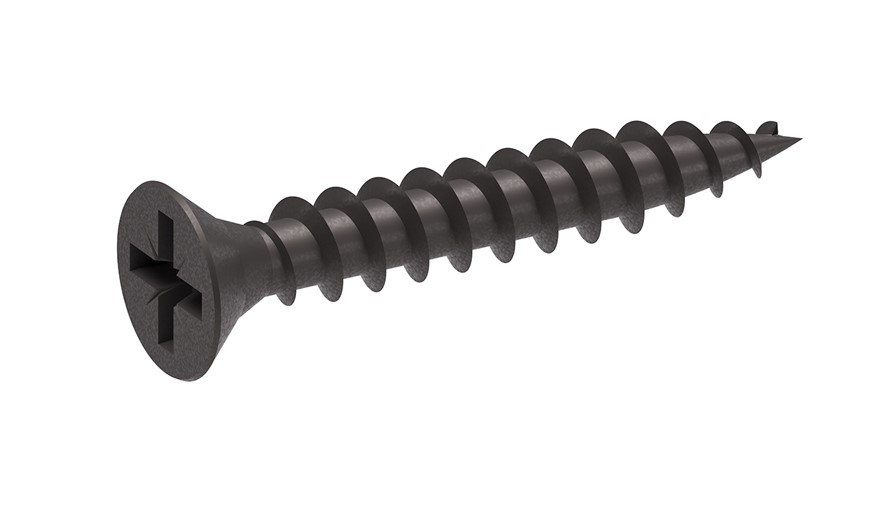

4x countersunk screw 3.5x16mm graphite

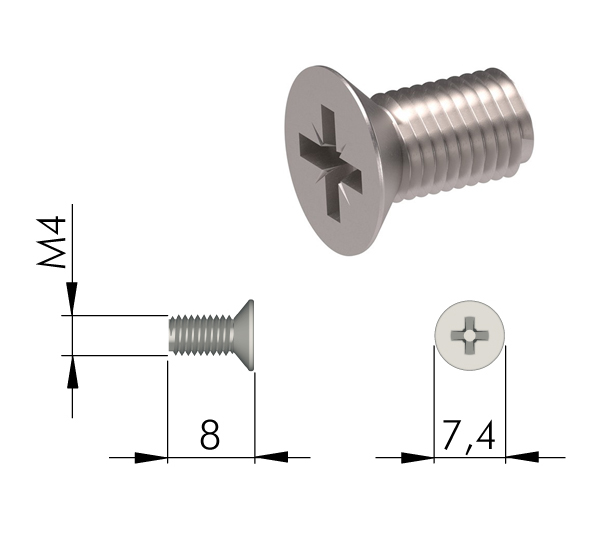

2x countersunk screw M4x8mm nickel for adapters for aluminum frames

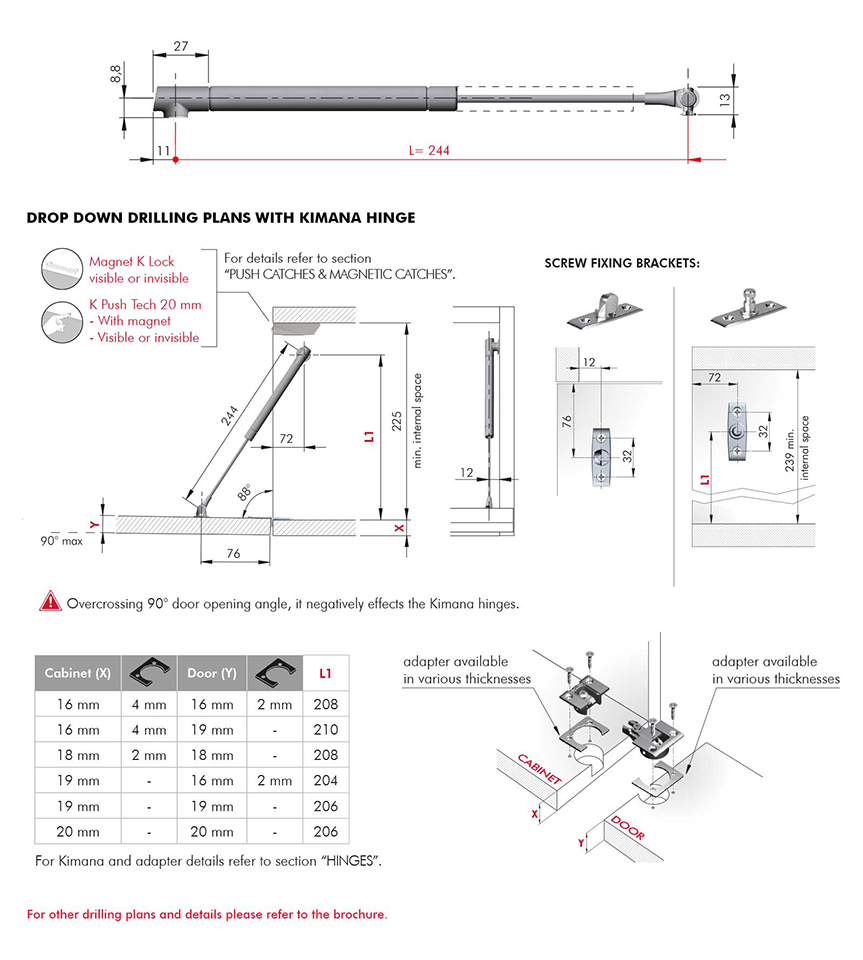

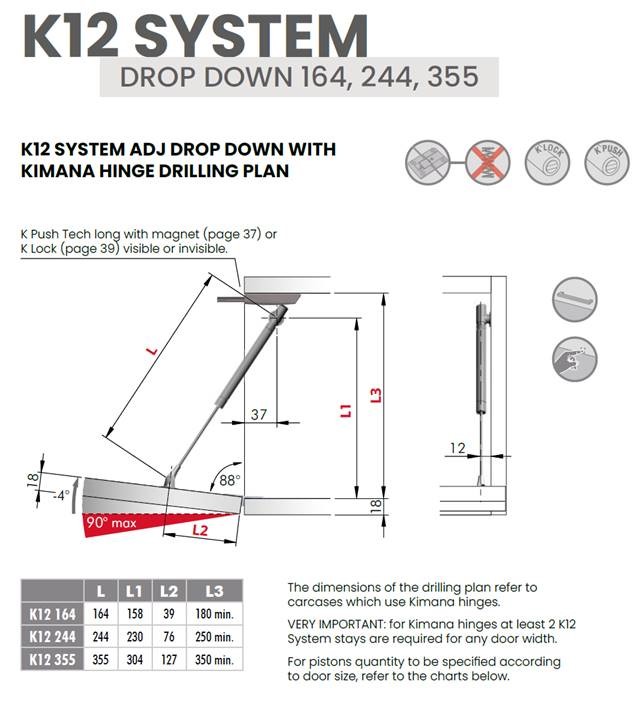

APPLICATION FOR CALCULATING FORGING STRENGTH K12
Related documents
Technical descriptionParameters
| Parameter | Value |
|---|---|
| Colour | Graphite |
| Design | Automatic |
| Height of body (mm) | 290 - 500 |
| Type of front side | Wood, wide alu frame |
