IF gas-liquid bottom flap K12 355mm graphite
Product range code
469035
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
- Base price per pcs
- 21,6648 EUR 26,2144 EUR incl. VAT
-
> O On demand
- Buy
- Brand
- Italiana Ferramenta
- Group code
- 10100302
- Unit (piece)
- pcs
- Divisibility
- 50 pcs
- Packaging
- 50 pcs
Description and parameters

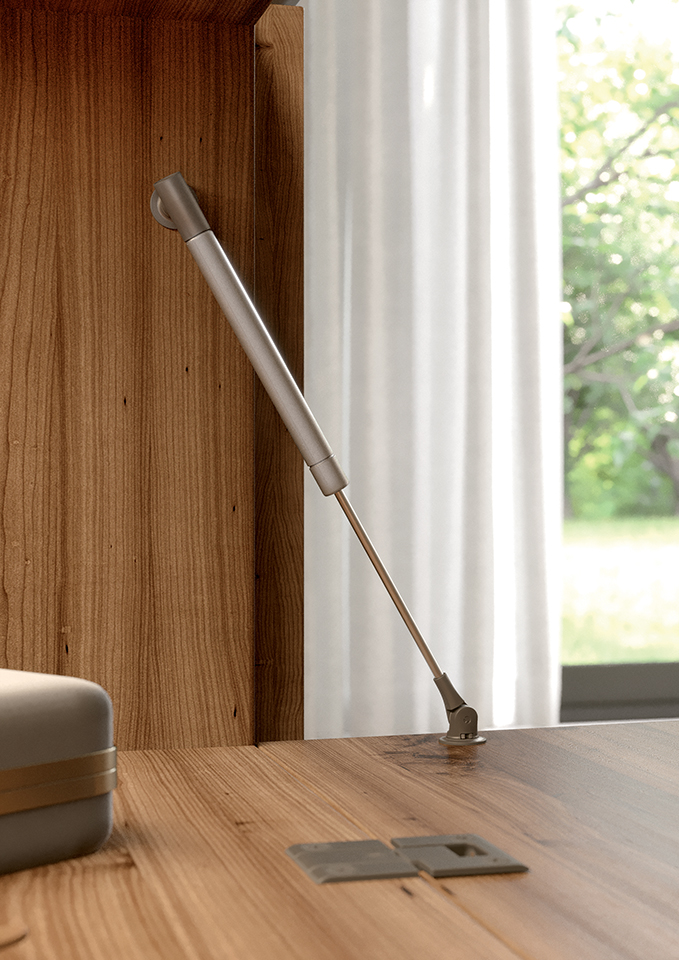

Gas-liquid lower flap K12 in the color "graphite" including accessories. Minimalist design, piston diameter only 12mm. We recommend in combination with KIMANA springless curtains. In combination with the K-PUSH system, it can also be used for handleless opening.
The set includes:

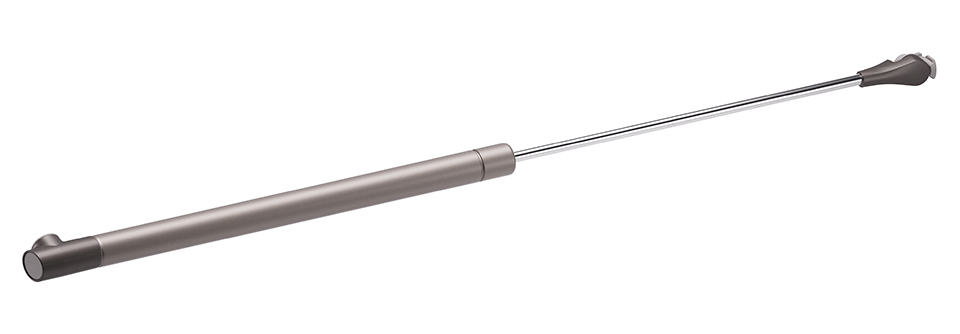

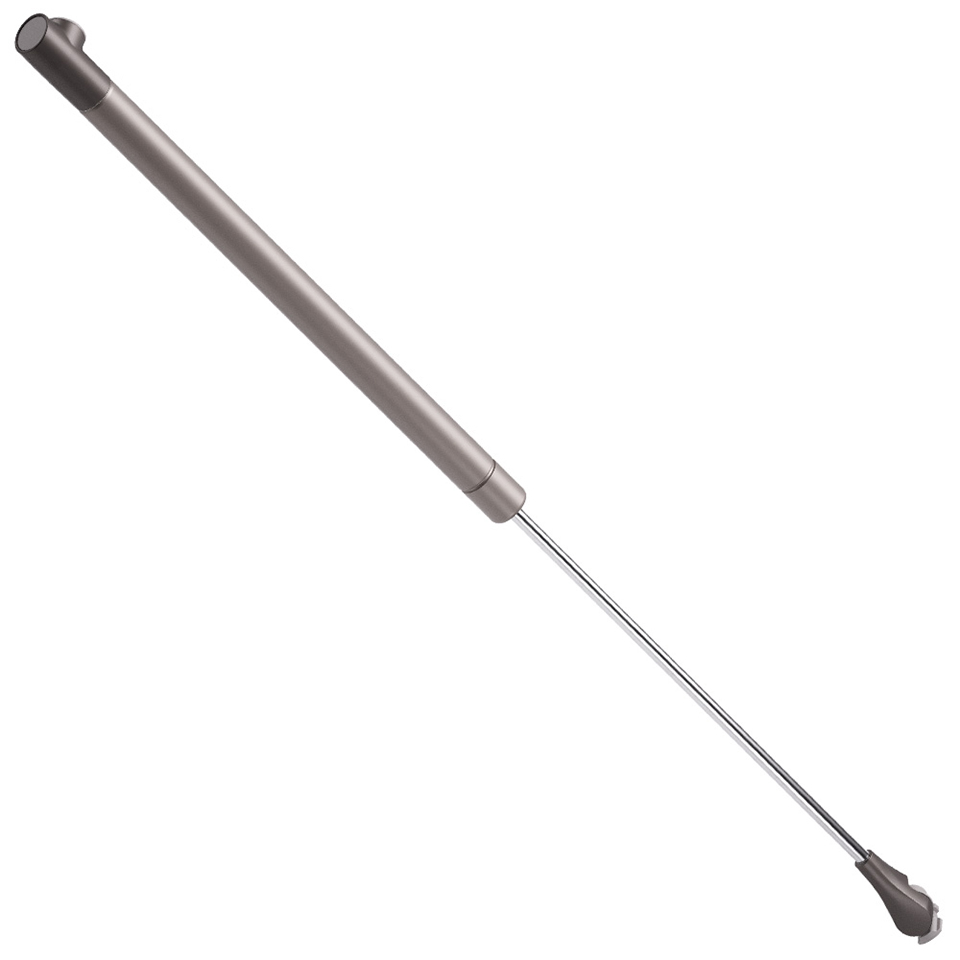

1x graphite piston

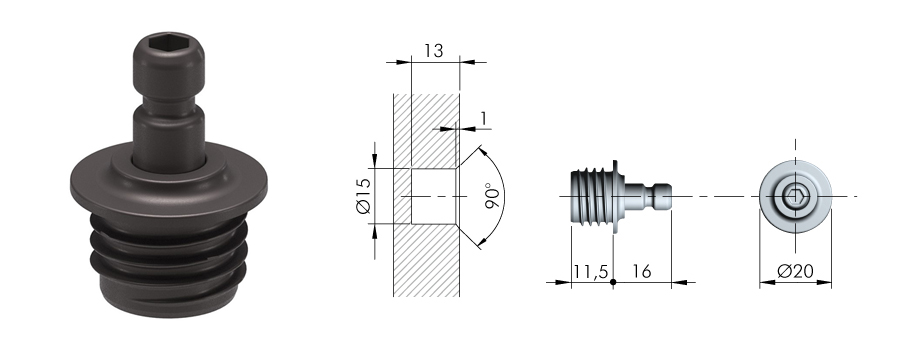

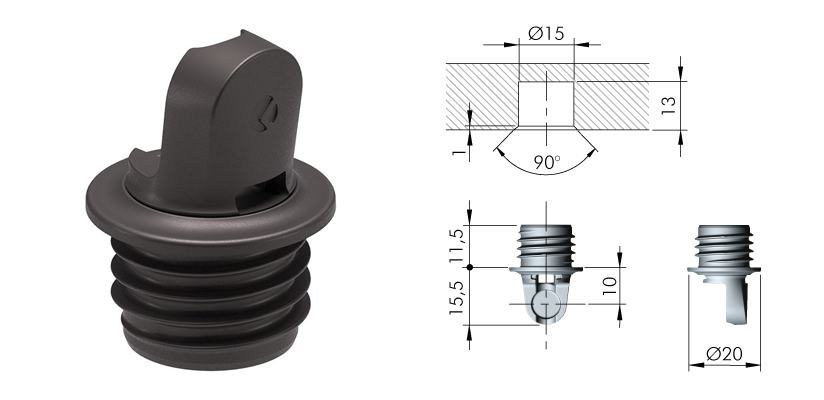

1x handle for the body for a hole d15mm graphite
1x handle for the door for a hole d15mm graphite

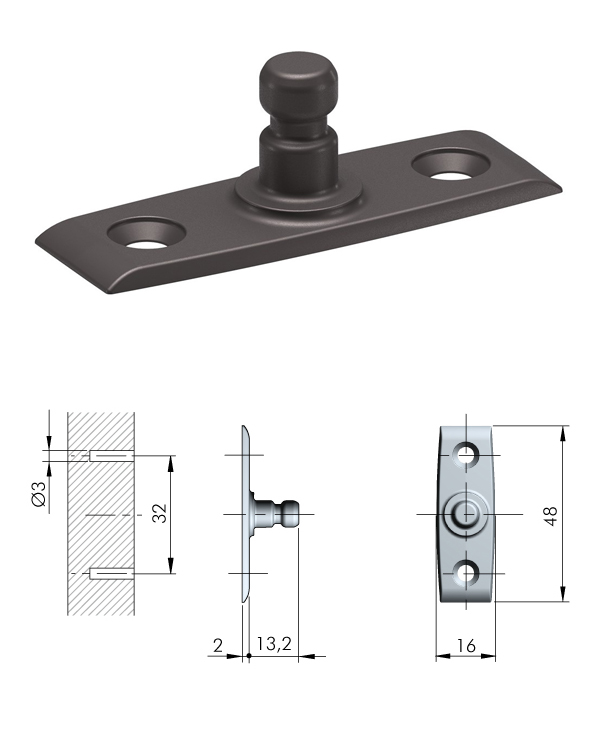

1x holder for the body for 2 screws graphite

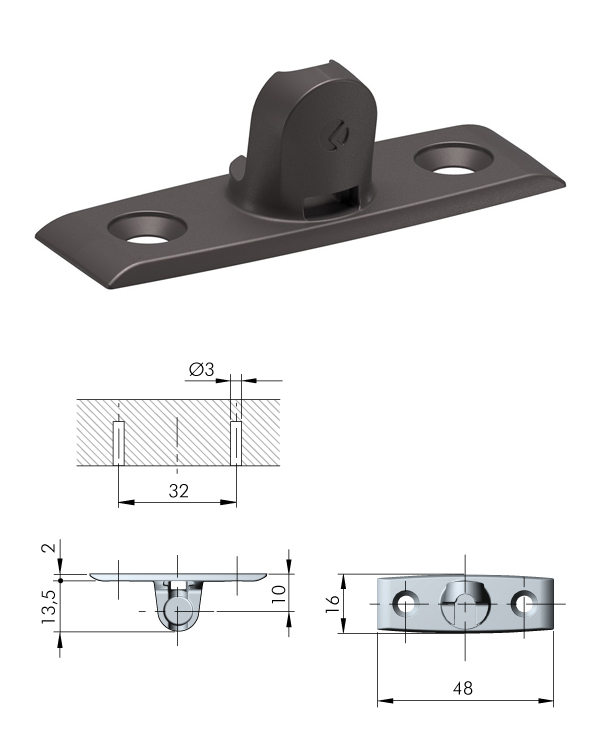

1x holder for the door for 2 screws graphite

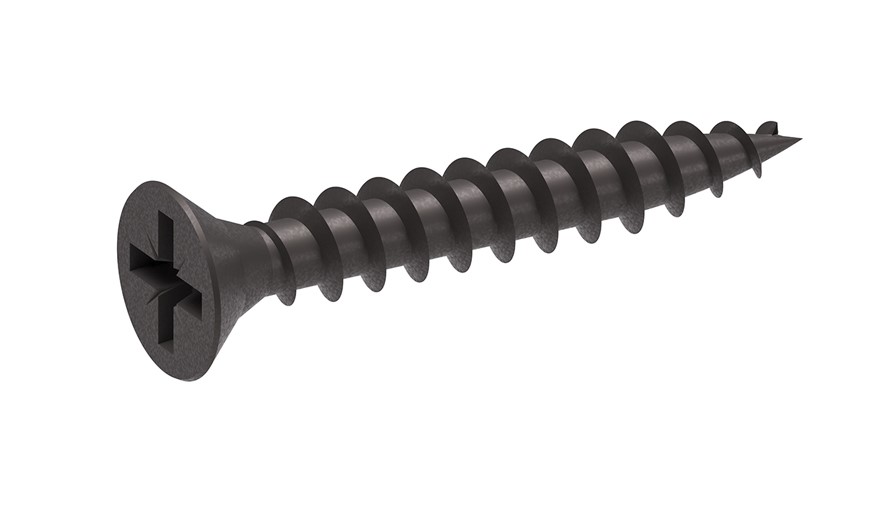

4x countersunk screw 3.5x16mm graphite

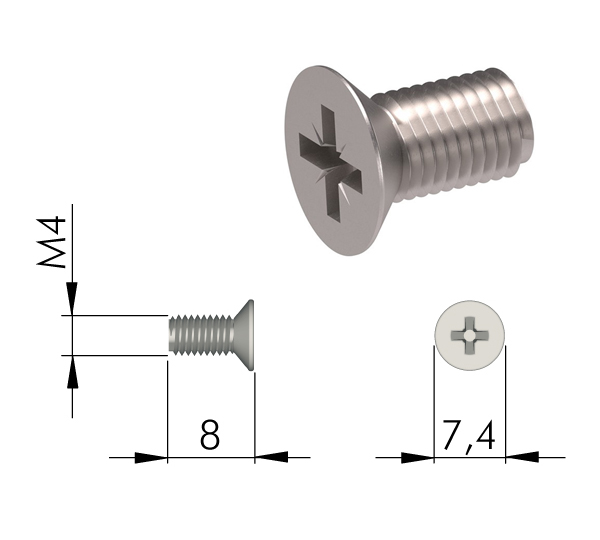

2x countersunk screw M4x8mm nickel for adapters for aluminum frames.
< br> APPLICATION FOR CALCULATING FORGING STRENGTH K12
Related documents
Technical descriptionParameters
| Parameter | Value |
|---|---|
| Colour | Graphite |
| Design | Automatic |
| Height of body (mm) | 390 - 600 |
| Type of front side | Wood, wide alu frame |
