IF Link bottom flap with AQ300 Gunmetal damping
- Base price per set
- 47,6442 EUR 57,6495 EUR incl. VAT
-
> O On demand
- Buy
- Brand
- Italiana Ferramenta
- Group code
- 10100302
- Unit (piece)
- set
- Divisibility
- 12 set
- Packaging
- 12 set

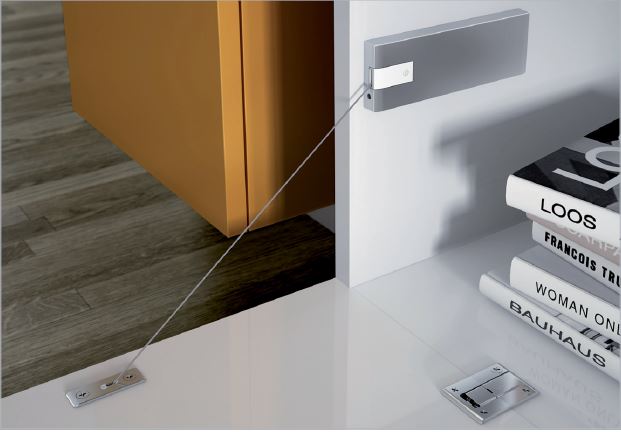

Hardware for doors opening downwards. It brakes when opening, as well as when closing. Therefore, there is no need for damping curtains. Color very dark gray. This is one piece of hardware (one side only), if the application requires it, you need to buy 2x per cabinet.
When setting the mechanism to the upper limit of its strength, there may be a problem when using the push to system open. When the PTO system is activated for the first time (especially after a long period of inactivity), internal friction can sometimes lead to a situation where the hatch does not open. In that case, it is necessary to open the hatch using, for example, a planchet, a wire or a suction cup. Other openings should be normal. If the problem persists, the only solution is to use a classic handle opening instead of the PTO system. Replacing the mechanism will not help - this is not a defect, but a feature.
Related documents

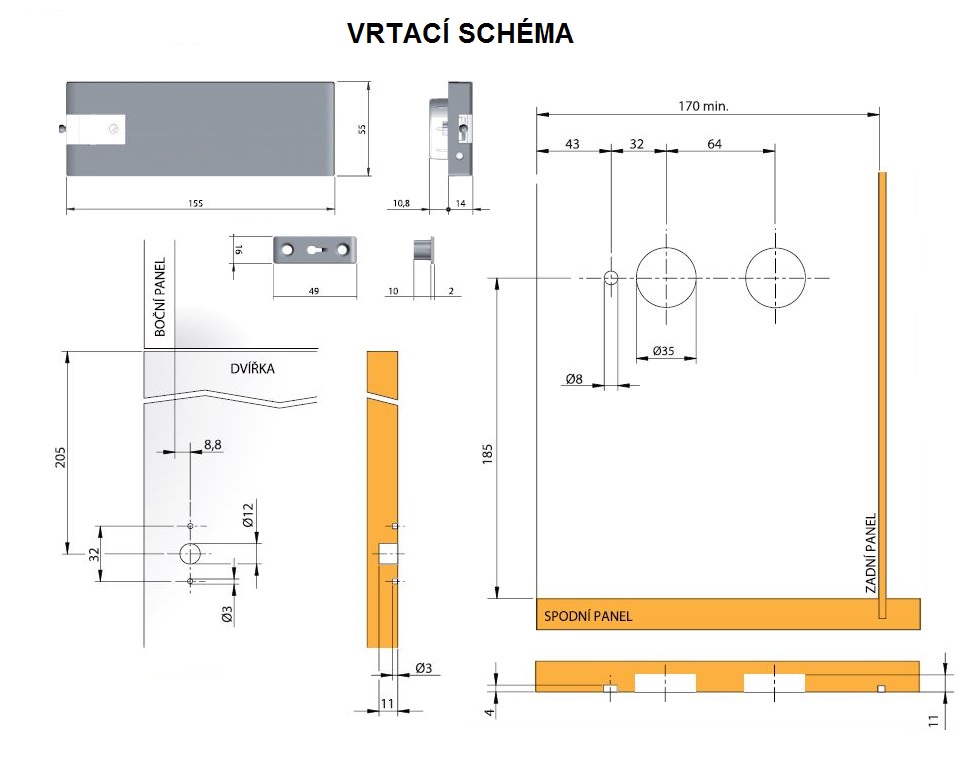

Assembly instructionsParameters
| Parameter | Value |
|---|---|
| Colour | Dark grey |
| Design | Undefined |
| Height of body (mm) | 250 - 480 |
| Type of front side | Undefined |
