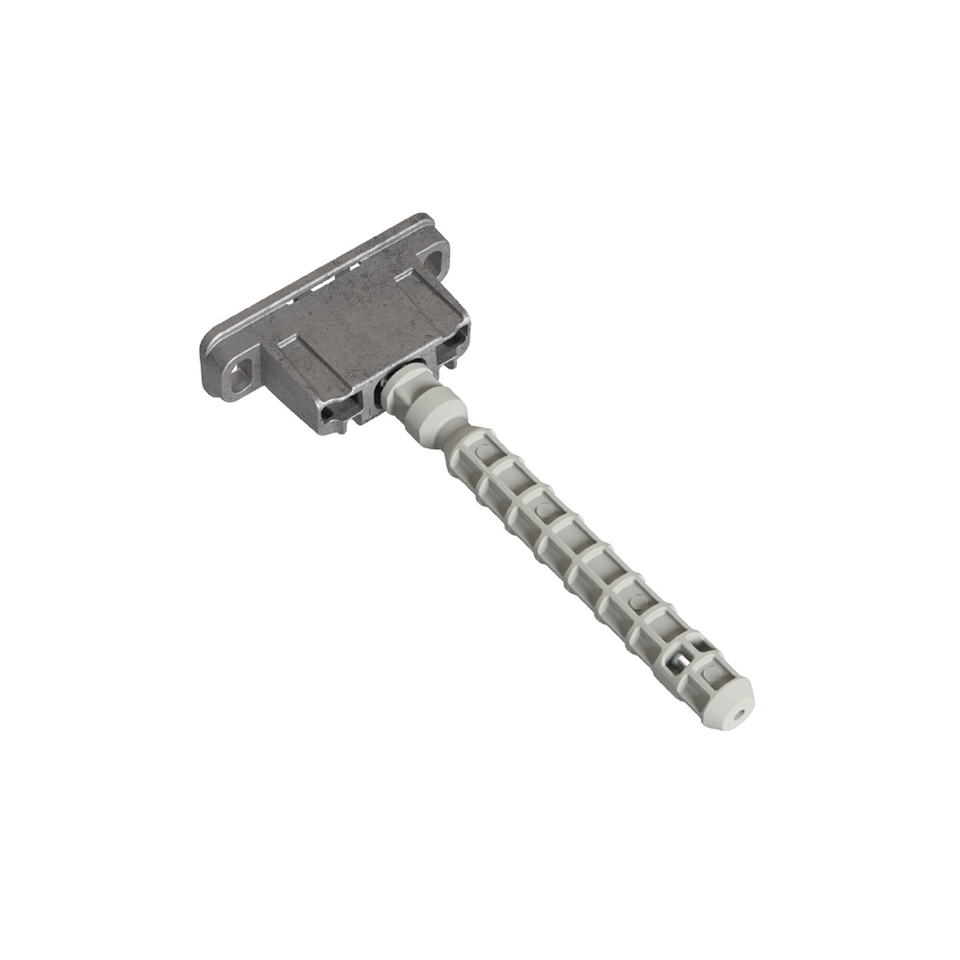

IF-Triade For the invisible shelf holder

Product range code 507078
Novelty
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Base price per pcs
5,8707 EUR 7,1035 EUR incl. VAT
> S In stock
Buy
Brand
Italiana Ferramenta
Group code
10700104
Unit (piece)
pcs
Divisibility
1 pcs
Packaging
50 pcs
Description and parameters

Triade Pro is a newly developed series of hidden shelf supports.
The redesigned and technically improved Triade Pro is characterized by high load-bearing capacity and smooth adjustment.

Load-bearing capacity of a pair at a shelf depth of 300mm = 30kg.

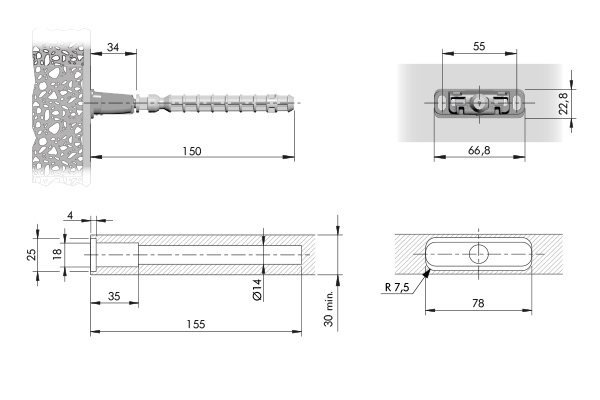

Enables three-way adjustment - vertical, lateral and tilt adjustment. Wall mounting using 2 dowels 8 mm dia. and 2 screws, drilling spacing 55 mm. Spindle diameter 14 mm, spindle length 116 mm, total length 150 mm. Minimum shelf thickness 25mm. In the case of using a shelf with a thickness of 25-30 mm, the "collar" of the holder remains unmilled - 4 mm. In the case of using a shelf of 30 mm or more, it is also possible to mill this "collar".


VERY IMPORTANT
The brackets must always be mounted with the inscription "TOP- ALTO" up. For easier assembly, you can order a complete set of drill fixtures - 405882 IF-complete set of drill fixtures for Triade Mini, Triade and Triade Maxi.

Skladem od 05/2024

Related documents

Assembly instructions
