K-BBP File cabinet type R3 for width 762 mm/390 mm, height 1076 mm with damping
Product range code
283884
Set
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
The set does not contain a ROSETTE (code L00066 can be used) or a CYLINDRICAL INSERT!

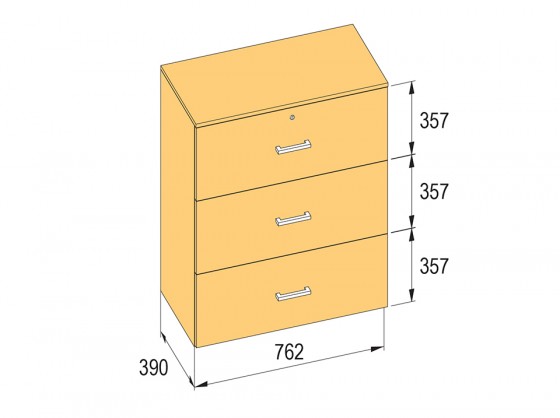

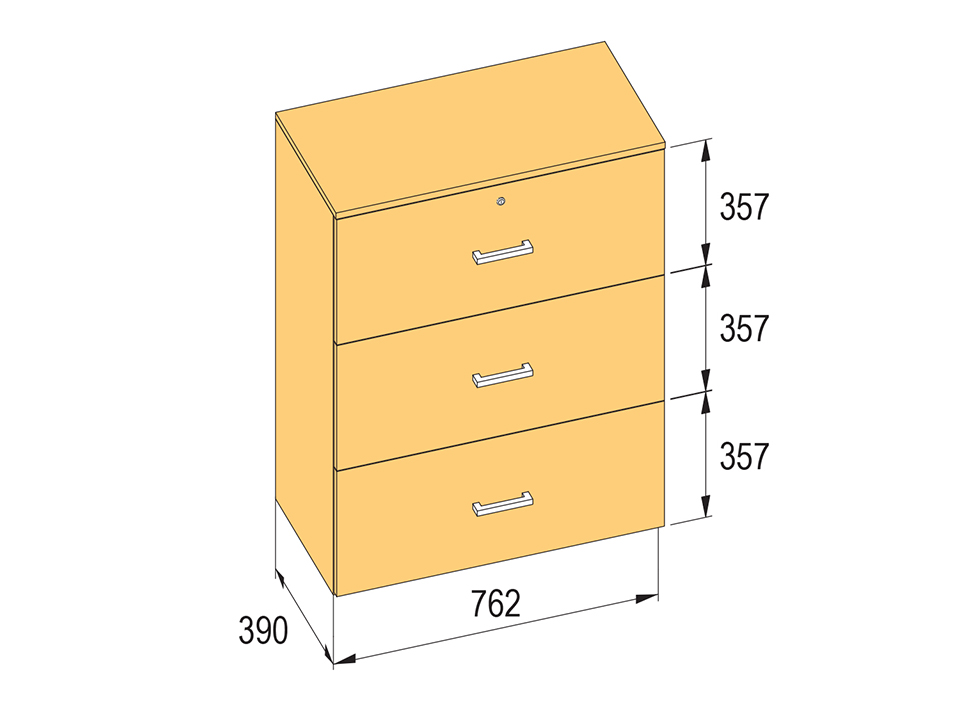

Filing set TYPE R3 Soft -3 x filing drawer for the internal width of the filing cabinet 762 mm / 390 mm with a front height of 357 mm with damping.
Related documents
Technical description Technical description Technical description Technical descriptionParameters
| Parameter | Value |
|---|---|
| Damping | Yes |
| Depth of container (mm) | 390 |
| Height of container (mm) | 1,076 |
| Number of sockets | 3 |
| Pen tray | No |
| Type of slide container | Full extension slide |
| Type of socket | Metallic |
| Width of container (mm) | 762 |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
LEHMANN cylinder lock 292 central for cabinets | 180983 | 1 pcs | 4,8324 EUR |
|
BBP Cabinet metal frame for suspension files inner width 762 mm/390 mm | 153811 | 3 pcs | 50,3792 EUR |
|
BBP Lengthwise dividing for hanging registers 400 mm | 153815 | 3 pcs | 4,6765 EUR |
|
BBP Front clamp for cabinet drawer and registers | 153816 | 6 pcs | 2,2028 EUR |
|
LEHMANN Rod SVS3 Type Ha (0 + 3 length 886 mm, right) | 176243 | 1 pcs | 10,7151 EUR |
|
LEHMANN Rod SVS3 Type Ha (0 + 3 length 886 mm, left) | 176244 | 1 pcs | 10,7151 EUR |
|
LEHMANN Wheelbase lock rod guide | L00031 | 2 pcs | 1,0113 EUR |
|
LEHMANN Lock rod 292 for files with an inner width of 762 mm | 181173 | 2 pcs | 2,5655 EUR |
|
BBP Full extension slide with tightening and damping left 60 kg 390 mm | 503412 | 3 pcs | 19,3665 EUR |
|
BBP Full extension with adjustment and damping right 60 kg 390 mm | 503413 | 3 pcs | 19,3665 EUR |
