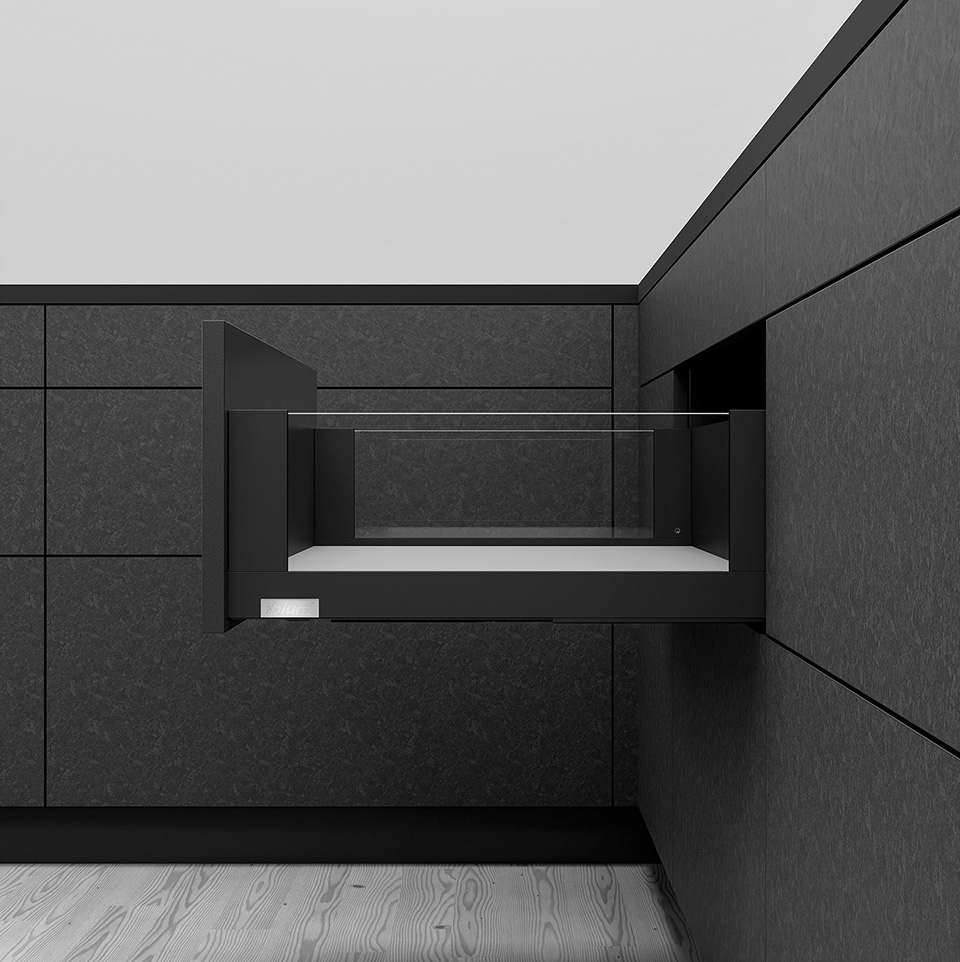

K-BLUM Legrabox C Free 450mm/70 kg, Tip-on, karbon black CS-M, internal, glass
Product range code
499276
Novelty
Set
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Kit includes fittings for assembling one drawer with handleless Tip-on opening, including the corresponding front fittings (screw / Expando / inner drawer).
It is recommended, for KB > 600mm necessary, to add synchronization: pinion set (227606) + shaft (227607). The length of the shaft is 1160mm, shortening LW-229mm. Without shortening, it is suitable for an external cabinet width of up to 1400mm.
Internal drawers must be supplemented with a front plate (shortening LW-126mm) without a groove (for drawers with reling) or with a groove (for drawers with glass) and, if necessary, a gripping element: cross reling (shortening LW-90mm), low glass (10 x 70 x LW-80) or high glass (10 x 138 x LW-80).
CS-M karbon black color.
Parameters
| Parameter | Value |
|---|---|
| Attached front fittings | Inner |
| Colour | Black |
| Headroom of drawer (mm) | 191 |
| Length (mm) | 450 |
| Load capacity (kg) | 70 |
| Movement of extended drawer | Handleless |
| Sidewall height (mm) | 177 |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
BLUM 753.4501T slide Legrabox 450mm/70kg Tip-on | 227428 | 1 pair | 44,7247 EUR |
|
BLUM ZB7C000S back fixings bracket Legrabox C karbon black CS-M | 491353 | 1 pair | 1,8866 EUR |
|
BLUM ZI7.2CS0 front bracket Legrabox C karbon black CS-M | 491357 | 1 set | 22,8958 EUR |
|
BLUM 780C4502S sidewall Legrabox Free 450mm karbon black CS-M | 491345 | 1 pair | 38,0125 EUR |
|
BLUM ZE7S338G design element - side Legrabox Free 450mm | 257253 | 1 pair | 27,2434 EUR |
