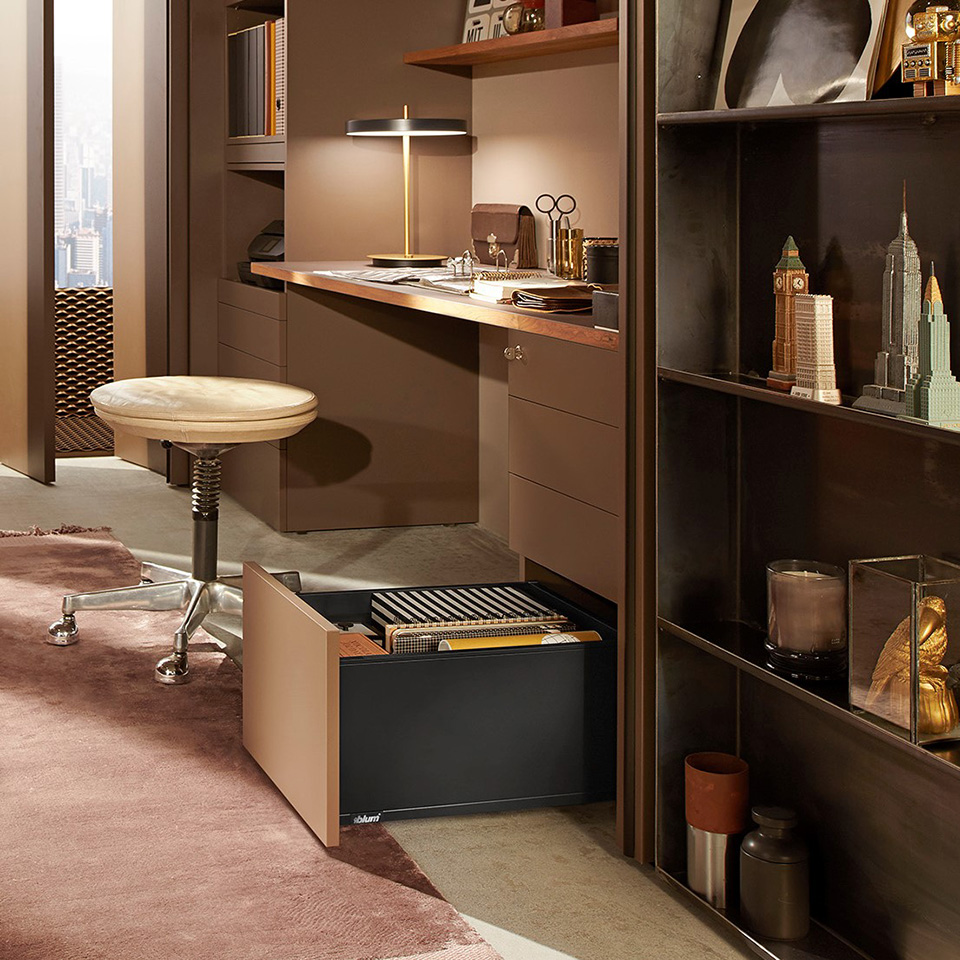

K-BLUM Legrabox F 500mm/70 kg, Tip-on, karbon black CS-M, screw
Kit includes fittings for assembling one drawer with handleless Tip-on opening, including the corresponding front fittings (screw / Expando / inner drawer).
It is recommended, for KB > 600mm necessary, to add synchronization: pinion set (227606) + shaft (227607). The length of the shaft is 1160mm, shortening LW-229mm. Without shortening, it is suitable for an external cabinet width of up to 1400mm.
Internal drawers must be supplemented with a front plate (shortening LW-126mm) without a groove (for drawers with reling) or with a groove (for drawers with glass) and, if necessary, a gripping element: cross reling (shortening LW-90mm), low glass (10 x 70 x LW-80) or high glass (10 x 138 x LW-80).
CS-M karbon black color.
Parameters
Parameter | Value |
---|---|
Attached front fittings | For screw |
Colour | Black |
Headroom of drawer (mm) | 257 |
Length (mm) | 500 |
Load capacity (kg) | 70 |
Movement of extended drawer | Handleless |
Sidewall height (mm) | 241 |
Composition of the set
Title | Code | Quantity in set | Price excluding VAT | |
---|---|---|---|---|
BLUM 753.5001T slide Legrabox 500mm/70kg Tip-on | 227429 | 1 pair | 45,0715 EUR | |
BLUM 770F5002S slide Legrabox F 500mm karbon black CS-M | 491339 | 1 pair | 62,088 EUR | |
BLUM ZF7M7002 front bracket Legrabox M screw | 227543 | 6 pcs | 0,3152 EUR | |
BLUM ZB7F000S back fixings bracket Legrabox F karbon black CS-M | 491354 | 1 pair | 3,9433 EUR |
