K-BLUM Legrabox F 600 mm/40 kg, Blumotion/TOB, white SW-M, expando

Product range code 255519
Set

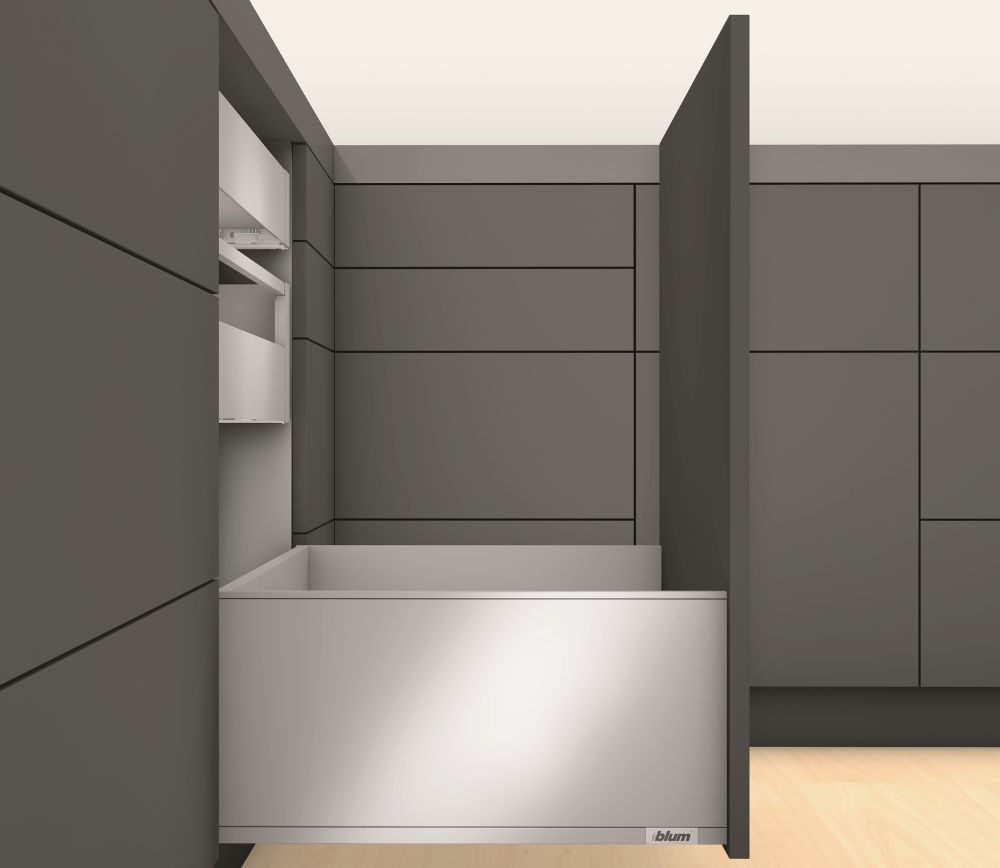

Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Base price per set
110,5109 EUR 133,7182 EUR incl. VAT
> S In stock
Buy
Brand
Blum
Group code
1020050301
Unit (piece)
set
Divisibility
1 set
Packaging
1 set
Description and parameters

The set includes fittings for the assembly of one drawer with integrated Blumotion damping, including the corresponding front fittings (screw / Expando / inner drawer). See set name for nominal length, system height, sidewall design, weight capacity and colour.

In case of a requirement for a Tip-on Blumotion (TOB) handleless opening, the corresponding TOB modules must be added according to the nominal length of the drawer and the total weight of the drawer with contents:
284456 ... S0 ... 270-300mm slides 40kg, total weight up to 10kg
275343 ... S1 ... 270-300mm slides 40kg, total weight 10-20kg
275344 ... L1 ... 350-600mm slides 40kg, total weight up to 20kg
275345 ... L3 ... 350-600mm slides 40kg, total weight 15-40kg
275347 ... L5 ... 450-650mm slides 70kg, total weight 35-70kg
For cabinet KB>600mm the synchronisation shaft 282277 must be used, but its use is recommended even for narrower cabinets. The length of the shaft is 1125mm and without cutting it can be used on cabinet of external width up to 1400mm. The cutting for conventional TOB modules is LW-247mm, the cutting for undercut TOB modules is LW-267mm. The pinions for connecting the shaft to the modules are already included in the TOB modules package. For narrow cabinets (LW = 245-293mm) a special one-piece square synchronization shaft 293824 is designed, which has a cutting of LW-221mm. This shaft installs directly into the TOB modules and synchronisation adapters are therefore not used.

For the internal drawer sets, the front face cross elements are not included, they must be ordered separately and cut according to the clear internal width of the cabinet. These are the front panel (cut LW-126mm) without groove (for drawers with front reling) or with groove (for drawers with front glass) and, if necessary, the gripping element: front reling (cut LW-90mm), low front glass (10 x 70 x LW-80) or high front glass (10 x 138 x LW-80).

Related documents

Documentation

Parameters

Parameter Value
Attached front fittings For dowel
Colour White
Headroom of drawer (mm) 282
Length (mm) 600
Load capacity (kg) 40
Movement of extended drawer With damping
Sidewall height (mm) 241
Related product range (accessories) (1)
Title Code Availability Divisibility/
packaging
Basic price per unit
StrongFix Screw PZ 3,5x16 with countersunk head yellow zinc PZ2 StrongFix Screw PZ 3,5x16 with countersunk head yellow zinc PZ2 11109
> S In stock
1,000 pcs / 1,000 pcs
0,0082 EUR
/ pcs
0,0099 EUR incl. VAT
Code
11109
more less
