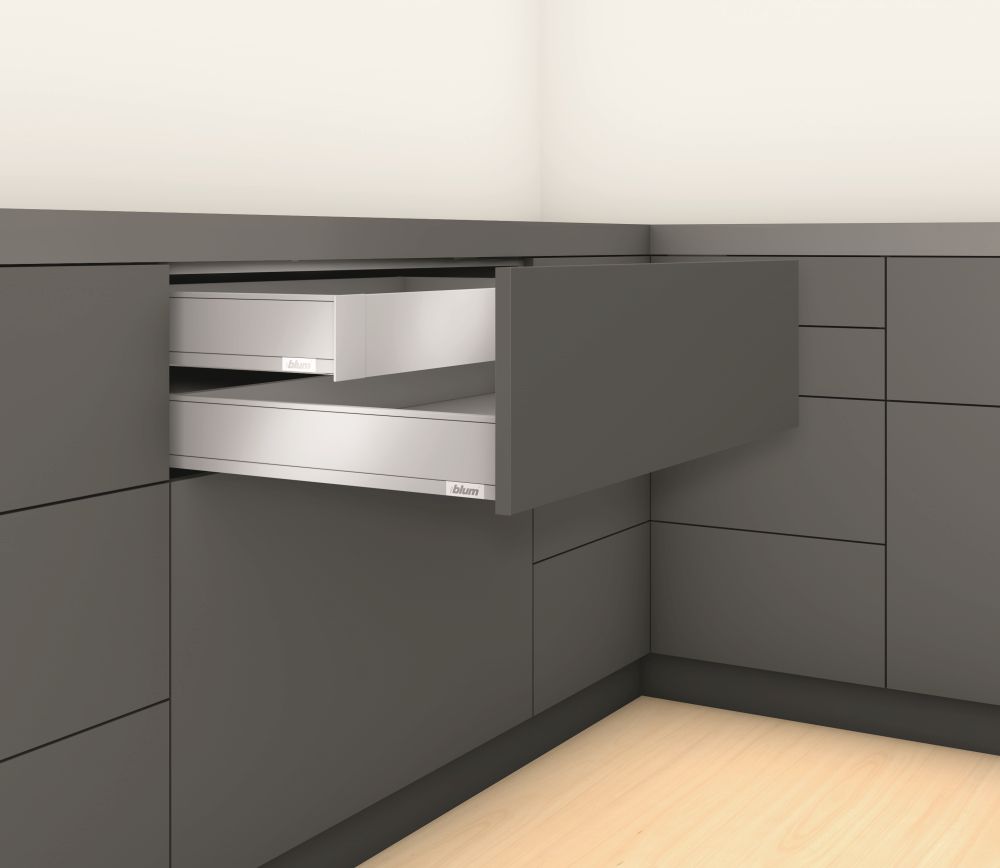

K-BLUM Legrabox M 450mm/70 kg, Tip-on, karbon black CS-M, screw
Product range code
499012
Novelty
Set
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Kit includes fittings for assembling one drawer with handleless Tip-on opening, including the corresponding front fittings (screw / Expando / inner drawer).
It is recommended, for KB > 600mm necessary, to add synchronization: pinion set (227606) + shaft (227607). The length of the shaft is 1160mm, shortening LW-229mm. Without shortening, it is suitable for an external cabinet width of up to 1400mm.
Internal drawers must be supplemented with a front plate (shortening LW-126mm) without a groove (for drawers with reling) or with a groove (for drawers with glass) and, if necessary, a gripping element: cross reling (shortening LW-90mm), low glass (10 x 70 x LW-80) or high glass (10 x 138 x LW-80).
CS-M karbon black color.
Parameters
| Parameter | Value |
|---|---|
| Attached front fittings | For screw |
| Colour | Black |
| Headroom of drawer (mm) | 106 |
| Length (mm) | 450 |
| Load capacity (kg) | 70 |
| Movement of extended drawer | Handleless |
| Sidewall height (mm) | 90.5 |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
BLUM 753.4501T slide Legrabox 450mm/70kg Tip-on | 227428 | 1 pair | 44,7247 EUR |
|
BLUM 770M4502S sidewall Legrabox M 450mm karbon black CS-M | 491316 | 1 pair | 23,574 EUR |
|
BLUM ZF7M7002 front bracket Legrabox M screw | 227543 | 2 pcs | 0,3152 EUR |
|
BLUM ZB7M000S back fixings bracket Legrabox M karbon black CS-M | 491351 | 1 pair | 1,4161 EUR |
