K-BLUM Merivobox E 550 mm, 70 kg, bílá, vnitřní, reling
Product range code
497801
Set

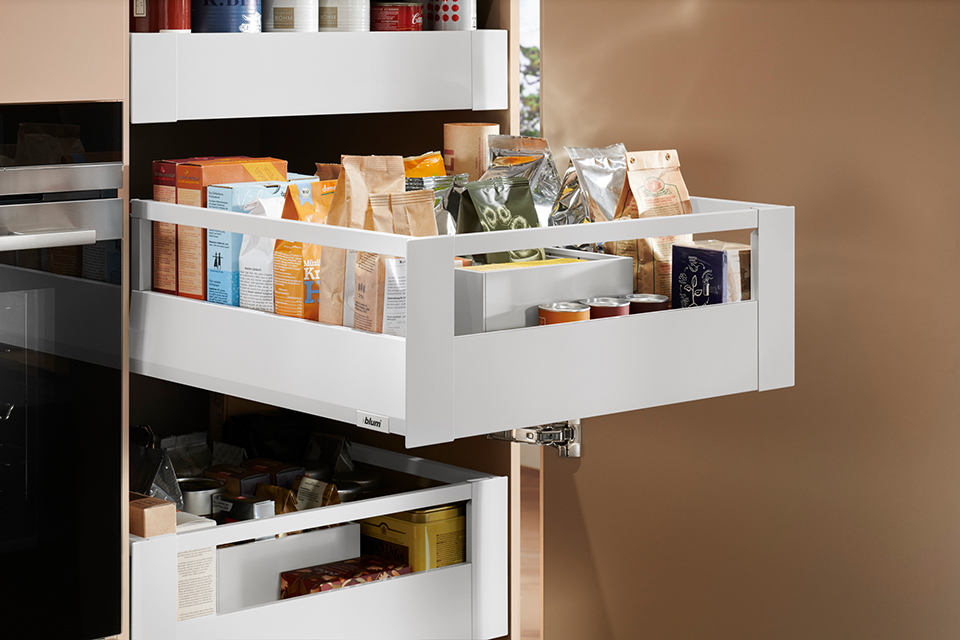

Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
The set includes all the fittings to assemble one drawer - drawer slides, side panels, back brackets and front fittings for the inner drawer.
It is necessary to purchase and cut the front cross elements to the correct length L according to the clear width LW of the cabinet:
drawers E with front reling:
- front piece without groove ZV4.1042M (L=LW-126mm)
- cross reling ZR4.1059U (L=LW-111mm)
Parameters
| Parameter | Value |
|---|---|
| Attached front fittings | Inner |
| Colour | White |
| Headroom of drawer (mm) | 207 |
| Length (mm) | 550 |
| Load capacity (kg) | 70 |
| Movement of extended drawer | With damping or handleless with damping |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
BLUM 470M5502S sidewall MERIVOBOX M 550 mm, white, SW-M | 481582 | 1 pair | 25,0221 EUR |
|
BLUM 453.5501B slide MERIVOBOX TOB, 70kg, 550mm, L+R | 481623 | 1 pair | 33,9462 EUR |
|
BLUM ZB4E000S back holder MERIVOBOX E, white, SW-M | 481639 | 1 pair | 2,5762 EUR |
|
BLUM ZR4.550RS.E longitudinal railing MERIVOBOX, 550, white, SW-M | 481666 | 1 pair | 7,5033 EUR |
|
BLUM ZI4.2ES1 front bracket inner with railing MERIVOBOX E, white, SW-M | 481715 | 1 set | 18,3296 EUR |
