K-BLUM Merivobox E Boxcover 600 mm, 70 kg, bílá, vnitřní, sklo
Product range code
497857
Set

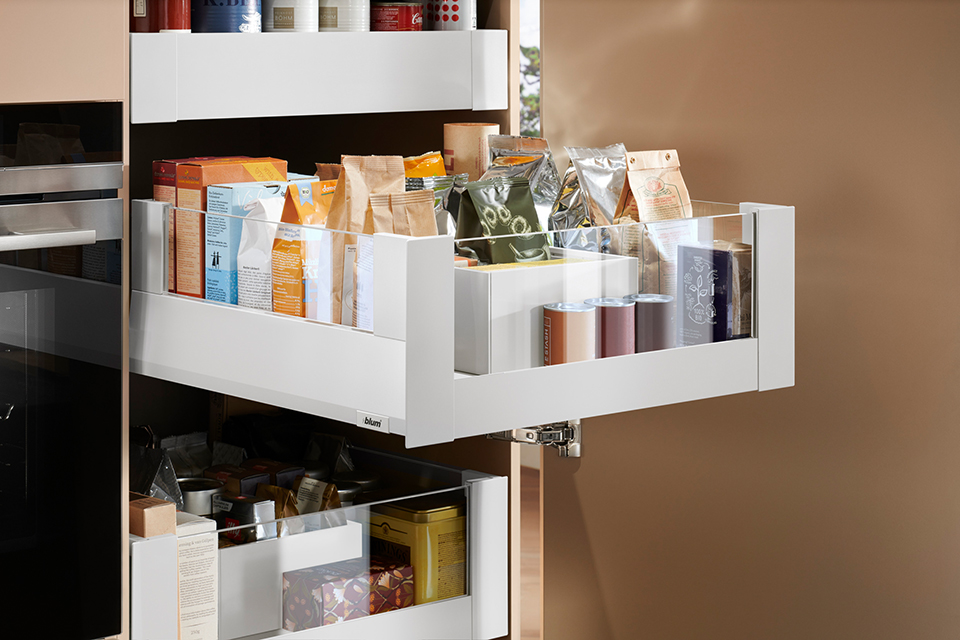

Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
The set includes all the fittings to assemble one drawer - drawer slides, side panels, back brackets and front fittings for the inner drawer.
It is necessary to purchase and cut the front cross elements to the correct length L according to the clear width LW of the cabinet:
drawers E with frontal insert element:
- front piece with groove ZV4.1042NN (L=LW-126mm)
- insert element made of 8mm thick glass (L=LW-104mm) ... low (75mm) / high (142,5mm)
Parameters
| Parameter | Value |
|---|---|
| Attached front fittings | Inner |
| Colour | White |
| Headroom of drawer (mm) | 207 |
| Length (mm) | 600 |
| Load capacity (kg) | 70 |
| Movement of extended drawer | With damping or handleless with damping |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
BLUM 470M6002S sidewall MERIVOBOX M 600 mm, white, SW-M | 481585 | 1 pair | 29,162 EUR |
|
BLUM 453.6001B slide MERIVOBOX TOB, 70kg, 600mm, L+R | 481624 | 1 pair | 40,0202 EUR |
|
BLUM ZB4E000S back holder MERIVOBOX E, white, SW-M | 481639 | 1 pair | 2,5762 EUR |
|
BLUM ZL4M00808 boxcover MERIVOBOX, E, white, SW-M | 481696 | 1 pair | 18,7584 EUR |
|
BLUM ZE4M510G side glass MERIVOBOX clear 600 | 481700 | 1 pair | 17,5206 EUR |
|
BLUM ZI4.4ES1 front bracket inner with plug-in element MERIVOBOX E, white, SW-M | 481718 | 1 set | 17,4761 EUR |
