K-BLUM Merivobox K 550 mm, 70 kg, Indium šedá, vnitřní
Product range code
497785
Set

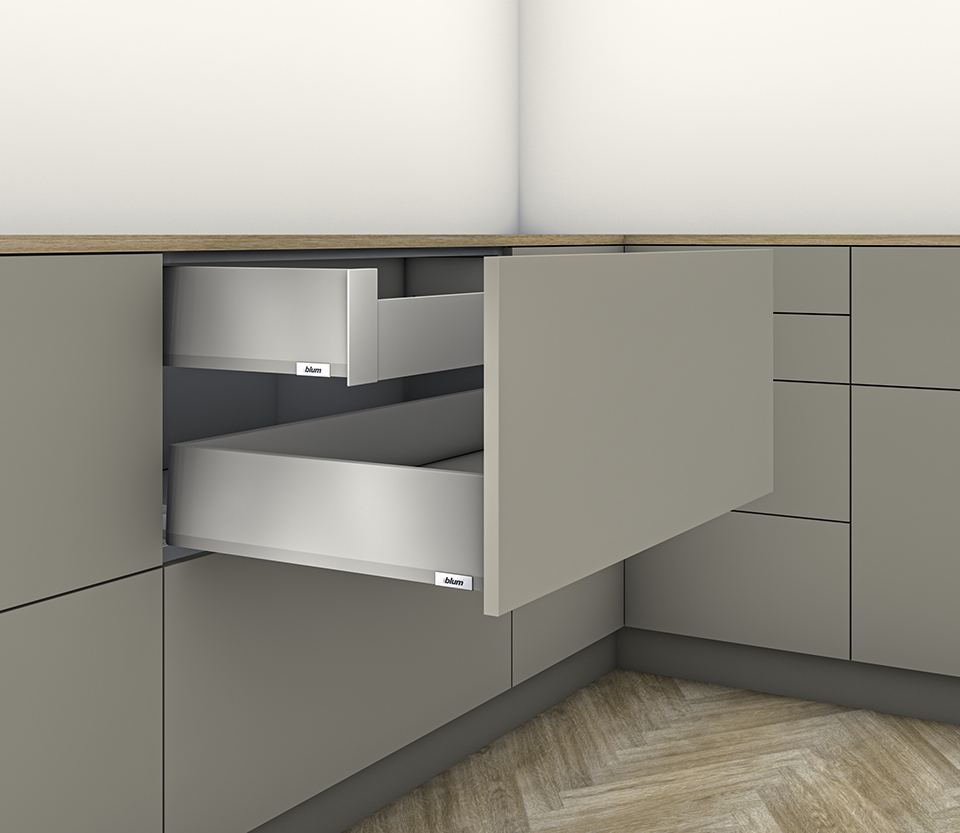

Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
The set includes all the fittings to assemble one drawer - drawer slides, side panels, back brackets and front fittings for the inner drawer.
It is necessary to purchase and cut the front cross elements to the correct length L according to the clear width LW of the cabinet:
drawers K:
- front piece without groove ZV4.1042M (L=LW-126mm)
Parameters
| Parameter | Value |
|---|---|
| Attached front fittings | Inner |
| Colour | Indium gray |
| Headroom of drawer (mm) | 144 |
| Length (mm) | 550 |
| Load capacity (kg) | 70 |
| Movement of extended drawer | With damping or handleless with damping |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
BLUM 470K5502S sidewall MERIVOBOX K 550 mm, grey, IG-M | 481601 | 1 pair | 31,7078 EUR |
|
BLUM 453.5501B slide MERIVOBOX TOB, 70kg, 550mm, L+R | 481623 | 1 pair | 33,9462 EUR |
|
BLUM ZB4K000S back holder MERIVOBOX K, grey, IG-M | 481634 | 1 pair | 1,5055 EUR |
|
BLUM ZI4.1KS1 front bracket inner MERIVOBOX K, grey, IG-M | 481710 | 1 set | 14,7951 EUR |
