K-BLUM set Merivobox 450mm/70kg Orion grey OG-M screw
Set for production of 20pcs Merivobox drawers with soft close. According to the purchased accessories (see below) the drawers of height M and height E can be combined.

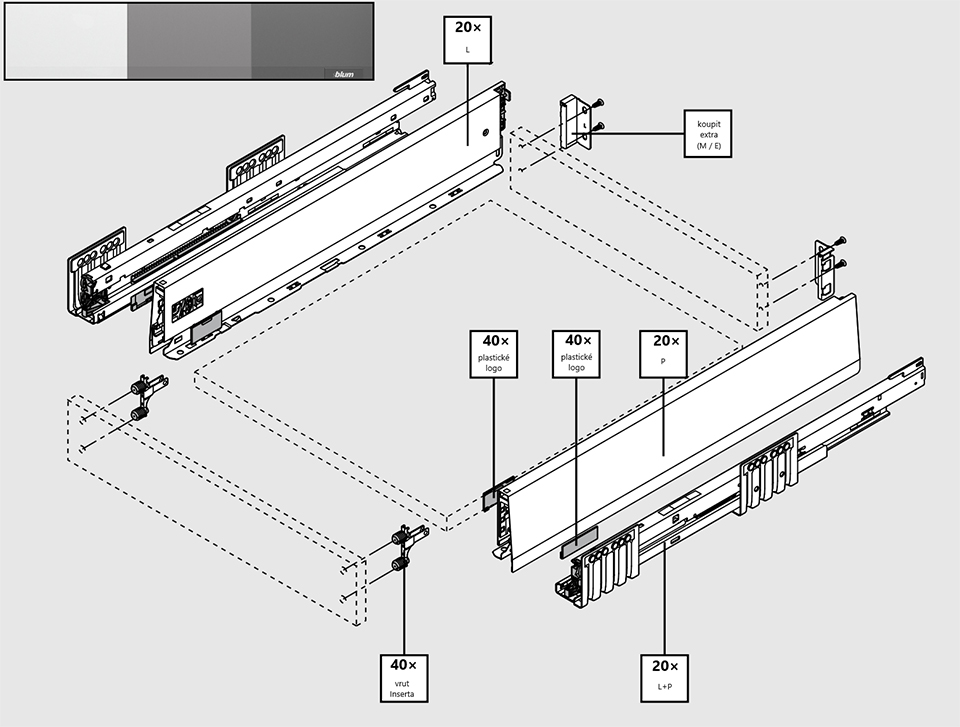

Set contents:
- 20x M left side panel
- 20x M right side panel
- 20x soft-close/TOB slides left + right (40kg or 70kg)
- 40x front bracket (screw or Inserta)
- 40x inner cap
- 40x outer cap with BLUM logo
M or E back brackets must be purchased depending on the drawer height requirement and in the case of E height also side extension - front fixing bracket on top, longitudinal reling, full boxcap or glass boxcover.
In case of requirement for handleless opening, TOB modules L1, L3 or L5 (for 70kg extension) and synchronisation shaft 282277 must be purchased.
For the internal division of Merivobox drawers, accessories from the Ambia-line range are available.
Advantages of the Merivobox system include, among others, the identical width of the bottom and back panels (less waste in production) and the advanced design of the slides guaranteeing that the gaps between the drawer fronts remain aligned.
For nominal drawer length, drawer colour, drawer load capacity and type of face clips, see product name.
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
BLUM ABD.1000.BT outer cover cap MERIVOBOX, stamped logo BLUM, dark grey OG-M | 481611 | 40 pcs | 0,1247 EUR |
|
BLUM ZA4.5400.BT inner cover cap MERIVOBOX, stamped logo BLUM, dark grey, OG-M | 481608 | 40 pcs | 0,1382 EUR |
|
BLUM 470M4502S sidewall MERIVOBOX M 450 mm, R, dark grey, OG-M | 481566 | 20 pcs | 9,1653 EUR |
|
BLUM 470M4502S sidewall MERIVOBOX M 450 mm, L, dark grey, OG-M | 481565 | 20 pcs | 9,1653 EUR |
|
BLUM ZF4.1002 front bracket MERIVOBOX screw | 481701 | 40 pcs | 0,3546 EUR |
|
BLUM 453.4501B slide MERIVOBOX TOB, 70kg, 450mm, L+R | 481621 | 20 pair | 31,2809 EUR |
