K-HETTICH ArciTech, front, anthracite, 400/126/282, 40kg, SiSy
Product range code
354657
Set

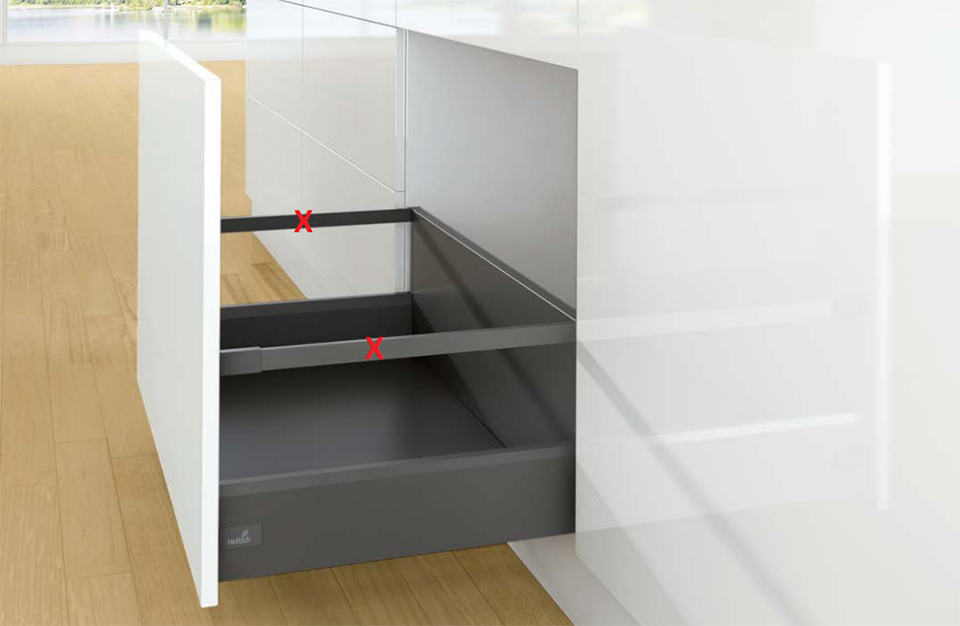

Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Fittings for ArciTech front drawer in anthracite color, drawer depth 400mm, side height 126mm, total height 282mm, drawer load capacity 40kg, SiSy damping. The set includes 1 pair of side panels, 2 pcs of front hardware (dowel), 2 pcs of Hettich covers, 2 pcs of back holders 282 mm. The drawer must be supplemented with rails, or TopSide, or DesignSide. For handle-free P2OS opening, it is necessary to add the correct P2O module, if the drawer is wider than 600mm, you need to add a synchronization rod (318279) shortening = inner width of the body-2xEB-207.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Attached front fittings | For dowel |
| Colour | Anthracite |
| Headroom of drawer (mm) | 282 |
| Length (mm) | 400 |
| Load capacity (kg) | 40 |
| Movement of extended drawer | With damping or handleless with damping |
| Sidewall height (mm) | 126 |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
HETTICH 9150495 ArciTech flexi set 126/400 mm anthracite | 235071 | 1 set | 33,1598 EUR |
|
HETTICH 9239279 Actro 40kg full extension 400 mm tl18 mm, SiSy, L | 352614 | 1 pcs | 17,4946 EUR |
|
HETTICH 9239280 Actro 40kg full extension 400 mm tl18 mm, SiSy, P | 352615 | 1 pcs | 17,4946 EUR |
|
HETTICH 9121871 Arcitech back clamp 282 L anthracite | 225943 | 1 pcs | 8,4871 EUR |
|
HETTICH 9121872 Arcitech back clip 282 P anthracite | 225944 | 1 pcs | 8,4871 EUR |
