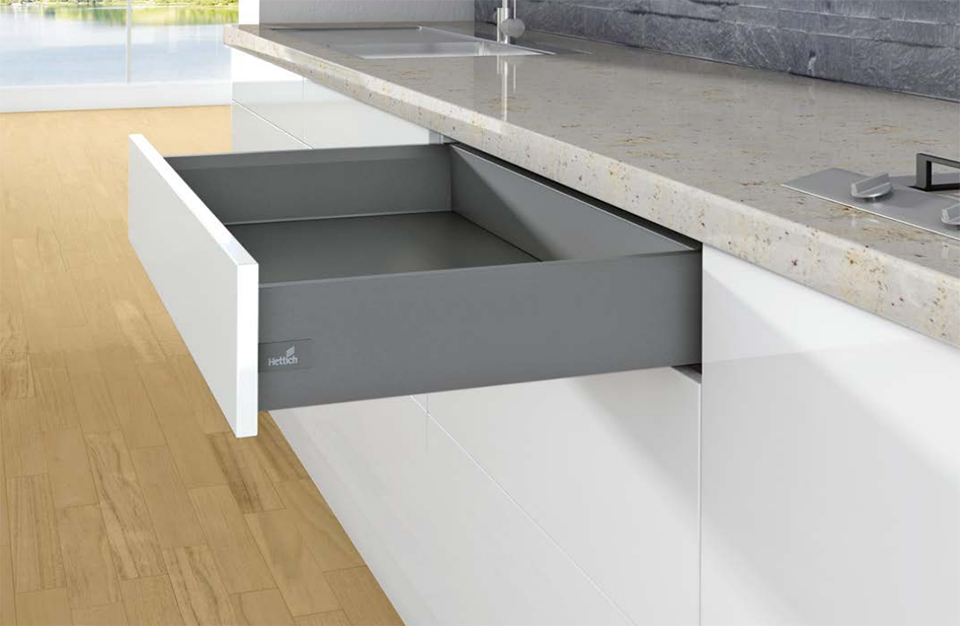

K-HETTICH Arcitech, front, anthracite, 500/126, 40kg, SiSy
Product range code
354693
Set
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Fittings for ArciTech front drawer in anthracite color, drawer depth 500mm, side height 126mm, drawer load capacity 40kg, SiSy damping. The set includes 1 pair of side panels, 2 pcs of front fittings (dowel), 2 pcs of Hettich covers, 2 pcs of back holders. For handle-free P2OS opening, it is necessary to add the correct P2O module, if the drawer is wider than 600mm, you need to add a synchronization rod (318279) shortening = inner width of the body-2xEB-207.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Attached front fittings | For dowel |
| Colour | Anthracite |
| Headroom of drawer (mm) | 126 |
| Length (mm) | 500 |
| Load capacity (kg) | 40 |
| Movement of extended drawer | With damping or handleless with damping |
| Sidewall height (mm) | 126 |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
HETTICH 9239288 Actro 40kg full extension slide 500mm tl18mm silent system R | 352627 | 1 pcs | 18,1549 EUR |
|
HETTICH 9150497 ArciTech flexi set 126/500 mm anthracite | 235077 | 1 set | 33,8173 EUR |
|
HETTICH 9239287 Actro 40kg full extension slide 500mm tl18mm silent system L | 352626 | 1 pcs | 18,1549 EUR |
|
HETTICH 9121839 ArciTech back clamp 126 mm anthracite L | 225919 | 1 pcs | 3,9703 EUR |
|
HETTICH 9121840 ArciTech back clamp 126 mm anthracite P | 225920 | 1 pcs | 3,9703 EUR |
