K-HETTICH ArciTech, front, silver, 270/94/218, 40kg, SiSy
Product range code
354896
Set

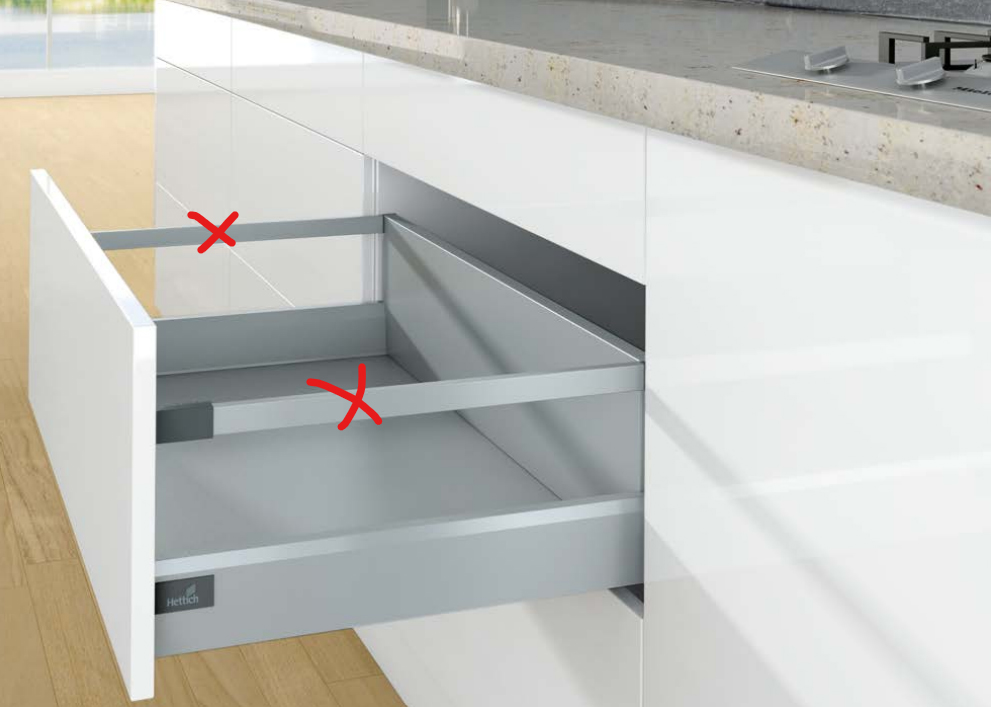

Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Fittings for ArciTech front drawer in silver color, drawer depth 270mm, side height 94mm, total height 218mm, drawer load capacity 40kg, SiSy damping. The set includes 1 pair of side panels, 2 pcs of front hardware (dowel), 2 pcs of Hettich covers, 2 pcs of back holders 218 mm. The drawer must be supplemented with rails, or TopSide, or DesignSide. For handle-free P2OS opening, it is necessary to add the correct P2O module, if the drawer is wider than 600mm, you need to add a synchronization rod (318279) shortening = inner width of the body-2xEB-207.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Attached front fittings | For dowel |
| Colour | Silver |
| Headroom of drawer (mm) | 218 |
| Length (mm) | 270 |
| Load capacity (kg) | 40 |
| Movement of extended drawer | With damping or handleless with damping |
| Sidewall height (mm) | 94 |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
HETTICH 9150613 ArciTech flexi set 94/270 mm silver | 235043 | 1 set | 26,8305 EUR |
|
HETTICH 9240887 Actro 40kg 270 mm tl18 mm SiSy L+P | 352601 | 1 pair | 37,6736 EUR |
|
HETTICH 9121851 Arcitech back clip 218 L silver | 225927 | 1 pcs | 6,0778 EUR |
|
HETTICH 9121852 Arcitech back clip 218 P silver | 225928 | 1 pcs | 6,0778 EUR |
