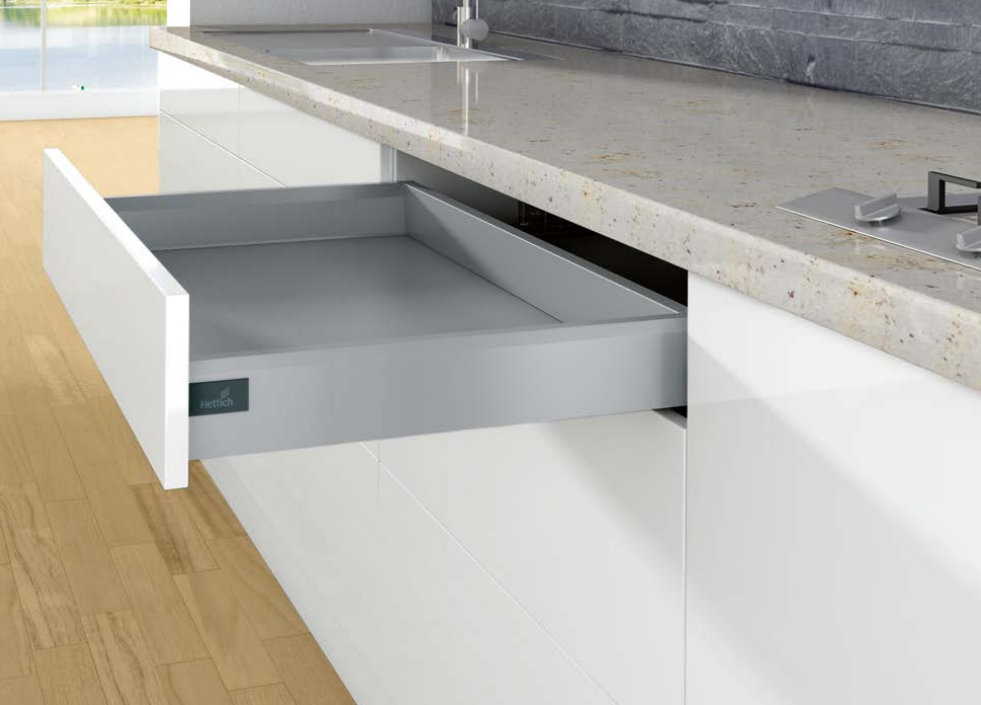

K-HETTICH Arcitech, front, silver, 500/94, 60kg, SiSy
Product range code
354979
Set
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Fittings for front drawer ArciTech in silver color, drawer depth 500mm, side height 94mm, drawer load capacity 60kg, SiSy damping. The set includes 1 pair of side panels, 2 pcs of front fittings (dowel), 2 pcs of Hettich covers, 2 pcs of back holders. For handle-free P2OS opening, it is necessary to add the correct P2O module, if the drawer is wider than 600mm, you need to add a synchronization rod (318279) shortening = inner width of the body-2xEB-207.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Attached front fittings | For dowel |
| Colour | Silver |
| Headroom of drawer (mm) | 94 |
| Length (mm) | 500 |
| Load capacity (kg) | 60 |
| Movement of extended drawer | With damping or handleless with damping |
| Sidewall height (mm) | 94 |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
HETTICH 9150619 Arcitech flexi set 500/94 silver | 235058 | 1 set | 28,3416 EUR |
|
HETTICH 9240898 Actro 70kg 500 mm tl18 mm SiSy L+P | 352631 | 1 pair | 44,5611 EUR |
|
HETTICH 9121827 Arcitech back clip 94 L silver | 225909 | 1 pcs | 3,0118 EUR |
|
HETTICH 9121828 Arcitech back clip 94 P silver | 225910 | 1 pcs | 3,0118 EUR |
