K-HETTICH ArciTech, front, white, 270/94/250, 40kg, SiSy
Product range code
354335
Set

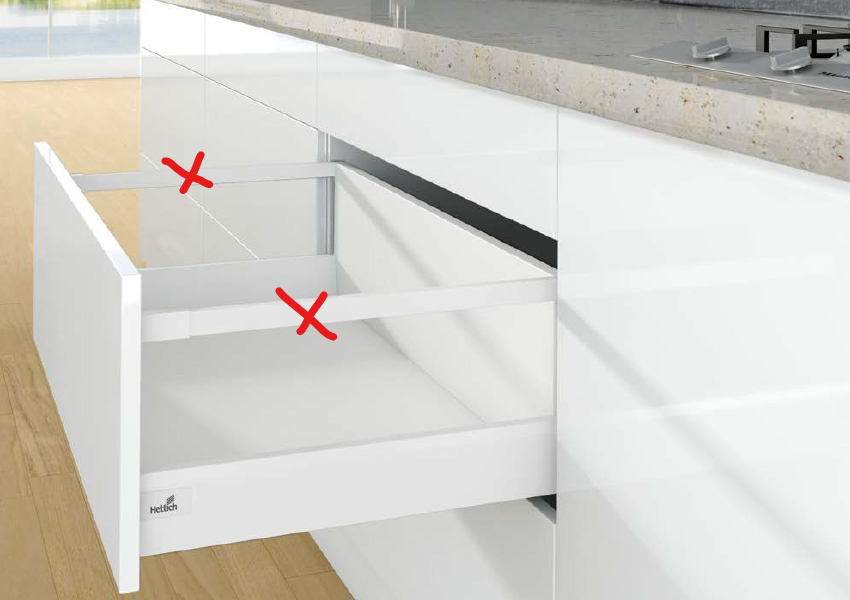

Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Fittings for ArciTech front drawer in white, drawer depth 270mm, side height 94mm, total height 250mm, drawer load capacity 40kg, SiSy damping. The set includes 1 pair of side panels, 2 pcs of front fitting (dowel), 2 pcs of Hettich covers, 2 pcs of back holders 250 mm. The drawer must be supplemented with rails, or TopSide, or DesignSide. For handle-free P2OS opening, it is necessary to add the correct P2O module, if the drawer is wider than 600mm, you need to add a synchronization rod (318279) shortening = inner width of the body-2xEB-207.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Attached front fittings | For dowel |
| Colour | White |
| Headroom of drawer (mm) | 250 |
| Length (mm) | 270 |
| Load capacity (kg) | 40 |
| Movement of extended drawer | With damping or handleless with damping |
| Sidewall height (mm) | 94 |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
HETTICH 9149261 ArciTech flexi set 94/270 mm white | 235133 | 1 set | 26,8305 EUR |
|
HETTICH 9240887 Actro 40kg 270 mm tl18 mm SiSy L+P | 352601 | 1 pair | 37,6736 EUR |
|
HETTICH 9121861 Arcitech back clamp 250 L white | 225935 | 1 pcs | 7,1729 EUR |
|
HETTICH 9121862 Arcitech back clip 250 P white | 225936 | 1 pcs | 7,1729 EUR |
