K-HETTICH ArciTech, front, white, 300/94, 10kg, SiSy
Product range code
354344
Set

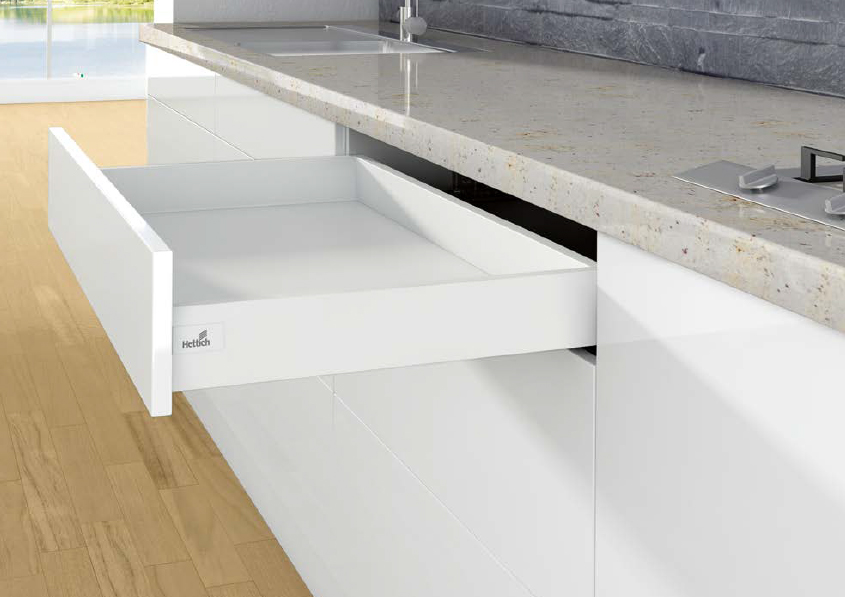

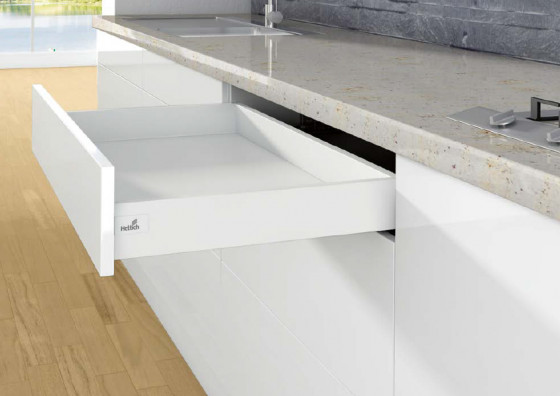

Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Fittings for front drawer ArciTech in white, drawer depth 300mm, side height 94mm, drawer load capacity 10kg, SiSy damping. The set includes 1 pair of side panels, 2 pcs of front fittings (dowel), 2 pcs of Hettich covers, 2 pcs of back holders. For handle-free P2OS opening, it is necessary to add the correct P2O module, if the drawer is wider than 600mm, you need to add a synchronization rod (318279) shortening = inner width of the body-2xEB-207.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Attached front fittings | For dowel |
| Colour | White |
| Headroom of drawer (mm) | 94 |
| Length (mm) | 300 |
| Load capacity (kg) | 10 |
| Movement of extended drawer | With damping or handleless with damping |
| Sidewall height (mm) | 94 |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
HETTICH 9149262 Arcitech flexi set 300/94 white | 235134 | 1 set | 27,0275 EUR |
|
HETTICH 9240885 Actro 10kg 300 mm tl18 mm SiSy L+P | 352604 | 1 pair | 38,0697 EUR |
|
HETTICH 9121829 Arcitech back clip 94 L white | 225911 | 1 pcs | 3,0118 EUR |
|
HETTICH 9121830 Arcitech back clip 94 P white | 225912 | 1 pcs | 3,0118 EUR |
