K-HETTICH ArciTech, front, white, 350/126/218, 40kg, SiSy
Product range code
354365
Set

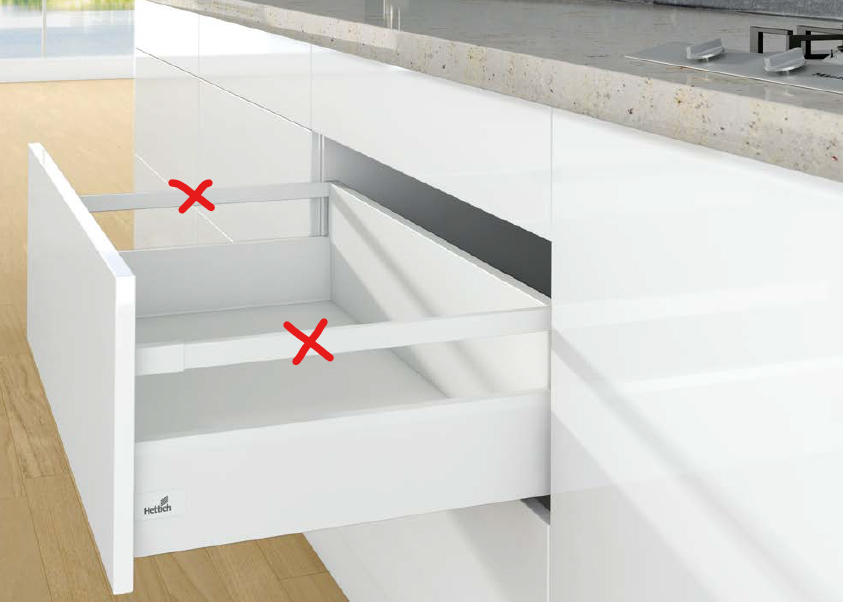

Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Fittings for ArciTech front drawer in white, drawer depth 350mm, side height 126mm, total height 218mm, drawer load capacity 40kg, SiSy damping. The set includes 1 pair of side panels, 2 pcs of front hardware (dowel), 2 pcs of Hettich covers, 2 pcs of back holders 218 mm. The drawer must be supplemented with rails, or TopSide, or DesignSide. For handle-free P2OS opening, it is necessary to add the correct P2O module, if the drawer is wider than 600mm, you need to add a synchronization rod (318279) shortening = inner width of the body-2xEB-207.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Attached front fittings | For dowel |
| Colour | White |
| Headroom of drawer (mm) | 218 |
| Length (mm) | 350 |
| Load capacity (kg) | 40 |
| Movement of extended drawer | With damping or handleless with damping |
| Sidewall height (mm) | 126 |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
HETTICH 9149273 ArciTech flexi set 126/350 mm white | 235143 | 1 set | 32,8317 EUR |
|
HETTICH 9239277 Actro 40kg full extension 350 mm tl18 mm, SiSy, L | 352611 | 1 pcs | 17,1645 EUR |
|
HETTICH 9239278 Actro 40kg full extension 350 mm tl18 mm, SiSy, P | 352612 | 1 pcs | 17,1645 EUR |
|
HETTICH 9121853 Arcitech back clip 218 L white | 225929 | 1 pcs | 6,0778 EUR |
|
HETTICH 9121854 Arcitech back clip 218 P white | 225930 | 1 pcs | 6,0778 EUR |
