K-HETTICH ArciTech, front, white, 550/94/282, 60kg, SiSy
Product range code
354452
Set

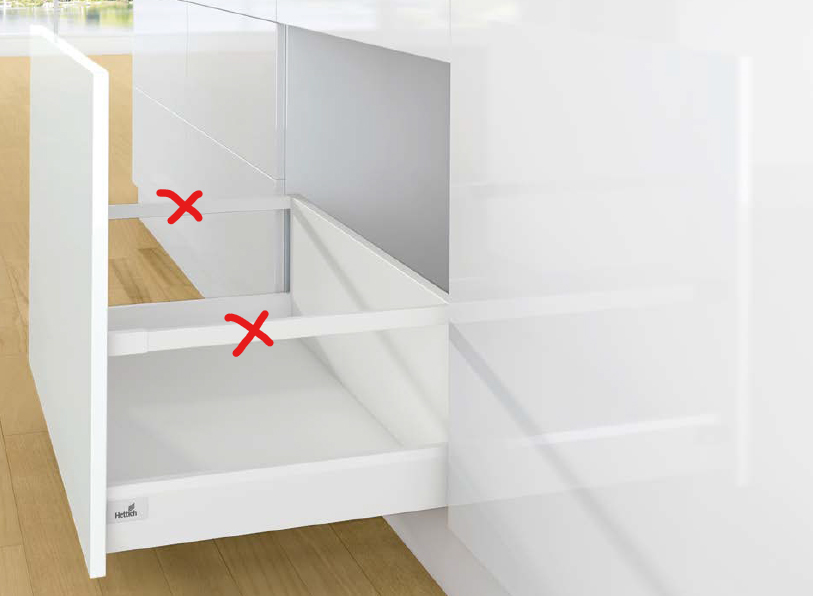

Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Fittings for ArciTech front drawer in white, drawer depth 550mm, side height 94mm, total height 282mm, drawer load capacity 60kg, SiSy damping. The set includes 1 pair of side panels, 2 pcs of front hardware (dowel), 2 pcs of Hettich covers, 2 pcs of back holders 282 mm. The drawer must be supplemented with rails, or TopSide, or DesignSide. For handle-free P2OS opening, it is necessary to add the correct P2O module, if the drawer is wider than 600mm, you need to add a synchronization rod (318279) shortening = inner width of the body-2xEB-207.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Attached front fittings | For dowel |
| Colour | White |
| Headroom of drawer (mm) | 282 |
| Length (mm) | 550 |
| Load capacity (kg) | 60 |
| Movement of extended drawer | With damping or handleless with damping |
| Sidewall height (mm) | 94 |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
HETTICH 9149268 Arcitech flexi set 550/94 white | 235139 | 1 set | 28,6703 EUR |
|
HETTICH 9240899 Actro 70kg 550 mm tl18 mm SiSy L+P | 352640 | 1 pair | 45,2219 EUR |
|
HETTICH 9121869 Arcitech back clip 282 L white | 225941 | 1 pcs | 8,4871 EUR |
|
HETTICH 9121870 Arcitech back clip 282 P white | 225942 | 1 pcs | 8,4871 EUR |
