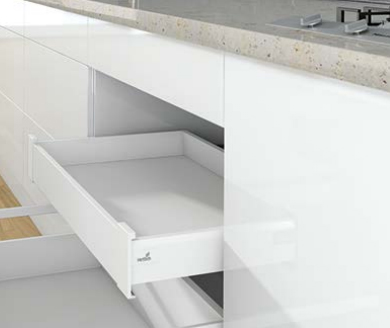

K-HETTICH Arcitech, indoor, white, 500/94, 60kg, SiSy
Product range code
354552
Set
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Fittings for ArciTech internal drawer in white, drawer depth 500mm, side height 94mm, drawer load capacity 60kg, SiSy damping. The set contains 1 pair of side panels, 2 pcs of front brackets (needs to add a front plate order no. 301001, height 70 mm, length 2000 mm, shortening = inner width of the body-2xEB-62), 2 pcs of Hettich covers, 2 pcs of back holders. For handle-free P2OS opening, it is necessary to add the correct P2O module, if the drawer is wider than 600mm, you need to add a synchronization rod (318279), shortening = inner width of the body-2xEB-207.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Attached front fittings | Inner |
| Colour | White |
| Headroom of drawer (mm) | 94 |
| Length (mm) | 500 |
| Load capacity (kg) | 60 |
| Movement of extended drawer | With damping or handleless with damping |
| Sidewall height (mm) | 94 |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
HETTICH 9149266 Arcitech flexi set 500/94 white | 235138 | 1 set | 28,3416 EUR |
|
HETTICH 9240898 Actro 70kg 500 mm tl18 mm SiSy L+P | 352631 | 1 pair | 44,5611 EUR |
|
HETTICH 9121829 Arcitech back clip 94 L white | 225911 | 1 pcs | 3,0118 EUR |
|
HETTICH 9121830 Arcitech back clip 94 P white | 225912 | 1 pcs | 3,0118 EUR |
|
HETTICH 9123084 Arcitech inner drawer front holder 94 white | 226259 | 1 pcs | 17,5218 EUR |
