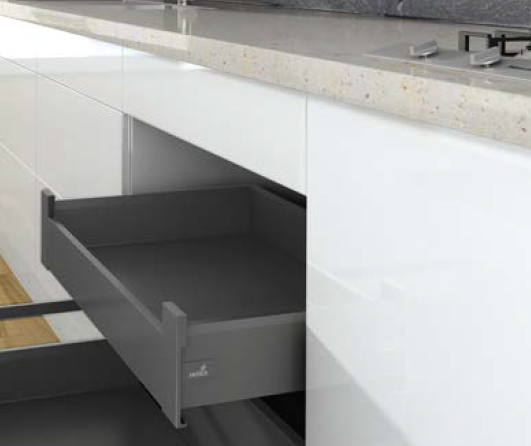

K-HETTICH ArciTech, inner, anthracite, 300/126, 10kg, SiSy
Product range code
354790
Set
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Fittings for ArciTech internal drawer in anthracite color, drawer depth 300mm, side height 126mm, drawer load capacity 10kg, SiSy damping. The set includes 1 pair of side panels, 2 pcs of front brackets (needs to add a front plate order no. 301000, height 70 mm, length 2000 mm, shortening = inner width of the body-2xEB-62), 2 pcs of Hettich covers, 2 pcs of back holders. For handle-free P2OS opening, it is necessary to add the correct P2O module, if the drawer is wider than 600mm, you need to add a synchronization rod (318279), shortening = inner width of the body-2xEB-207.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Attached front fittings | Inner |
| Colour | Anthracite |
| Headroom of drawer (mm) | 126 |
| Length (mm) | 300 |
| Load capacity (kg) | 10 |
| Movement of extended drawer | With damping or handleless with damping |
| Sidewall height (mm) | 126 |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
HETTICH 9150493 ArciTech flexi set 126/300 anthracite | 235067 | 1 set | 32,503 EUR |
|
HETTICH 9240885 Actro 10kg 300 mm tl18 mm SiSy L+P | 352604 | 1 pair | 38,0697 EUR |
|
HETTICH 9121839 ArciTech back clamp 126 mm anthracite L | 225919 | 1 pcs | 3,9703 EUR |
|
HETTICH 9121840 ArciTech back clamp 126 mm anthracite P | 225920 | 1 pcs | 3,9703 EUR |
|
HETTICH 9140122 ArciTech connector set for inner drawer front 126mm anthracite | 237457 | 1 set | 22,4503 EUR |
