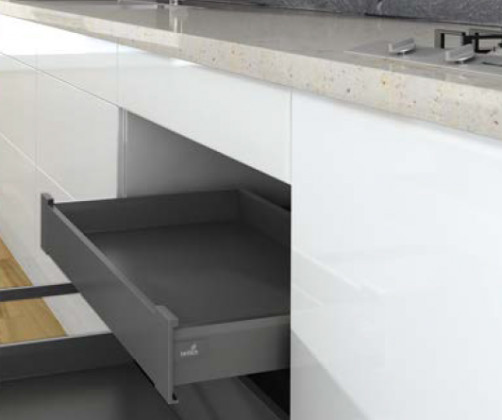

K-HETTICH ArciTech, inner, anthracite, 400/94, 40kg, SiSy
Product range code
354802
Set
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Fittings for ArciTech internal drawer in anthracite color, drawer depth 400mm, side height 94mm, drawer load capacity 40kg, SiSy damping. The set includes 1 pair of side panels, 2 pcs of front brackets (needs to add a front plate order no. 301000, height 70 mm, length 2000 mm, shortening = inner width of the body-2xEB-62), 2 pcs of Hettich covers, 2 pcs of back holders. For handle-free P2OS opening, it is necessary to add the correct P2O module, if the drawer is wider than 600mm, you need to add a synchronization rod (318279), shortening = inner width of the body-2xEB-207.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Attached front fittings | Inner |
| Colour | Anthracite |
| Headroom of drawer (mm) | 94 |
| Length (mm) | 400 |
| Load capacity (kg) | 40 |
| Movement of extended drawer | With damping or handleless with damping |
| Sidewall height (mm) | 94 |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
HETTICH 9150487 ArciTech flexi set 94/400 mm anthracite | 235050 | 1 set | 27,6845 EUR |
|
HETTICH 9239279 Actro 40kg full extension 400 mm tl18 mm, SiSy, L | 352614 | 1 pcs | 17,4946 EUR |
|
HETTICH 9239280 Actro 40kg full extension 400 mm tl18 mm, SiSy, P | 352615 | 1 pcs | 17,4946 EUR |
|
HETTICH 9121831 Arcitech back clip 94 L anthracite | 225913 | 1 pcs | 3,0118 EUR |
|
HETTICH 9121832 Arcitech back clip 94 P anthracite | 225914 | 1 pcs | 3,0118 EUR |
|
HETTICH 9140121 Arcitech inner drawer front holder 94 anthracite | 237456 | 1 set | 17,5218 EUR |
