K-HETTICH ArciTech, inner, anthracite, 500/126/186, 60kg, SiSy

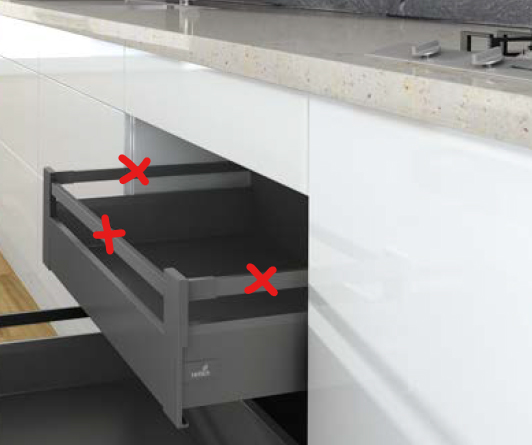

ArciTech interior drawer fittings in anthracite color, drawer depth 500mm, side height 126mm, total height 186mm, drawer load capacity 60kg, SiSy damping. The set contains 1 pair of side panels, 2 pcs of front brackets 186 mm (needs to be supplemented with a front plate order no. 301000, height 70 mm, length 2000 mm, shortening = body width-2xEB-62, also a front railing order no. 269684, length 2000 mm, shortening = internal width of the body-2xEB-66.5), 2 pcs of Hettich caps, 2 pcs of back holders 186 mm. For handle-free P2OS opening, it is necessary to add the correct P2O module, if the drawer is wider than 600mm, it is necessary to add a synchronization rod (318279) shortening = body thickness-2xEB-207.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Attached front fittings | Inner |
| Colour | Anthracite |
| Headroom of drawer (mm) | 186 |
| Length (mm) | 500 |
| Load capacity (kg) | 60 |
| Movement of extended drawer | With damping or handleless with damping |
| Sidewall height (mm) | 126 |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
HETTICH 9150497 ArciTech flexi set 126/500 mm anthracite | 235077 | 1 set | 33,8173 EUR |
|
HETTICH 9240898 Actro 70kg 500 mm tl18 mm SiSy L+P | 352631 | 1 pair | 44,5611 EUR |
|
HETTICH 9121847 Arcitech back clamp 186 L anthracite | 225925 | 1 pcs | 5,202 EUR |
|
HETTICH 9121848 Arcitech back clamp 186 P anthracite | 225926 | 1 pcs | 5,202 EUR |
|
HETTICH 9140123 Arcitech inner drawer front holder 186 anthracite | 237458 | 1 set | 31,7583 EUR |
