K-HETTICH ArciTech, inner, anthracite, 650/126/218, 40kg, SiSy
Product range code
354868
Set

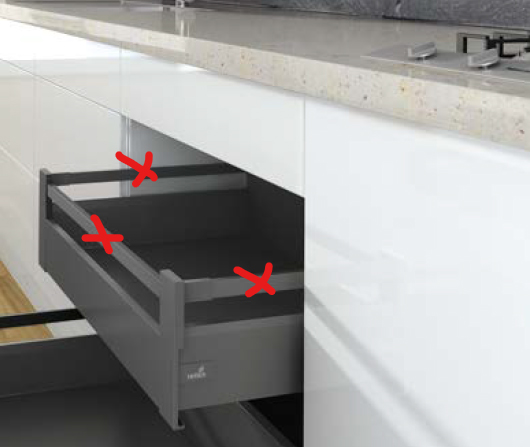

Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
ArciTech internal drawer fittings in anthracite color, drawer depth 650mm, side height 126mm, total height 218mm, drawer load capacity 40kg, SiSy damping. The set contains 1 pair of side panels, 2 pcs of front brackets 218 mm (needs to be supplemented with a front plate order no. 301000, height 70 mm, length 2000 mm, shortening = body width-2xEB-62, also a front railing order no. 269684, length 2000 mm, shortening = inner width of the body-2xEB-66.5), 2 pcs of Hettich caps, 2 pcs of back holders 218mm. For handle-free P2OS opening, it is necessary to add the correct P2O module, if the drawer is wider than 600mm, it is necessary to add a synchronization rod (318279) shortening = body thickness-2xEB-207.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Attached front fittings | Inner |
| Colour | Anthracite |
| Headroom of drawer (mm) | 218 |
| Length (mm) | 650 |
| Load capacity (kg) | 40 |
| Movement of extended drawer | With damping or handleless with damping |
| Sidewall height (mm) | 126 |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
HETTICH 9150499 ArciTech flexi set 650/126 mm anthracite | 235084 | 1 set | 34,8029 EUR |
|
HETTICH 9240895 Actro 40kg full extension 650mm thick 18mm SiSy set | 352646 | 1 pair | 42,6908 EUR |
|
HETTICH 9121855 Arcitech back clamp 218 L anthracite | 225931 | 1 pcs | 6,0778 EUR |
|
HETTICH 9121856 Arcitech back clamp 218 P anthracite | 225932 | 1 pcs | 6,0778 EUR |
|
HETTICH 9140124 ArciTech connector set for inner drawer front 218mm anthracite | 237459 | 1 set | 36,6866 EUR |
