K-HETTICH ArciTech, inner, silver, 650/126, 60kg, SiSy
Product range code
355153
Set

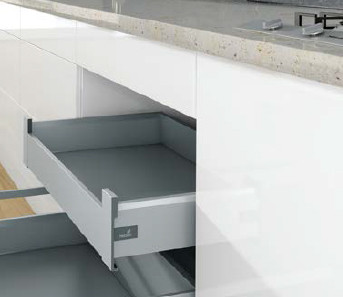

Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Fittings for ArciTech inner drawer in silver color, drawer depth 650mm, side height 126mm, drawer load capacity 60kg, SiSy damping. The set contains 1 pair of side panels, 2 pcs of front brackets (you will need to add a front plate order no. 297522, height 70 mm, length 2000 mm, shortening = inner width of the body-2xEB-62), 2 pcs of Hettich covers, 2 pcs of back holders. For handle-free P2OS opening, it is necessary to add the correct P2O module, if the drawer is wider than 600mm, you need to add a synchronization rod (318279), shortening = inner width of the body-2xEB-207.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Attached front fittings | Inner |
| Colour | Silver |
| Headroom of drawer (mm) | 126 |
| Length (mm) | 650 |
| Load capacity (kg) | 60 |
| Movement of extended drawer | With damping or handleless with damping |
| Sidewall height (mm) | 126 |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
HETTICH 9150629 ArciTech flexi set 126/650 silver | 235086 | 1 set | 34,8029 EUR |
|
HETTICH 9240900 Actro 60kg 650 mm tl18 mm SiSy L+P | 352649 | 1 pair | 46,5417 EUR |
|
HETTICH 9121835 Arcitech back clip 126 L silver | 225915 | 1 pcs | 3,9703 EUR |
|
HETTICH 9121836 Arcitech back clip 126 P silver | 225916 | 1 pcs | 3,9703 EUR |
|
HETTICH 9123086 ArciTech connector set for inner drawer front 126mm silver | 226261 | 1 pcs | 22,4503 EUR |
