K-HETTICH ArciTech, inner, white, 550/126, 40kg, SiSy
Product range code
354567
Set
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

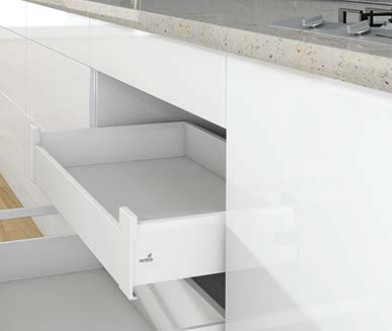

Fittings for the internal ArciTech drawer in white, drawer depth 550mm, side height 126mm, drawer load capacity 40kg, SiSy damping. The set contains 1 pair of side panels, 2 pcs of front brackets (needs to add a front plate order no. 301001, height 70 mm, length 2000 mm, shortening = inner width of the body-2xEB-62), 2 pcs of Hettich covers, 2 pcs of back holders. For handle-free P2OS opening, it is necessary to add the correct P2O module, if the drawer is wider than 600mm, you need to add a synchronization rod (318279), shortening = inner width of the body-2xEB-207.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Attached front fittings | Inner |
| Colour | White |
| Headroom of drawer (mm) | 126 |
| Length (mm) | 550 |
| Load capacity (kg) | 40 |
| Movement of extended drawer | With damping or handleless with damping |
| Sidewall height (mm) | 126 |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
HETTICH 9149277 ArciTech flexi set 126/550 mm white | 235147 | 1 set | 34,1456 EUR |
|
HETTICH 9239293 Actro 40kg full extension 550 mm tl18 mm, SiSy, L | 352635 | 1 pcs | 18,4847 EUR |
|
HETTICH 9239294 Actro 40kg full extension 550 mm tl18 mm, SiSy, P | 352636 | 1 pcs | 18,4847 EUR |
|
HETTICH 9121837 Arcitech back clip 126 L white | 225917 | 1 pcs | 3,9703 EUR |
|
HETTICH 9121838 Arcitech back clip 126 P white | 225918 | 1 pcs | 3,9703 EUR |
|
HETTICH 9123087 ArciTech connector set for inner drawer front 126mm white | 226262 | 1 pcs | 22,4503 EUR |
