K-HETTICH Arcitech, inner, white, 550/94/186, 40kg, SiSy

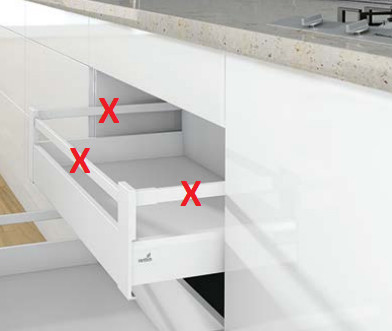

Fittings for ArciTech internal drawer in white, drawer depth 550mm, side height 94mm, total height 186mm, drawer load capacity 40kg, SiSy damping. The set contains 1 pair of side panels, 2 pcs of front brackets 186 mm (needs to be supplemented with a front plate order no. 301001, height 70 mm, length 2000 mm, shortening = body width-2xEB-62, also a front railing order no. 269640, length 2000 mm, shortening = internal width of the body-2xEB-66.5), 2 pcs of Hettich caps, 2 pcs of back holders 186 mm. For handle-free P2OS opening, it is necessary to add the correct P2O module, if the drawer is wider than 600mm, it is necessary to add a synchronization rod (318279) shortening = body thickness-2xEB-207.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Attached front fittings | Inner |
| Colour | White |
| Headroom of drawer (mm) | 186 |
| Length (mm) | 550 |
| Load capacity (kg) | 40 |
| Movement of extended drawer | With damping or handleless with damping |
| Sidewall height (mm) | 94 |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
HETTICH 9149268 Arcitech flexi set 550/94 white | 235139 | 1 set | 28,6703 EUR |
|
HETTICH 9239293 Actro 40kg full extension 550 mm tl18 mm, SiSy, L | 352635 | 1 pcs | 18,4847 EUR |
|
HETTICH 9239294 Actro 40kg full extension 550 mm tl18 mm, SiSy, P | 352636 | 1 pcs | 18,4847 EUR |
|
HETTICH 9121845 Arcitech back clip 186 L white | 225923 | 1 pcs | 5,202 EUR |
|
HETTICH 9121846 Arcitech back clip 186 P white | 225924 | 1 pcs | 5,202 EUR |
|
HETTICH 9123090 Arcitech inner drawer front holder 186 white | 226265 | 1 pcs | 31,7583 EUR |
| Title | Code | Availability |
Divisibility/ packaging |
Basic price per unit | |
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
11109 |
>
S
In stock
|
1,000 pcs / 1,000 pcs |
0,0082 EUR
/ pcs
0,0099 EUR incl. VAT
|
|
| Title | Code | Availability |
Divisibility/ packaging |
Basic price per unit | |
|
Set
Tips for a better price
Order the whole package and your price per pc (set) will be %price% |
354845 |
>
O
On demand
|
1 set / 1 set |
107,802 EUR
/ set
130,4404 EUR incl. VAT
|
|
