K-HETTICH ArciTech, inner, white, 650/94/218, 60kg, SiSy
Product range code
354590
Set

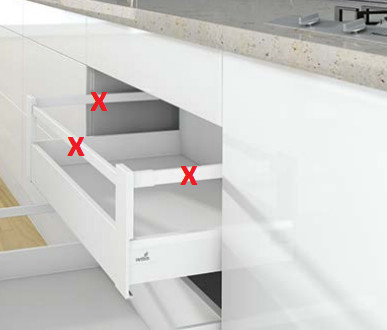

Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Fittings for ArciTech internal drawer in white, drawer depth 650mm, side height 94mm, total height 218mm, drawer load capacity 60kg, SiSy damping. The set includes 1 pair of side panels, 2 pcs of front brackets 218 mm (needs to be supplemented with a front plate order no. 301001, height 70 mm, length 2000 mm, shortening = body width-2xEB-62, also a front railing order no. 269640, length 2000 mm, shortening = inner width of the body-2xEB-66.5), 2 pcs of Hettich caps, 2 pcs of back holders 218mm. For handle-free P2OS opening, it is necessary to add the correct P2O module, if the drawer is wider than 600mm, it is necessary to add a synchronization rod (318279) shortening = body thickness-2xEB-207.
Related documents
DocumentationParameters
| Parameter | Value |
|---|---|
| Attached front fittings | Inner |
| Colour | White |
| Headroom of drawer (mm) | 218 |
| Length (mm) | 650 |
| Load capacity (kg) | 60 |
| Movement of extended drawer | With damping or handleless with damping |
| Sidewall height (mm) | 94 |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
HETTICH 9149269 ArciTech flexi set 94/650 mm white | 235140 | 1 set | 29,3271 EUR |
|
HETTICH 9240900 Actro 60kg 650 mm tl18 mm SiSy L+P | 352649 | 1 pair | 46,5417 EUR |
|
HETTICH 9121853 Arcitech back clip 218 L white | 225929 | 1 pcs | 6,0778 EUR |
|
HETTICH 9121854 Arcitech back clip 218 P white | 225930 | 1 pcs | 6,0778 EUR |
|
HETTICH 9123093 ArciTech connector set for inner drawer front 218mm white | 226268 | 1 pcs | 36,6866 EUR |
