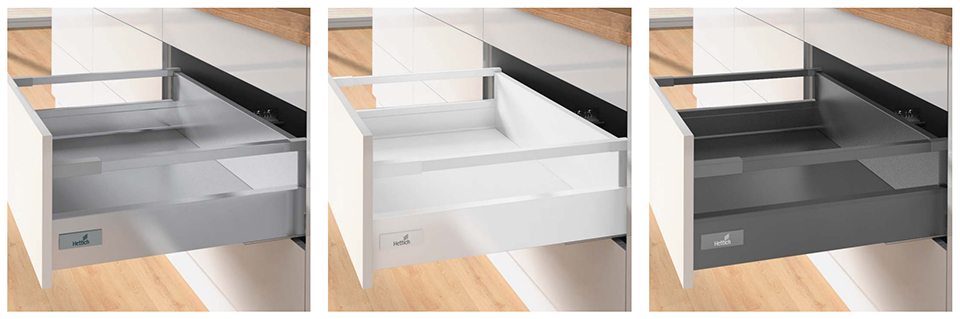

K-HETTICH InnoTech Atira, frontal, antracit, 300/70/144 with railing, 10kg PTOs
Complete set of fittings for the InnoTech Atira drawer as described in the product name - including drawers and front fitting (dowel). For 144mm and 176mm height drawers, longitudinal relingues are also included. For internal drawers, the transverse front elements (front plate, front reling) must be added. Push To Open silent slides (PTOs) with integrated silenced query and the option to add PTOs modules for snag-free opening. The module must be selected with regard to the total weight of the drawer, for bodies wider than 600mm the synchronisation bar 318279 must be added (length 2000mm, shortening = internal body width - 2x EB - 66mm). For narrower enclosures the use is recommended. Adapters for connecting the synchronization rod are included with the modules.
Parameters
| Parameter | Value |
|---|---|
| Attached front fittings | For dowel |
| Colour | Anthracite |
| Headroom of drawer (mm) | 144 |
| Length (mm) | 300 |
| Load capacity (kg) | 10 |
| Movement of extended drawer | With damping |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
HETTICH 9243683 Quadro V6_10 P2Os 300 mm eb10.5 L | 352801 | 1 pcs | |
|
|
HETTICH 9243684 Quadro V6_10 P2Os 300 mm eb10.5 P | 352802 | 1 pcs | |
|
HETTICH 9307210 Atira flexi set complete 300/144 anthracite reling front bracket | 489859 | 1 set | 43,8415 EUR |
| Title | Code | Availability |
Divisibility/ packaging |
Basic price per unit | |
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
318279 |
>
S
In stock
|
1 pcs / 200 pcs |
11,2926 EUR
/ pcs
13,664 EUR incl. VAT
|
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
318281 |
>
S
In stock
|
1 pcs / 600 pcs |
1,0229 EUR
/ pcs
1,2377 EUR incl. VAT
|
|
Tips for a better price
Order the whole package and your price per pc (set) will be %price% |
352906 |
>
S
In stock
|
1 set / 1 set |
37,1335 EUR
/ set
44,9315 EUR incl. VAT
|
|
|
|
