K-HETTICH InnoTech Atira, frontal, antracit, 420/70 50kg, PTO
Product range code
357905
Set
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

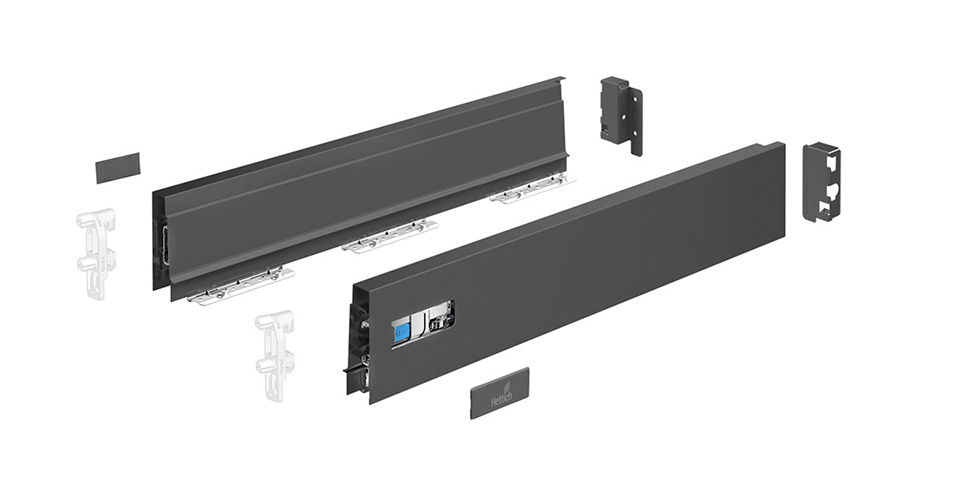

Complete set of fittings for the InnoTech Atira drawer as described in the product name - including drawers and front fitting (dowel). For 144mm and 176mm height drawers, longitudinal relingues are also included. For internal drawers, the transverse front elements (front plate, front reling) must be added. Push To Open (PTO) slides with catchless opening integrated in the slides. For enclosures wider than 600mm it is necessary to add synchronisation bar 318279 (length 2000mm, shortening = internal width of enclosure - 66mm) and 2 pcs of adapter 318282. For narrower housings the use is recommended.
Parameters
| Parameter | Value |
|---|---|
| Colour | Anthracite |
| Headroom of drawer (mm) | 70 |
| Length (mm) | 420 |
| Load capacity (kg) | 50 |
| Movement of extended drawer | Handleless |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
HETTICH 9307125 Atira flexi complete set 420/70 anthracite | 486160 | 1 set | 30,3693 EUR |
|
HETTICH 9143509 Quadro V6+ 420mm EB10.5 P2O L+P | 210451 | 1 set | 56,5823 EUR |
