K-HETTICH InnoTech Atira, internal, antracit, 420/70/144 with railing, 50kg, PTO
Product range code
358059
Set

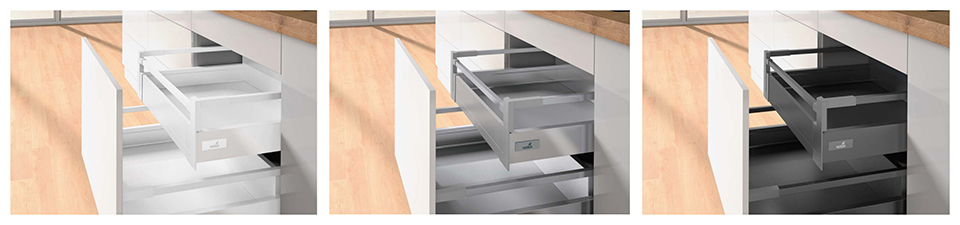

Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Complete set of fittings for the InnoTech Atira drawer as described in the product name - including drawers and front fitting (dowel). For 144mm and 176mm height drawers, longitudinal relingues are also included. For internal drawers, the transverse front elements (front plate, front reling) must be added. Push To Open (PTO) slides with catchless opening integrated in the slides. For enclosures wider than 600mm it is necessary to add synchronisation bar 318279 (length 2000mm, shortening = internal width of enclosure - 66mm) and 2 pcs of adapter 318282. For narrower housings the use is recommended.
Parameters
| Parameter | Value |
|---|---|
| Attached front fittings | Inner |
| Colour | Anthracite |
| Headroom of drawer (mm) | 144 |
| Length (mm) | 420 |
| Load capacity (kg) | 50 |
| Movement of extended drawer | With damping |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
HETTICH 9143509 Quadro V6+ 420mm EB10.5 P2O L+P | 210451 | 1 set | 56,5823 EUR |
|
HETTICH 9293518 Atira inner drawer front coupling 144mm anthracite | 459932 | 1 set | 20,7531 EUR |
|
HETTICH 9307212 Atira flexi set complete 420/144 anthracite reling front bracket | 489861 | 1 set | 45,8027 EUR |
