K-HETTICH InnoTech Atira, internal, silver, 350/70, 30kg PTOs

Product range code 358223
Set

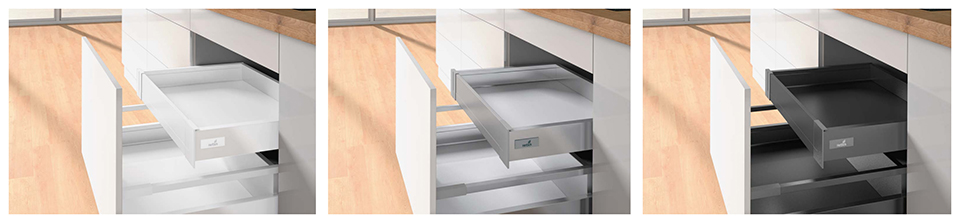

Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Base price per set
66,6414 EUR 80,6361 EUR incl. VAT
> S In stock
Buy
Brand
Hettich
Group code
1020050504
Unit (piece)
set
Divisibility
1 set
Packaging
1 set
Description and parameters

Complete set of fittings for the InnoTech Atira drawer as described in the product name - including drawers and front fitting (dowel). For 144mm and 176mm height drawers, longitudinal relingues are also included. For internal drawers, the transverse front elements (front plate, front reling) must be added. Push To Open silent slides (PTOs) with integrated silenced query and the option to add PTOs modules for snag-free opening. The module must be selected with regard to the total weight of the drawer, for bodies wider than 600mm the synchronisation bar 318279 must be added (length 2000mm, shortening = internal body width - 2x EB - 66mm). For narrower enclosures the use is recommended. Adapters for connecting the synchronization rod are included with the modules.

Parameters

Parameter Value
Attached front fittings Inner
Colour Silver
Headroom of drawer (mm) 70
Length (mm) 350
Load capacity (kg) 30
Movement of extended drawer With damping
Related product range (accessories) (4)
Title Code Availability Divisibility/
packaging
Basic price per unit
StrongFix Screw PZ 3,5x16 with countersunk head yellow zinc PZ2 StrongFix Screw PZ 3,5x16 with countersunk head yellow zinc PZ2 11109
> S In stock
1,000 pcs / 1,000 pcs
0,0082 EUR
/ pcs
0,0099 EUR incl. VAT
HETTICH 9236718 P2O sync rod 2000 mm HETTICH 9236718 P2O sync rod 2000 mm 318279
> S In stock
1 pcs / 200 pcs
11,2926 EUR
/ pcs
13,664 EUR incl. VAT
HETTICH 9221295 synchronizer shaft clutch HETTICH 9221295 synchronizer shaft clutch 318281
> S In stock
1 pcs / 600 pcs
1,0229 EUR
/ pcs
1,2377 EUR incl. VAT
HETTICH 9240162 P2Os mechanism for Atira 8-20kg HETTICH 9240162 P2Os mechanism for Atira 8-20kg 352907
> S In stock
1 set / 1 set
37,1335 EUR
/ set
44,9315 EUR incl. VAT
