K-HETTICH WingLine S Pull2MS, 3 kg, 600 mm, 3 hinges S, right, grey
Product range code
504630
Set

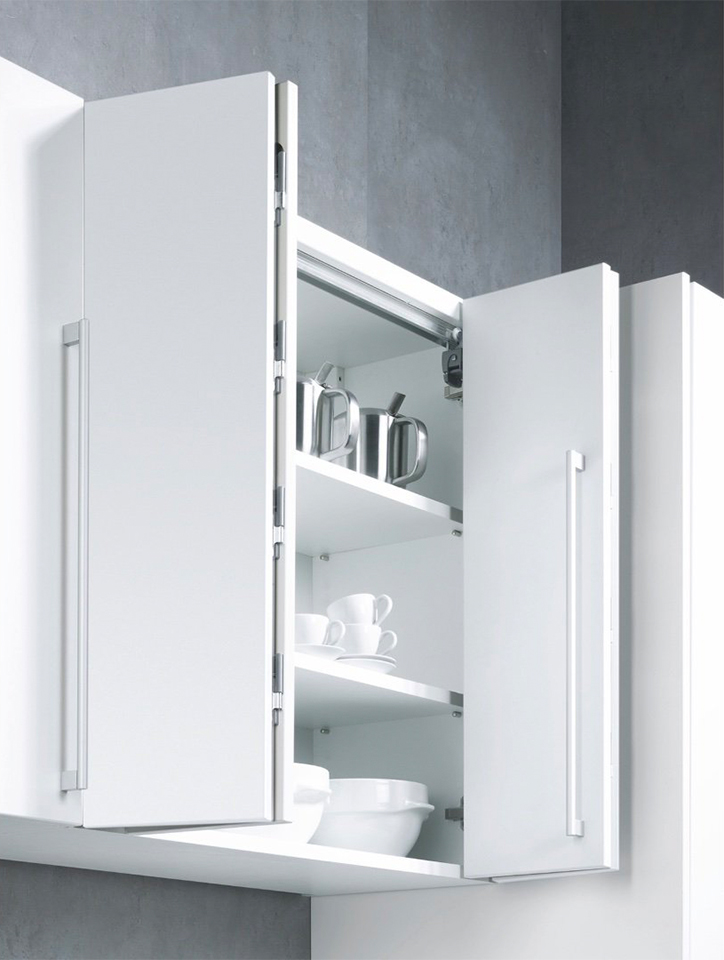

Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Complete set of WingLine S Pull to move silent fittings for light doors of weight up to 3 kg, with right opening, including the opening mechanism, top guide and door hinges. The door opens fully when handle is pulled to an angle of approx 35 °, door closing softly. For a wing of width 250 - 300 mm and height up to 1000 mm. For a cabinet of width max 600 mm. Number of door hinges - 3 pcs. Holding hinge design: for screw fixing. Color: grey. It is necessary to purchase the arrester and the recommended side hinges - see related assortment. Assembly instructions for the individual products of this set can be found on producer`s website.
Parameters
| Parameter | Value |
|---|---|
| Colour | Gray |
| Fill (mm) | 16 - 22 |
| Load capacity (kg) | 3 |
| Maximum leaf width (mm) | 300 |
| Orientation | Right |
| Type | WingLine S Pull |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
HETTICH 9279130 WingLine S upper guide profile 1200 mm anodized aluminum | 409312 | 1 pcs | 14,5226 EUR |
|
HETTICH 9283265 WingLine S shock absorber gray | 409309 | 1 pcs | 0,7104 EUR |
|
HETTICH 9278742 WingLine L folding curtains 3 pcs to screw on | 409247 | 1 set | 31,7131 EUR |
|
HETTICH 9238119 WingLine L/S Pull2MS mechanism for ligHETTICH doors gray right | 409282 | 1 set | 61,6405 EUR |
|
HETTICH 9283117 WingLine S Pull to move silent gray right | 409300 | 1 set | 10,7455 EUR |
