K-HETTICH WingLine S Pull2MS, 5 kg, 1800 mm, 4 hinges P, right+left, grey
Product range code
504695
Set
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters

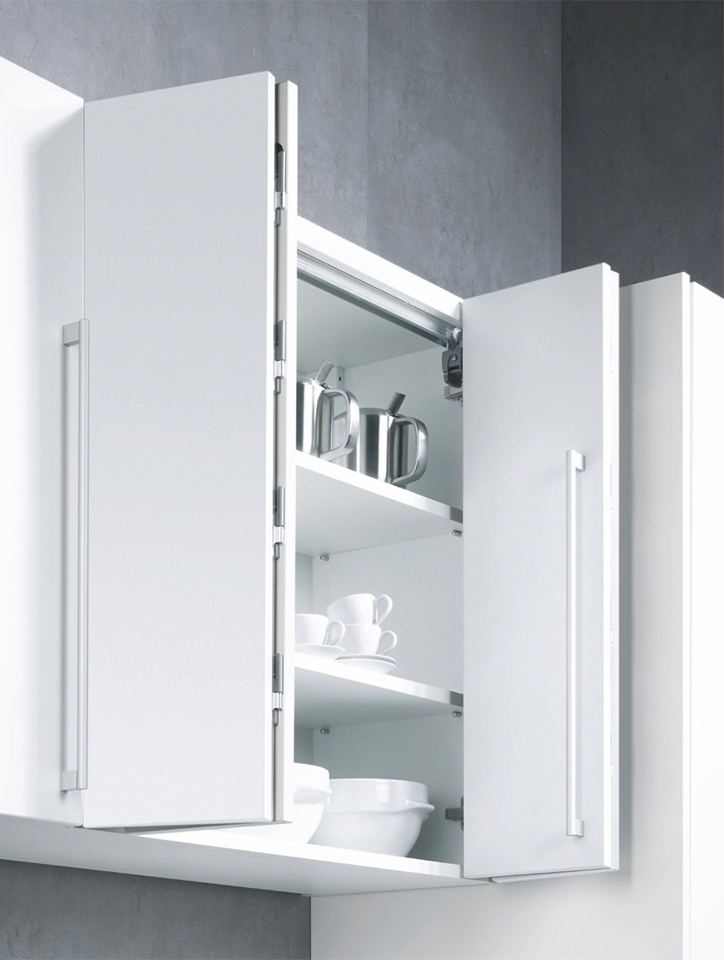

Complete set of WingLine S Pull to move silent fittings for medium heavy doors of weight up to 5 kg, with right and left opening, including the opening mechanism, top guide and door hinges. The door opens fully when handle is pulled to an angle of approx 35 °, door closing softly. For a wing of width 300 - 450 mm and height up to 500 mm. For a cabinet of width max 1800 mm. Number of door hinges - 4 pcs. Holding hinge design: for pressing-in. Color: grey. It is necessary to purchase the arrester and the recommended side hinges - see related assortment. Assembly instructions for the individual products of this set can be found on producer`s website.
Parameters
| Parameter | Value |
|---|---|
| Colour | Gray |
| Fill (mm) | 16 - 22 |
| Load capacity (kg) | 5 |
| Maximum leaf width (mm) | 450 |
| Orientation | Right+Left |
| Type | WingLine S Pull |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
HETTICH 9278788 WingLine L folding curtains 2 pcs to press | 409246 | 2 set | 22,1099 EUR |
|
HETTICH 9279162 WingLine S upper guide profile 2400 mm anodized aluminum | 409315 | 1 pcs | 26,834 EUR |
|
HETTICH 9283265 WingLine S shock absorber gray | 409309 | 2 pcs | 0,7104 EUR |
|
HETTICH 9238119 WingLine L/S Pull2MS mechanism for ligHETTICH doors gray right | 409282 | 1 set | 61,6405 EUR |
|
HETTICH 9238120 WingLine L/S Pull2MS mechanism for ligHETTICH doors gray left | 409279 | 1 set | 61,6405 EUR |
|
HETTICH 9283117 WingLine S Pull to move silent gray right | 409300 | 1 set | 10,7455 EUR |
|
HETTICH 9283230 WingLine S Pull to move silent gray left | 409297 | 1 set | 10,7455 EUR |
