K-HETTICH WingLine S Push2M, 3 kg, 1200 mm, 6 hinges S, right+left, grey
Product range code
504606
Set

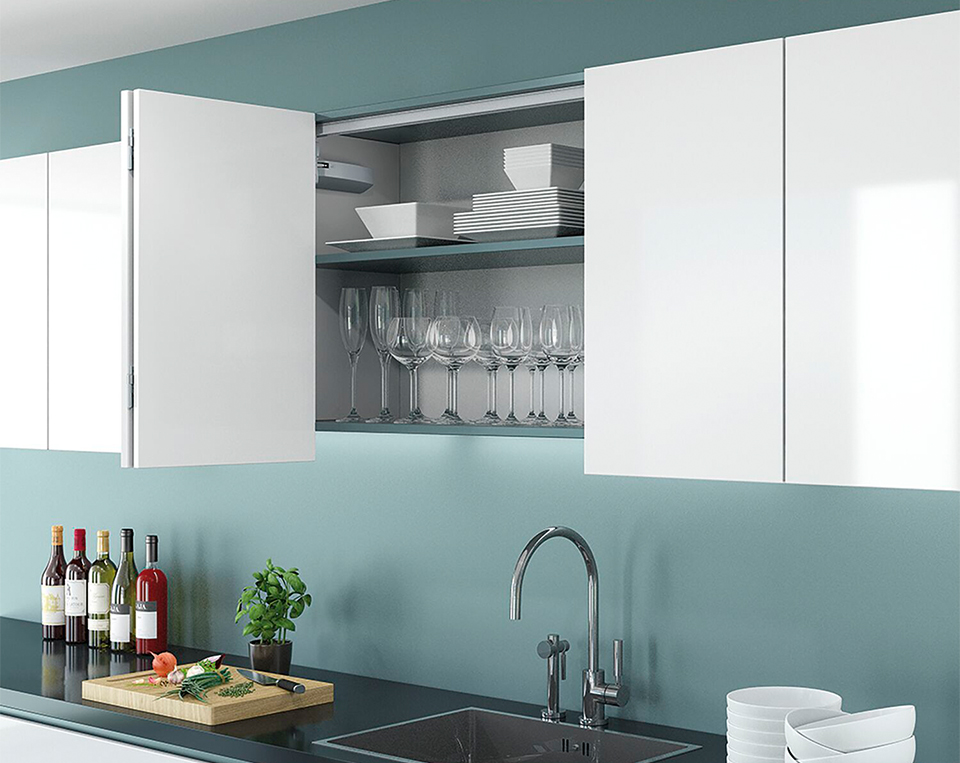

Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Description and parameters
Complete set of WingLine S Push to move fittings for light doors up to 3 kg with opening on the right and left side, including the opening mechanism, top guide and folding door hinges, without bottom guide. The door opens with a short push, it must be pushed again when closing. For wing width 250 - 300 mm and up to a height of 1000 mm, cabinet width max 1200 mm. Number of hinges between the doors - 6 pcs to be screwed on. Color grey. It is necessary to purchase the arrester and the recommended side hinges, see related assortment. Assembly instructions can be found on our website for the individual products of this set.
Parameters
| Parameter | Value |
|---|---|
| Colour | Gray |
| Fill (mm) | 16 - 22 |
| Load capacity (kg) | 3 |
| Maximum leaf width (mm) | 300 |
| Orientation | Right+Left |
| Type | WingLine S Push |
Composition of the set
| Title | Code | Quantity in set | Price excluding VAT | |
|---|---|---|---|---|
|
HETTICH 9278742 WingLine L folding curtains 3 pcs to screw on | 409247 | 2 set | 31,7131 EUR |
|
HETTICH 9279130 WingLine S upper guide profile 1200 mm anodized aluminum | 409312 | 1 pcs | 14,5226 EUR |
|
HETTICH 9283265 WingLine S shock absorber gray | 409309 | 2 pcs | 0,7104 EUR |
|
HETTICH 9266111 WingLine L/S mechanism Push2M for ligHETTICH doors gray right | 409264 | 1 set | 64,6539 EUR |
|
HETTICH 9266113 WingLine L/S mechanism Push2M for ligHETTICH doors gray left | 409261 | 1 set | 64,6539 EUR |
|
HETTICH 9283243 WingLine S Push to move silent gray right | 409306 | 1 set | 10,7455 EUR |
|
HETTICH 9283248 WingLine S Push to move silent gray left | 409303 | 1 set | 8,9702 EUR |
