K-StrongMax 16 121/600mm 40kg, white | Démos trade a.s.
Hide product range Assortment

K-StrongMax 16 121/600mm 40kg, white

Product range code 502983
Set
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Base price per set
29,24 EUR 35,3804 EUR incl. VAT
> S In stock
Buy
Brand
Strong
Group code
1020050702
Unit (piece)
set
Divisibility
1 set
Packaging
1 set
Description and parameters

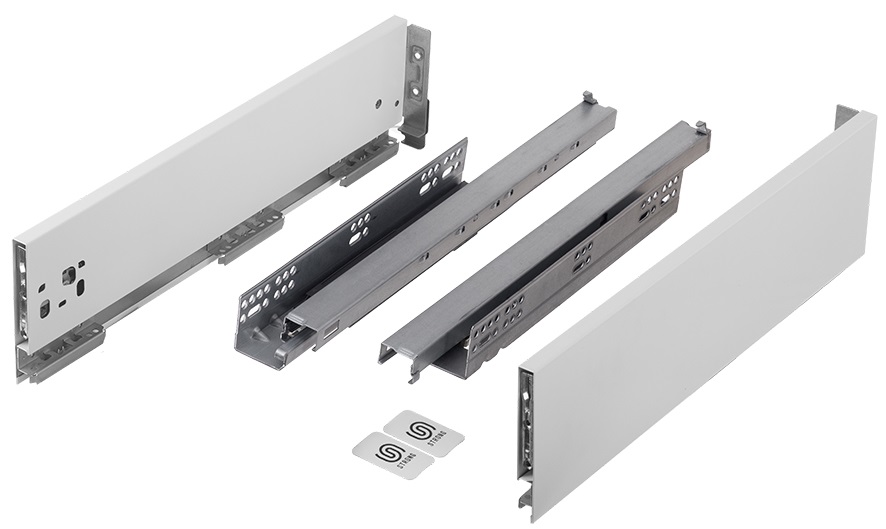

A complete kit for the manufacture of a drawer with a narrow (13mm) hollow sidewall and slides with soft-closing and internal synchronisation. Load capacity up to 40kg. Lifetime of slides minimum 50,000 cycles. Up/down and right/left front adjustment. Full drawer tilt adjustment at the rear of the sidewall (used to adjust the tilt of the front). For the production of the bottom and back, 16mm thick material must be used.

The set includes:

- a pair of damped slides
- a pair of side panels with integrated back brackets
- set of front brackets (clipped in the sidewall)
- pair of caps with STRONG logo print

Nominal length, sidewall height and colour see product name.

Alternatively, the StrongMax 18 box system can be used where 18mm thick material is used for the bottom and back. The accessories for the internal drawers are common to both systems. For drawers with a side height of 249mm, it is not possible to make a front for the inner drawer, it can be replaced by a classic front and moving the whole drawer inside the body by approx. 20mm.

Parameters

Parameter Value
Colour White
Headroom of drawer (mm) 143
Length (mm) 600
Load capacity (kg) 40
Movement of extended drawer With damping
Sidewall height (mm) 121

Composition of the set

  Title Code Quantity in set Price excluding VAT
StrongMax 16 sidewall 121/600 mm, white L+R StrongMax 16 sidewall 121/600 mm, white L+R 503123 1 pair 12,91 EUR
StrongMax slides 600mm 40kg soft-close L+R StrongMax slides 600mm 40kg soft-close L+R 502825 1 pair 16,33 EUR
Alternatives
Title Code Availability Divisibility/
packaging
Basic price per unit
StrongMax 16 121/600mm 40kg, white StrongMax 16 121/600mm 40kg, white 400372
> O On demand
1 set / 1 set
33,96 EUR
/ set
41,0916 EUR incl. VAT
K-StrongMax 18 121/600mm 40kg, white K-StrongMax 18 121/600mm 40kg, white
Set
503076
> S In stock
1 set / 1 set
29,24 EUR
/ set
35,3804 EUR incl. VAT
Code
400372
more less
Code
503076
more less
