K-StrongMax 16 185/500mm 40kg, black

Product range code 503021
Set
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Base price per set
37,68 EUR 45,5928 EUR incl. VAT
> S In stock
Buy
Brand
Strong
Group code
1020050702
Unit (piece)
set
Divisibility
1 set
Packaging
1 set
Description and parameters

A complete kit for the manufacture of a drawer with a narrow (13mm) hollow sidewall and slides with soft-closing and internal synchronisation. Load capacity up to 40kg. Lifetime of slides minimum 50,000 cycles. Up/down and right/left front adjustment. Full drawer tilt adjustment at the rear of the sidewall (used to adjust the tilt of the front). For the production of the bottom and back, 16mm thick material must be used.

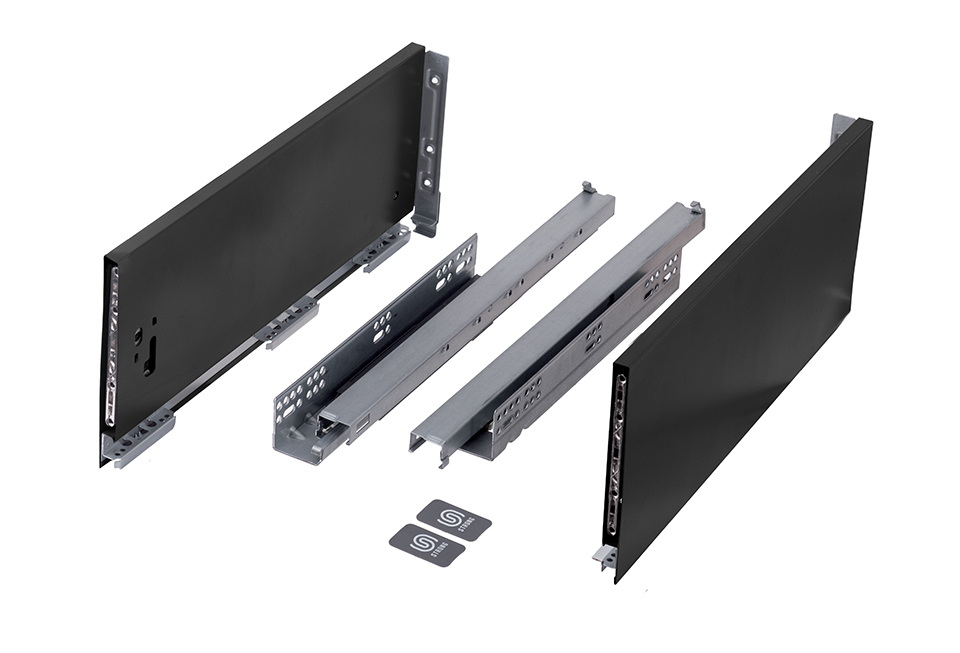

The set includes:

- a pair of damped slides
- a pair of side panels with integrated back brackets
- set of front brackets (clipped in the sidewall)
- pair of caps with STRONG logo print

Nominal length, sidewall height and colour see product name.

Alternatively, the StrongMax 18 box system can be used where 18mm thick material is used for the bottom and back. The accessories for the internal drawers are common to both systems. For drawers with a side height of 249mm, it is not possible to make a front for the inner drawer, it can be replaced by a classic front and moving the whole drawer inside the body by approx. 20mm.

Parameters

Parameter Value
Colour Black
Headroom of drawer (mm) 207
Length (mm) 500
Load capacity (kg) 40
Movement of extended drawer With damping
Sidewall height (mm) 185

Composition of the set

  Title Code Quantity in set Price excluding VAT
StrongMax slides 500mm 40kg soft-close L+R StrongMax slides 500mm 40kg soft-close L+R 374233 1 set 18,32 EUR
StrongMax 16 sidewall 185/500 mm, black L+R StrongMax 16 sidewall 185/500 mm, black L+R 502811 1 pair 19,36 EUR
Alternatives
Title Code Availability Divisibility/
packaging
Basic price per unit
StrongMax 16 185/500mm 40kg, black StrongMax 16 185/500mm 40kg, black 400361
> O On demand
1 set / 1 set
38,71 EUR
/ set
46,8391 EUR incl. VAT
K-StrongMax 18 185/500mm 40kg, black K-StrongMax 18 185/500mm 40kg, black
Set
503099
> S In stock
1 set / 1 set
37,92 EUR
/ set
45,8832 EUR incl. VAT
