K-StrongMax 16 89/650mm 40kg, dark grey | Démos trade a.s.
Hide product range Assortment

K-StrongMax 16 89/650mm 40kg, dark grey

Product range code 502944
Set
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
Base price per set
29,28 EUR 35,4288 EUR incl. VAT
> S In stock
Buy
Brand
Strong
Group code
1020050702
Unit (piece)
set
Divisibility
1 set
Packaging
1 set
Description and parameters

A complete kit for the manufacture of a drawer with a narrow (13mm) hollow sidewall and slides with soft-closing and internal synchronisation. Load capacity up to 40kg. Lifetime of slides minimum 50,000 cycles. Up/down and right/left front adjustment. Full drawer tilt adjustment at the rear of the sidewall (used to adjust the tilt of the front). For the production of the bottom and back, 16mm thick material must be used.

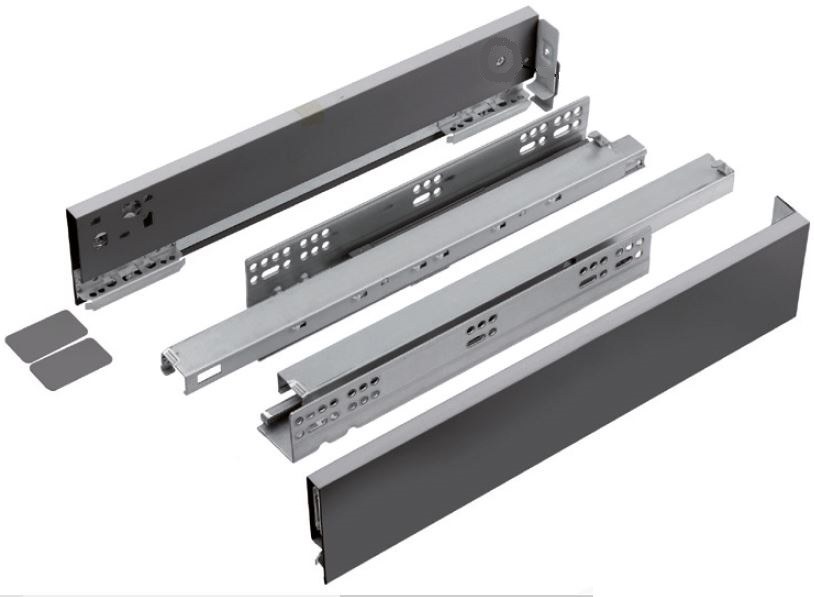

The set includes:

- a pair of damped slides
- a pair of side panels with integrated back brackets
- set of front brackets (clipped in the sidewall)
- pair of caps with STRONG logo print

Nominal length, sidewall height and colour see product name.

Alternatively, the StrongMax 18 box system can be used where 18mm thick material is used for the bottom and back. The accessories for the internal drawers are common to both systems. For drawers with a side height of 249mm, it is not possible to make a front for the inner drawer, it can be replaced by a classic front and moving the whole drawer inside the body by approx. 20mm.

Parameters

Parameter Value
Colour Dark grey
Headroom of drawer (mm) 111
Length (mm) 650
Load capacity (kg) 40
Movement of extended drawer With damping
Sidewall height (mm) 89

Composition of the set

  Title Code Quantity in set Price excluding VAT
StrongMax 16 sidewall 89/650 mm, dark grey L+R StrongMax 16 sidewall 89/650 mm, dark grey L+R 503128 1 pair 12,03 EUR
StrongMax slides 650mm 40kg soft-close L+R StrongMax slides 650mm 40kg soft-close L+R 502824 1 pair 17,25 EUR
Alternatives
Title Code Availability Divisibility/
packaging
Basic price per unit
StrongMax 16 89/650mm 40kg, dark grey StrongMax 16 89/650mm 40kg, dark grey 400377
> O On demand
1 set / 1 set
33,96 EUR
/ set
41,0916 EUR incl. VAT
K-StrongMax 18 89/650mm 40kg, dark grey K-StrongMax 18 89/650mm 40kg, dark grey
Set
503037
> S In stock
1 set / 1 set
29,28 EUR
/ set
35,4288 EUR incl. VAT
