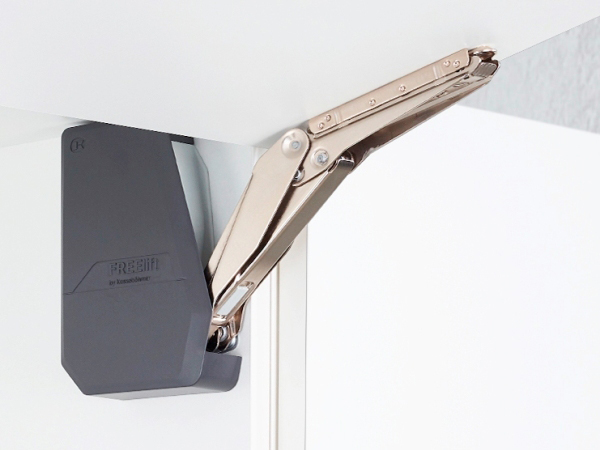

KES FREEflap forte D anthracite
- Base price per set
- 21,923 EUR 26,5268 EUR incl. VAT
-
> S In stockOnly in central warehouse
- Buy
- Brand
- Kesseböhmer
- Group code
- 1010030101
- Unit (piece)
- set
- Divisibility
- 1 set
- Packaging
- 20 set

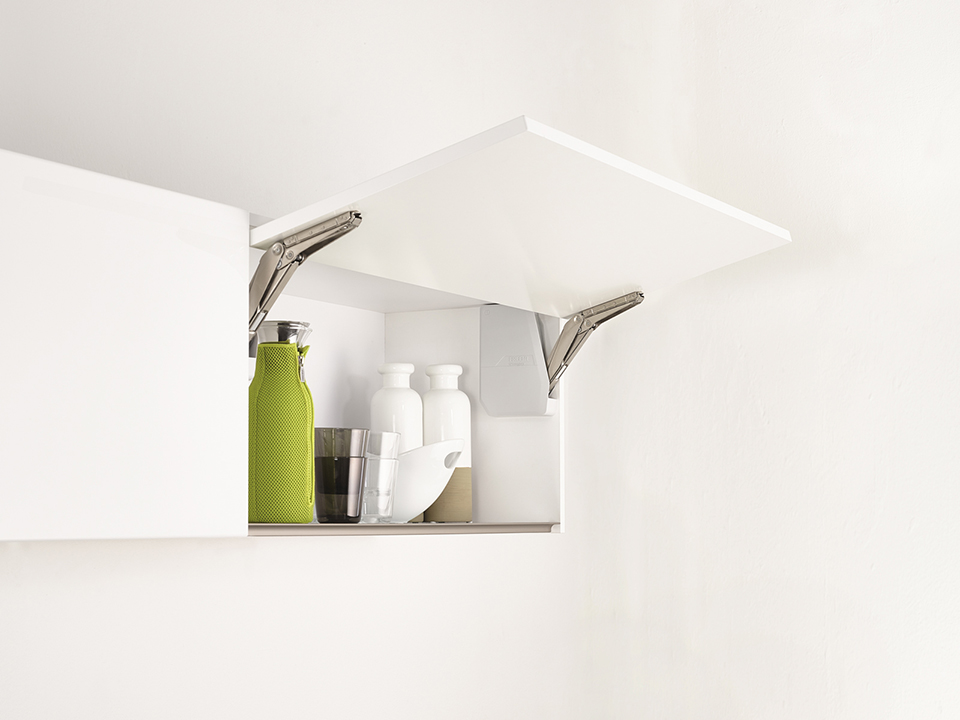

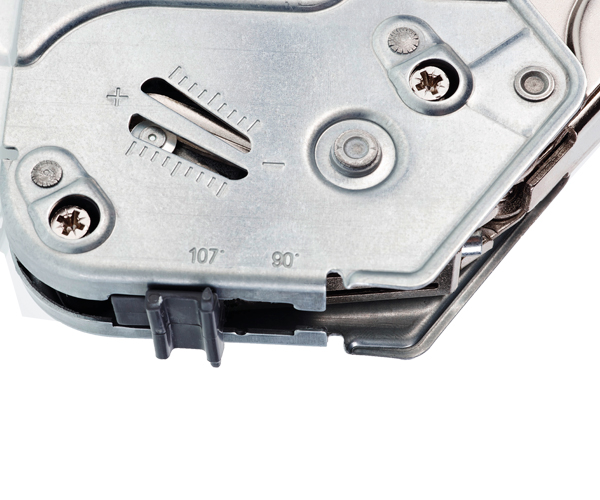

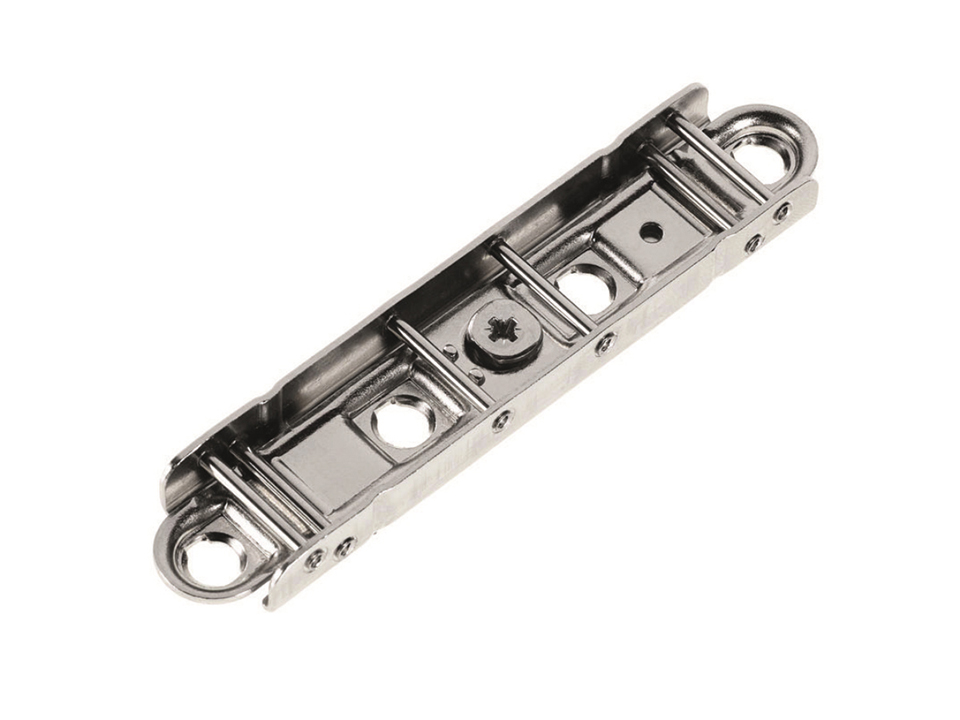

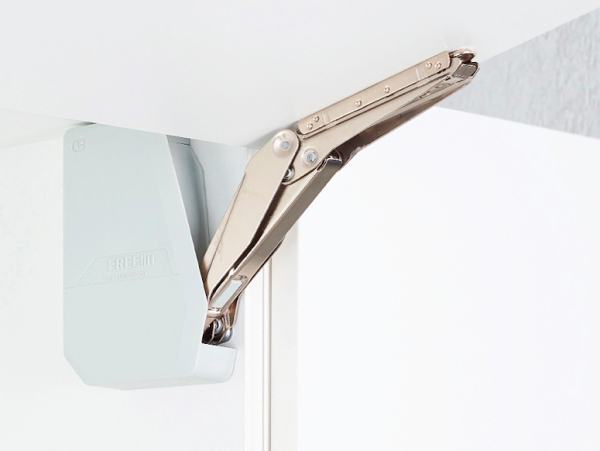

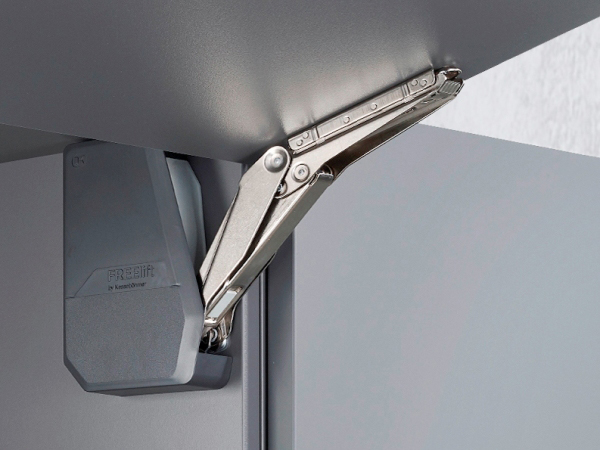

Hip-up fitting with velvet movement and easy assembly. Opening angle 107°. The set includes a pair of hinges, caps in anthracite color, front fittings. Depending on the weight and height of the forehead, you determine the appropriate force of the tilt.

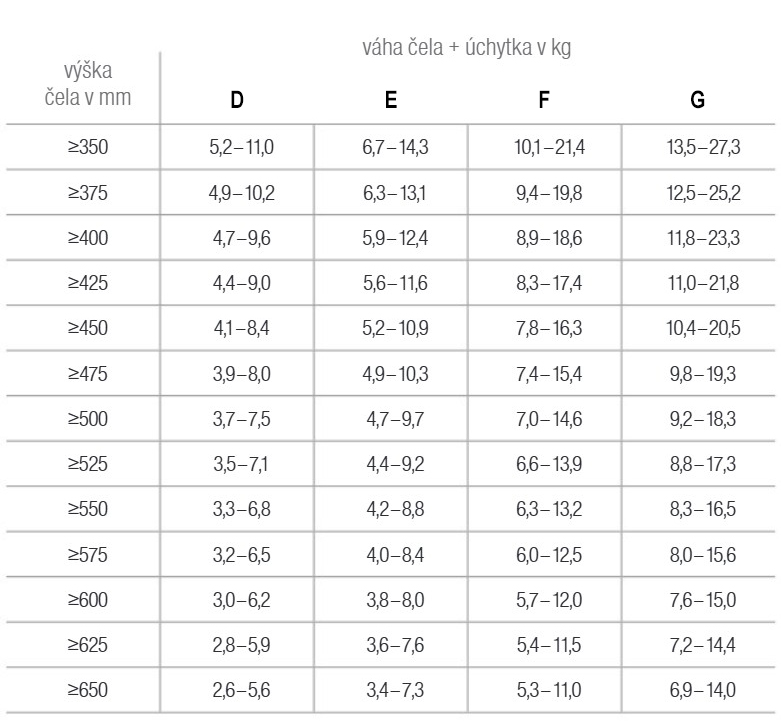

For forehead height 350mm and weight 5.2 - 11.0kg. For forehead height 375mm and weight 4.9 - 10.2kg. For headboard height 400mm and weight 4.7 - 9.6kg. For forehead height 425mm and weight 4.4 - 9.0kg. For head height 450mm and weight 4.1 - 8.4kg. For forehead height 475mm and weight 3.9 - 8.0kg. For headboard height 500mm and weight 3.7 - 7.5kg. For forehead height 525mm and weight 3.5 - 7.1kg. For headboard height 550mm and weight 3.3 - 6.8kg. For forehead height 575mm and weight 3.2 - 6.5kg. For headboard height 600mm and weight 3.0 - 6.2kg. For forehead height 625mm and weight 2.8 - 5.9kg. For a front height of 650 mm and a weight of 2.6 - 5.6 kg.

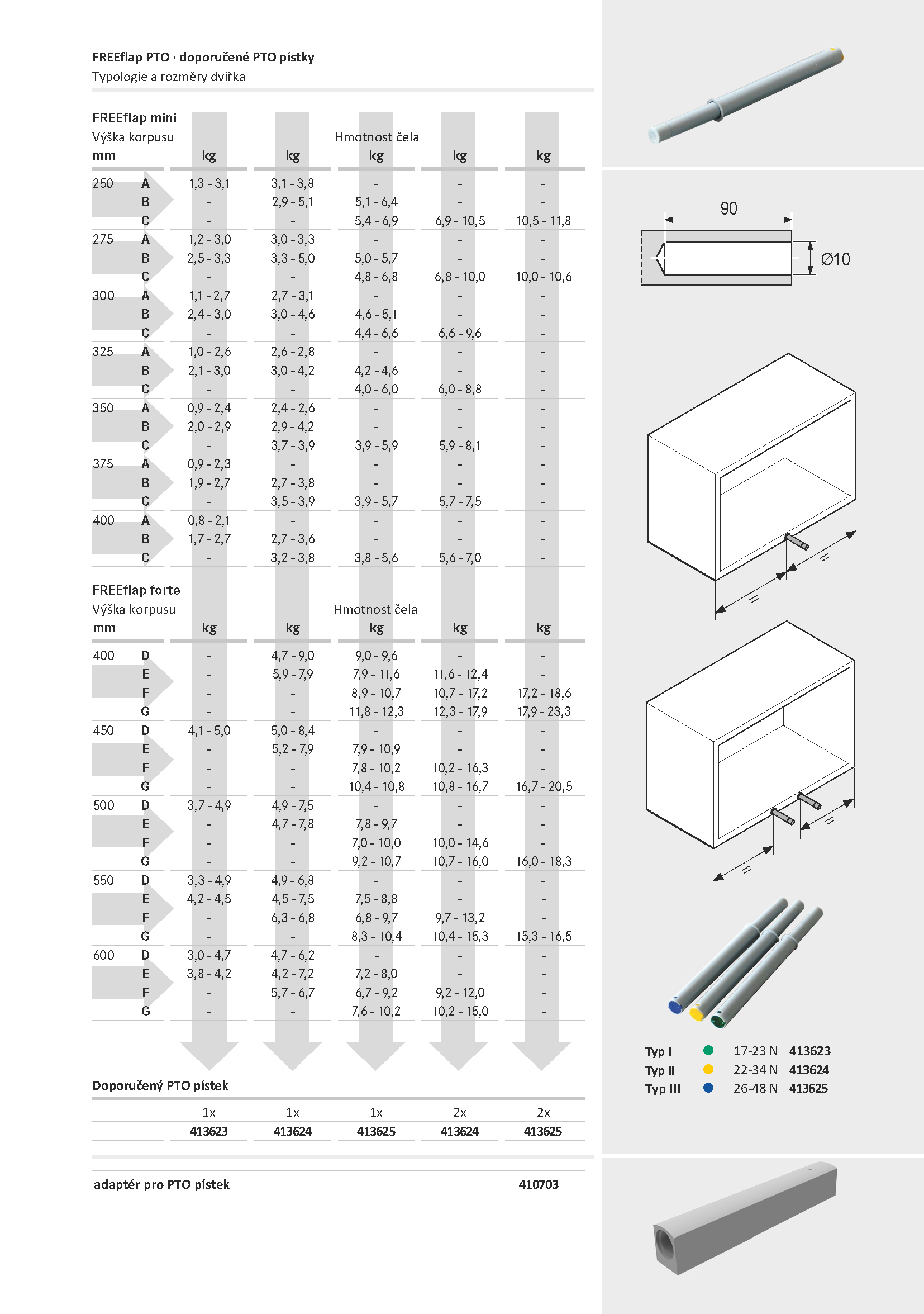

For handle-free opening, in addition to the electric eTouch system, PTO pistons can also be used, selection and sizing see related documents. After being pressed, the door opens to the length of the piston and then it can be grasped by hand and opened to the desired position.
FREEflap video manual
Parameters
| Parameter | Value |
|---|---|
| Colour | Anthracite |
| Design | Damped |
| Height of body (mm) | 350 - 650 |
| Type of front side | Wood, wide alu frame |
