KES FREEflap forte E anthracite
- Base price per set
- 22,22 EUR 26,8862 EUR incl. VAT
-
> S In stockOnly in central warehouse
- Buy
- Brand
- Kesseböhmer
- Group code
- 1010030101
- Unit (piece)
- set
- Divisibility
- 1 set
- Packaging
- 20 set

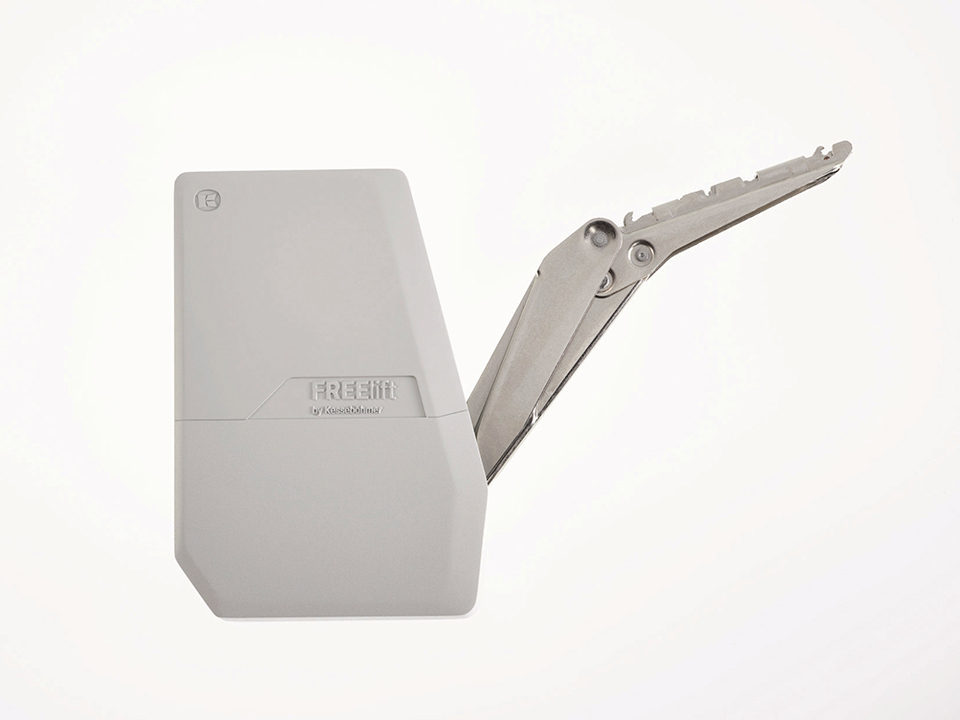

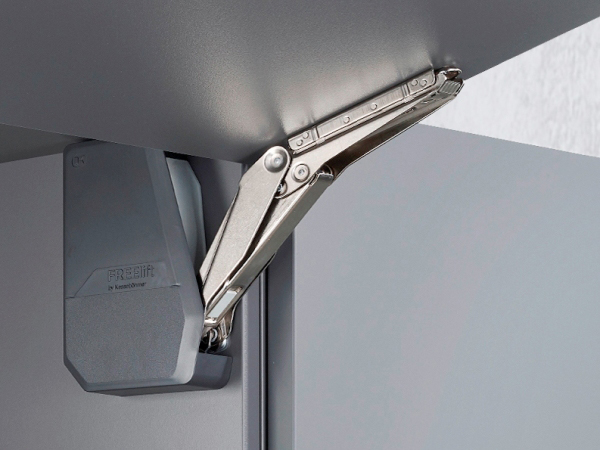

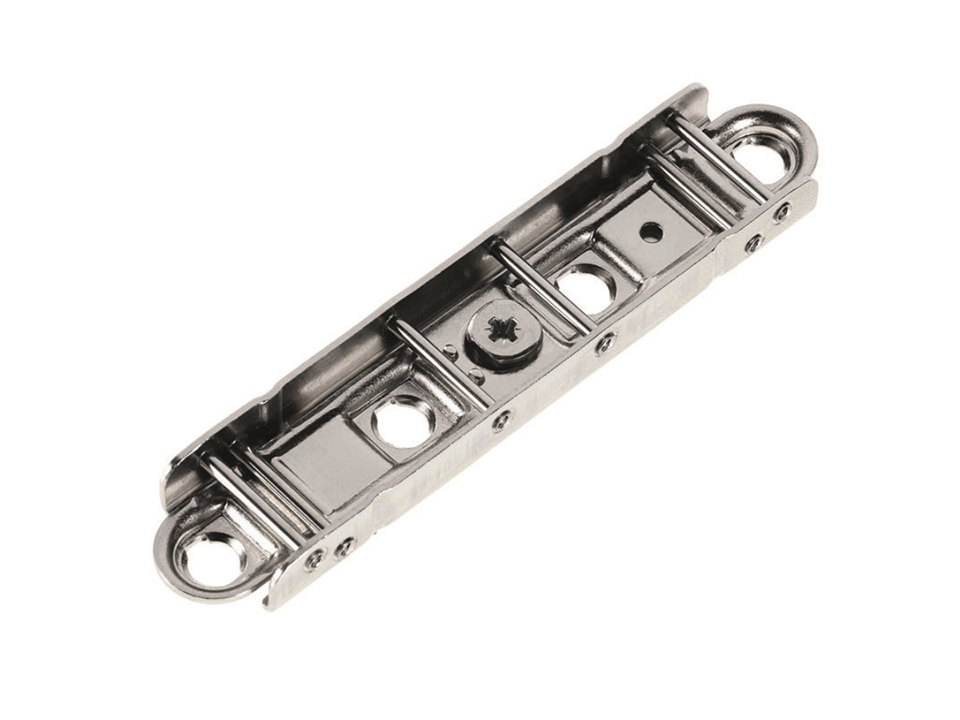

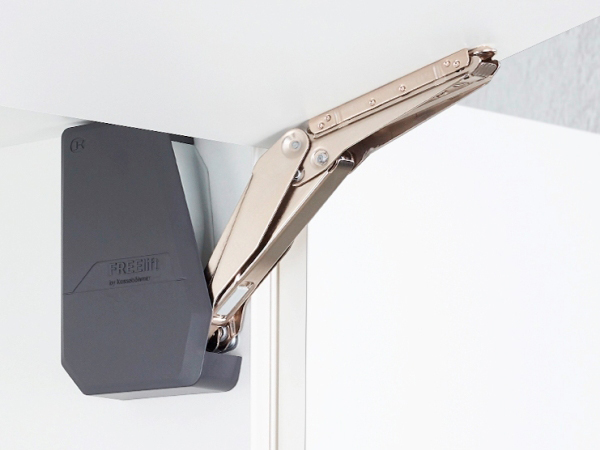

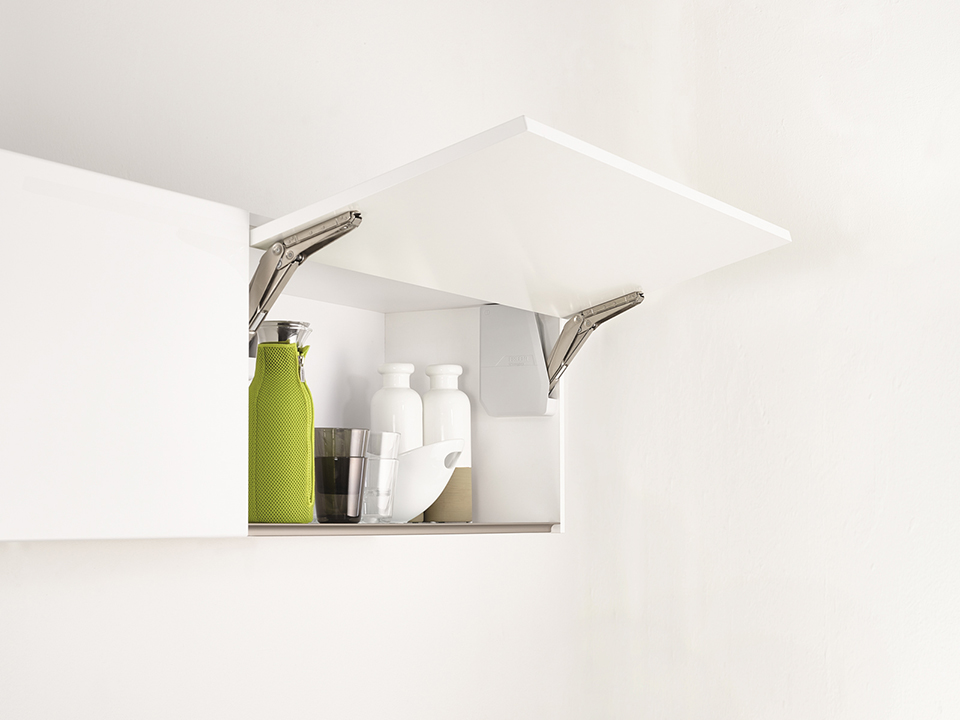

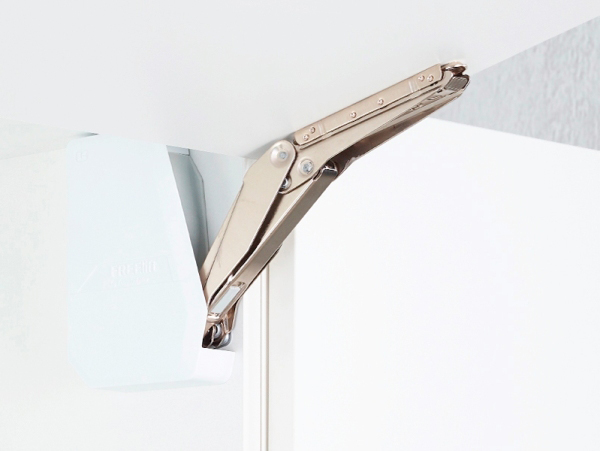

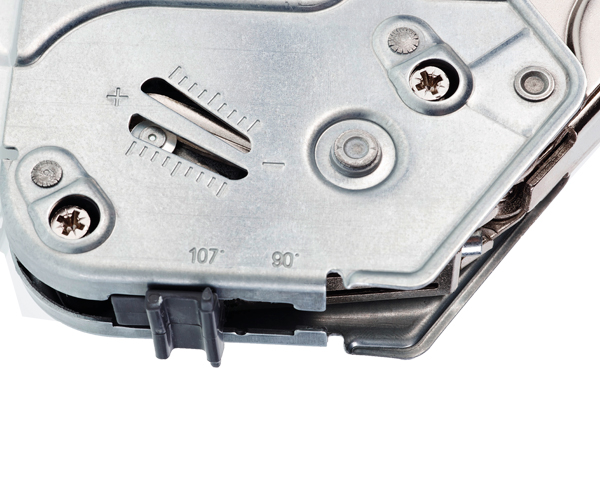

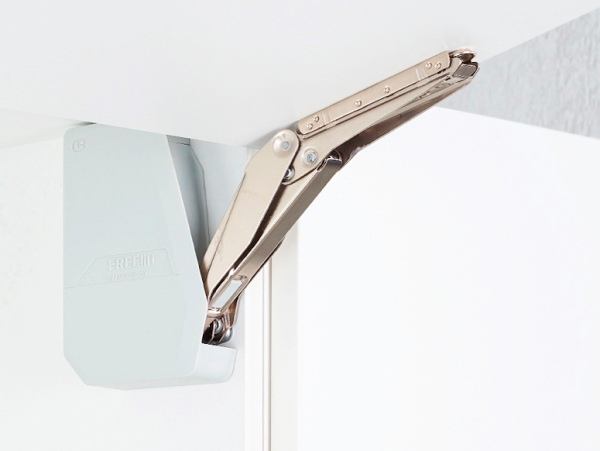

Hip-up fitting with velvet movement and easy assembly. Opening angle 107°. The set includes a pair of hinges, caps in anthracite color, front fittings. Depending on the weight and height of the forehead, you determine the appropriate force of the tilt.

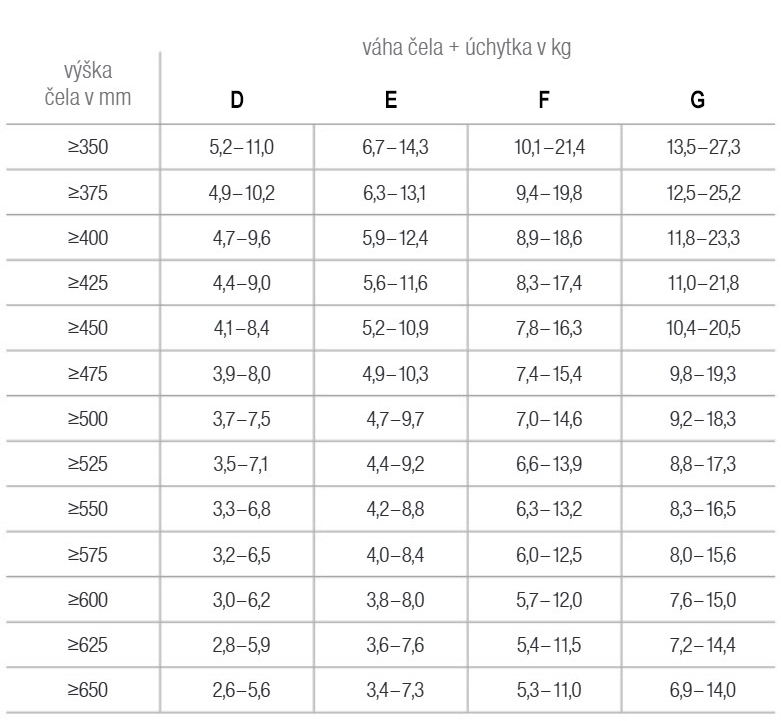

For forehead height 350mm and weight 6.7 - 14.3kg. For forehead height 375mm and weight 6.3 - 13.1kg. For headboard height 400mm and weight 5.9 - 12.4kg. For forehead height 425mm and weight 5.6 - 11.6kg. For head height 450mm and weight 5.2 - 10.9kg. For forehead height 475mm and weight 4.9 - 10.3kg. For a head height of 500 mm and a weight of 4.7 - 9.7 kg. For forehead height 525mm and weight 4.4 - 9.2kg. For head height 550mm and weight 4.2 - 8.8kg. For forehead height 575mm and weight 4.0 - 8.4kg. For headboard height 600mm and weight 3.8 - 8.0kg. For forehead height 625mm and weight 3.6 - 7.6kg. For a front height of 650 mm and a weight of 3.4 - 7.3 kg.

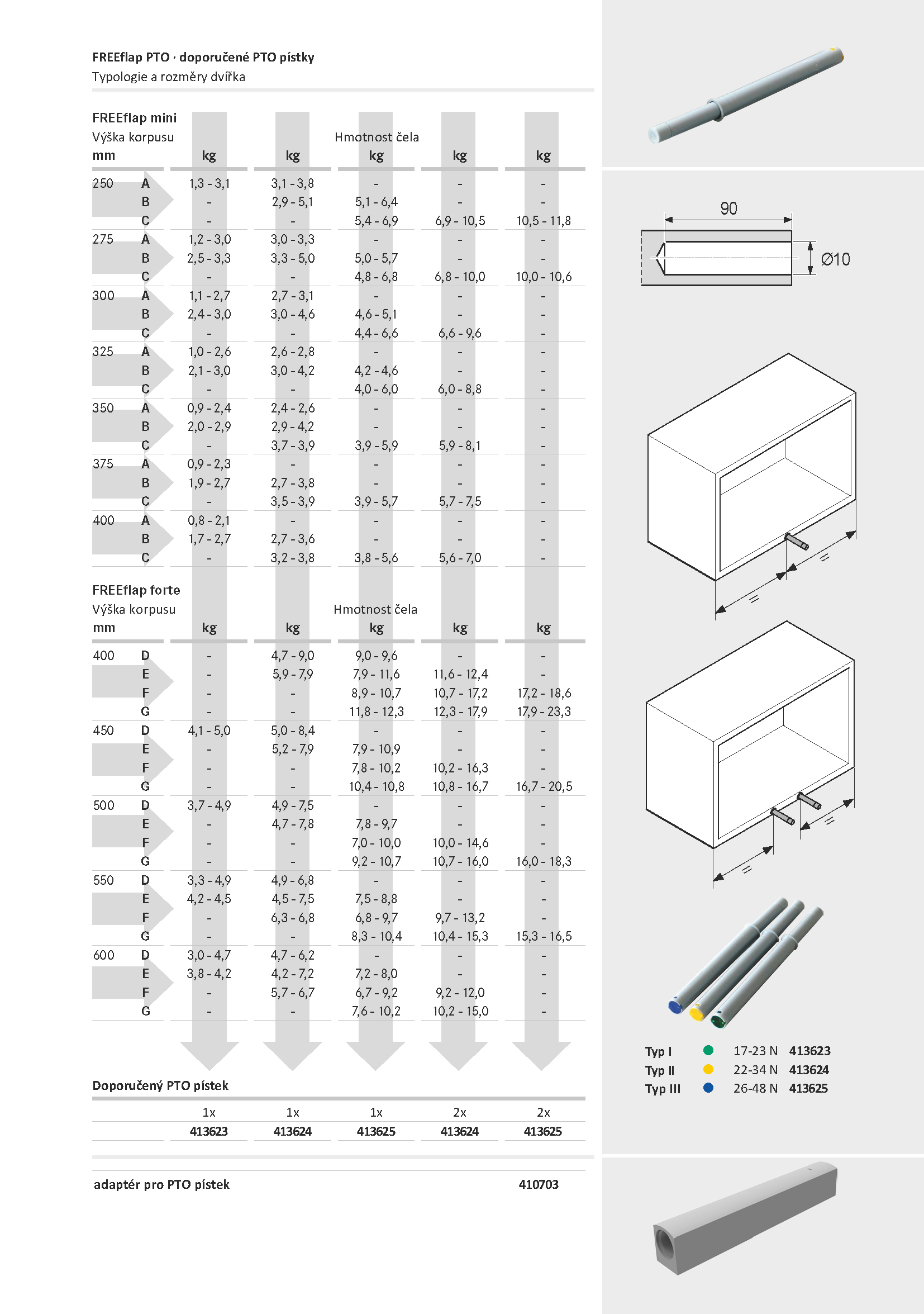

In addition to the electric eTouch system, PTO pistons can also be used for handle-free opening, see related documents for selection and sizing. When pressed, the door opens to the length of the piston and can then be grasped by hand and opened to the desired position.
FREEflap video manual
Parameters
| Parameter | Value |
|---|---|
| Colour | Anthracite |
| Design | Damped |
| Height of body (mm) | 350 - 650 |
| Type of front side | Wood, wide alu frame |
