KES FREEflap mini C anthracite
- Base price per set
- 14,377 EUR 17,3962 EUR incl. VAT
-
> S In stockOnly in central warehouse
- Buy
- Brand
- Kesseböhmer
- Group code
- 1010030101
- Unit (piece)
- set
- Divisibility
- 1 set
- Packaging
- 20 set

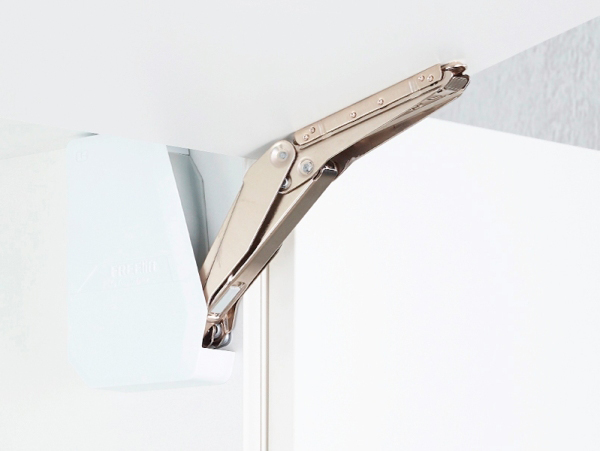

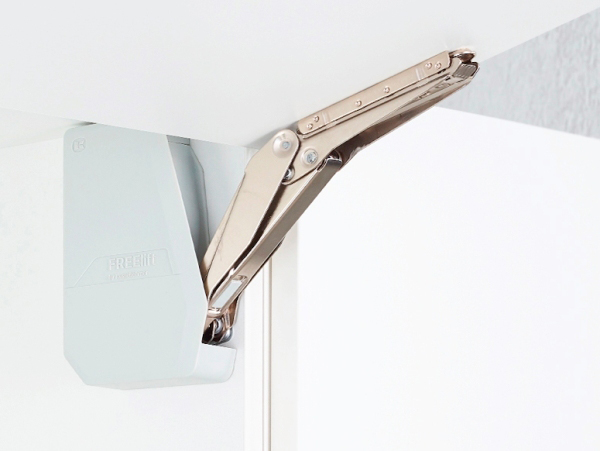

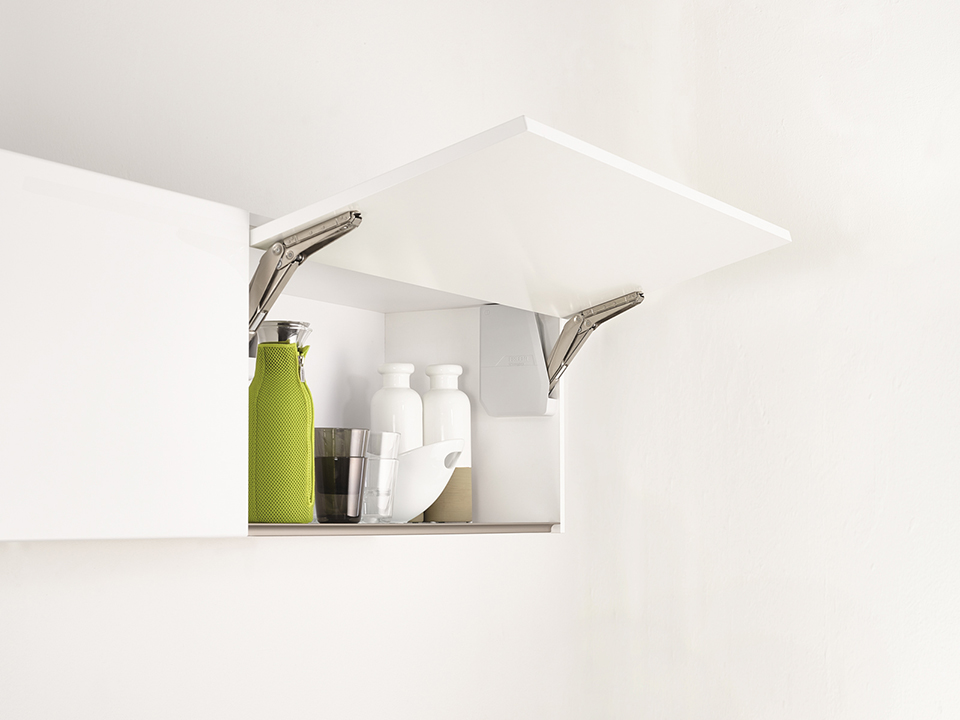

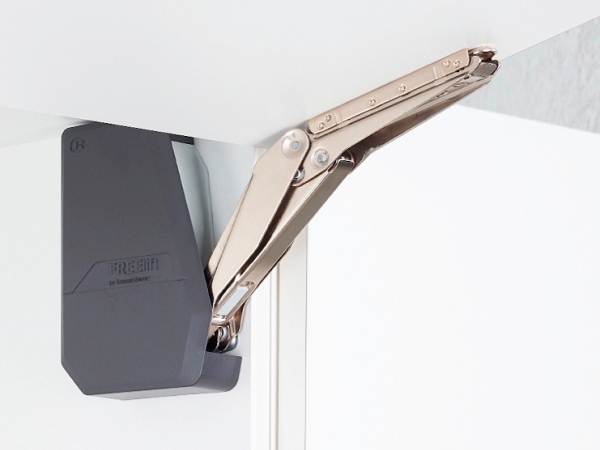

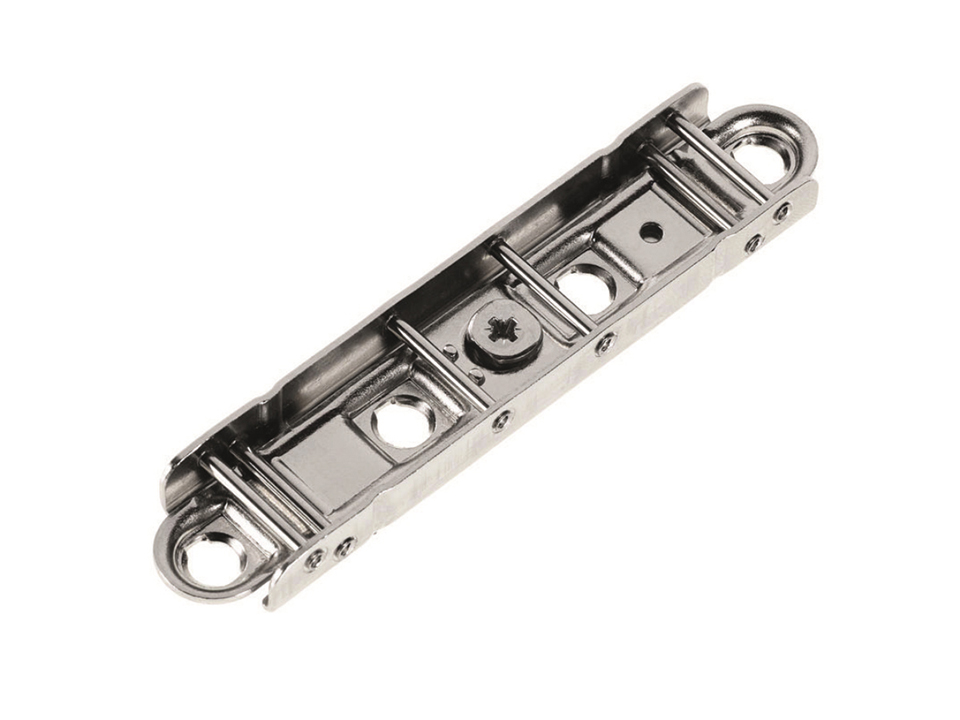

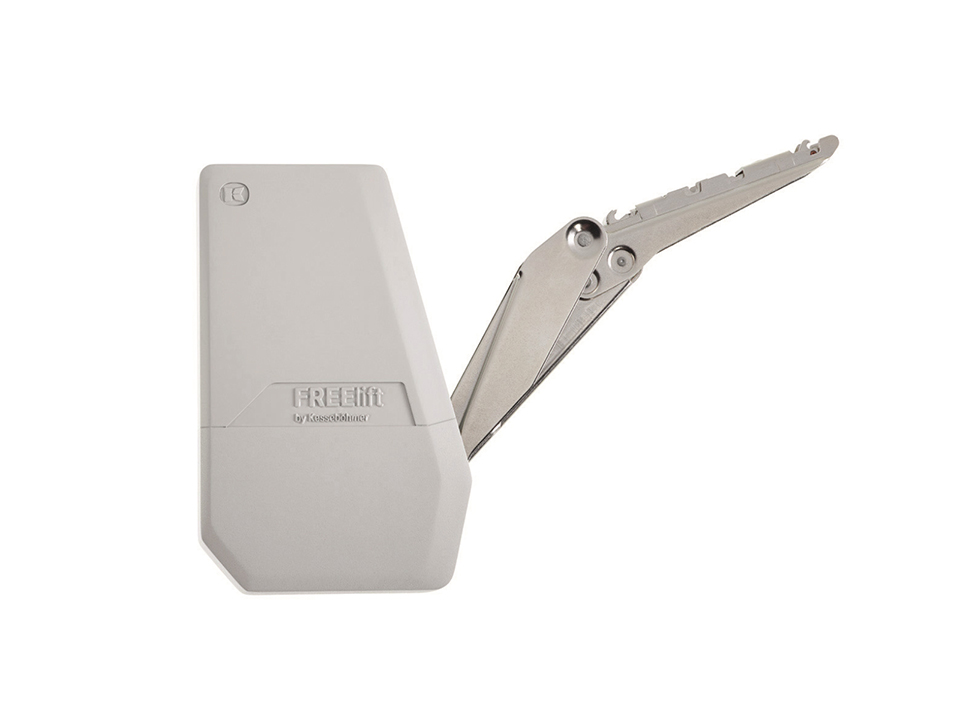

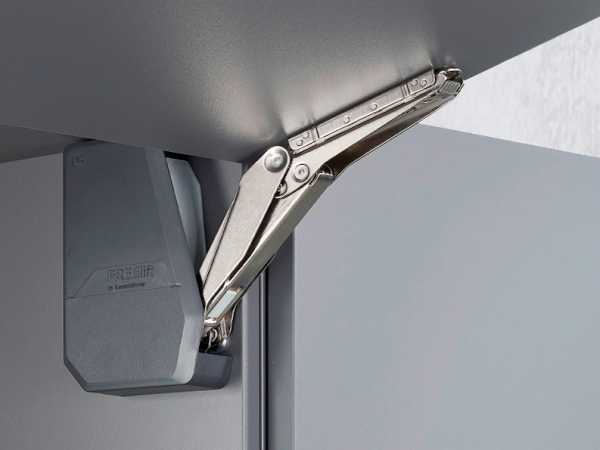

Hip-up fitting with velvet movement and easy assembly. Opening angle 107°. The set includes a pair of hinges, caps in anthracite color, front fittings. Depending on the weight and height of the forehead, you determine the appropriate force of the tilt.

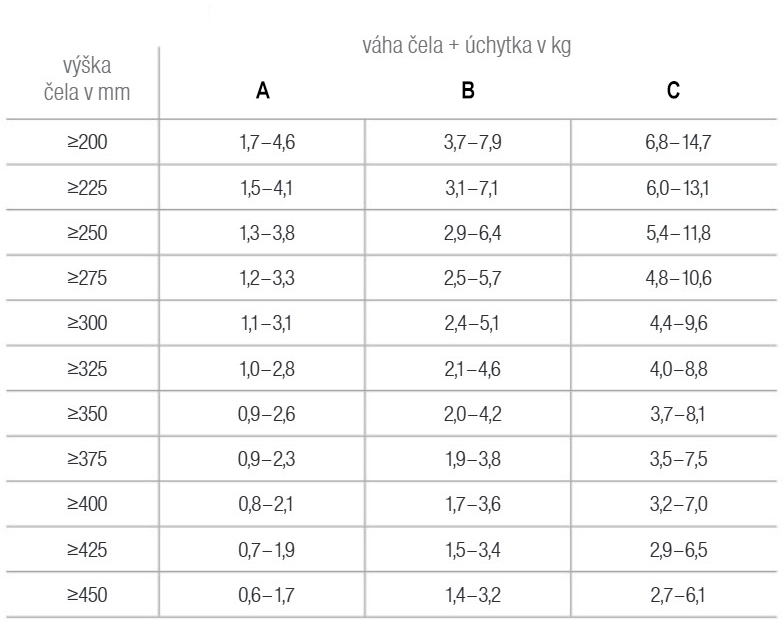

For height 200mm, 6.8 - 14.7kg. For height 225mm, 6.0 - 13.1kg. For a height of 250mm, 5.4 - 11.8kg. For height 275mm, 4.8 - 10.6kg. For a height of 300mm, 4.4 - 9.6kg. For height 325mm, 4.0 - 8.8kg. For a height of 350mm, 3.7 - 8.1kg. For height 375mm, 3.5 - 7.5kg. For a height of 400mm, 3.2 - 7.0kg. For height 425mm, 2.9 - 6.5kg. For a height of 450mm, 2.7 - 6.1kg.
PTO pistons can also be used for handle-free opening, see related documents for selection and sizing. After being pressed, the door opens to the length of the piston and then it can be grasped by hand and opened to the desired position.
FREEflap video manual
Parameters
| Parameter | Value |
|---|---|
| Colour | Anthracite |
| Design | Damped |
| Height of body (mm) | 200 - 450 |
| Type of front side | Wood, wide alu frame |
| Title | Code | Availability |
Divisibility/ packaging |
Basic price per unit | |
|
Tips for a better price
Order the whole package and your price per pc (pcs) will be %price% |
410580 |
>
S
In stock
|
1 pcs / 10 pcs |
0,3471 EUR
/ pcs
0,42 EUR incl. VAT
|
|
