KES FREEspace mini B anthracite PTO
Product range code
410681
Images are for illustration only and may not correspond to reality. The parameters of the actual embodiment are included in the product name and description.
- Base price per set
- 25,9822 EUR 31,4385 EUR incl. VAT
-
> S In stockOnly in central warehouse
- Buy
- Brand
- Kesseböhmer
- Group code
- 1010030101
- Unit (piece)
- set
- Divisibility
- 1 set
- Packaging
- 5 set
Description and parameters

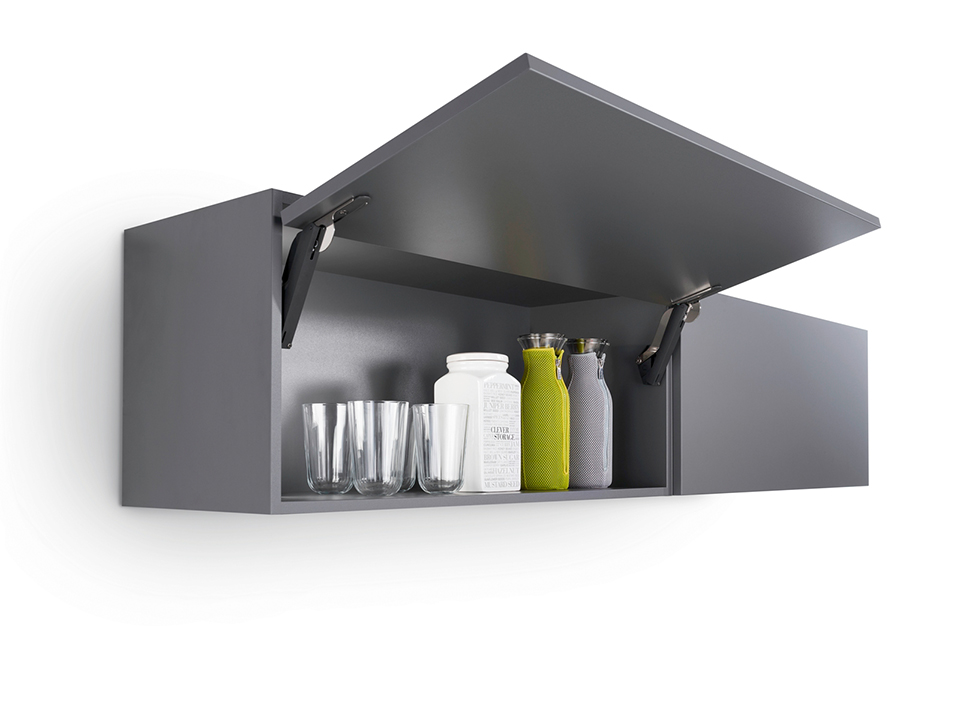

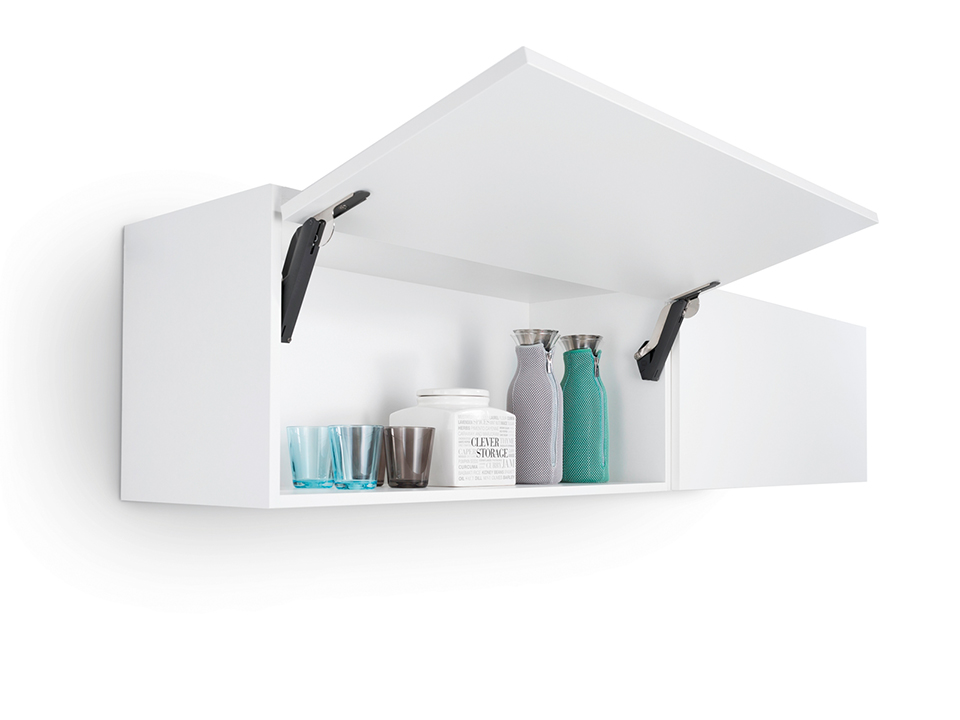

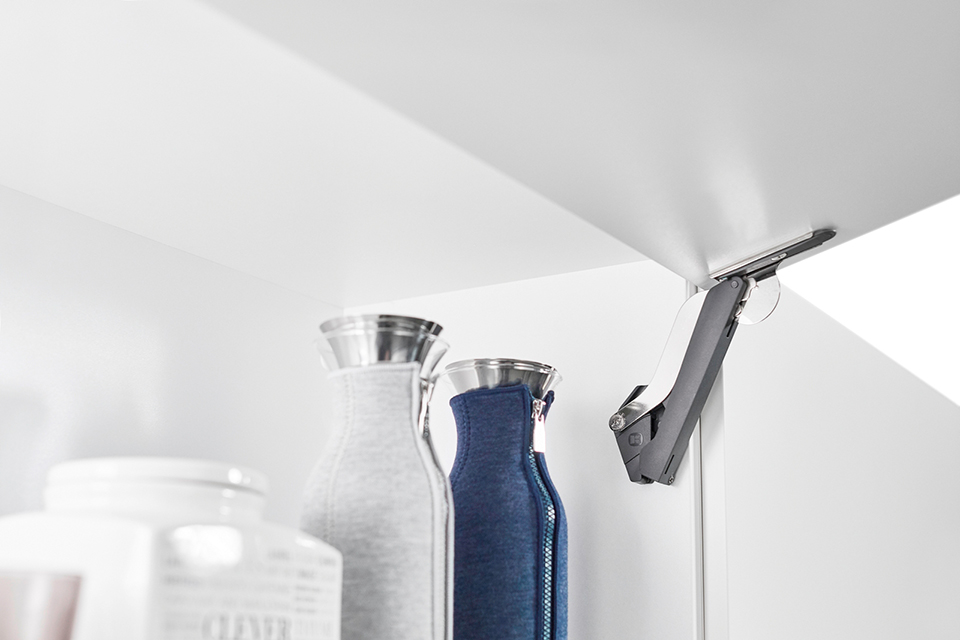

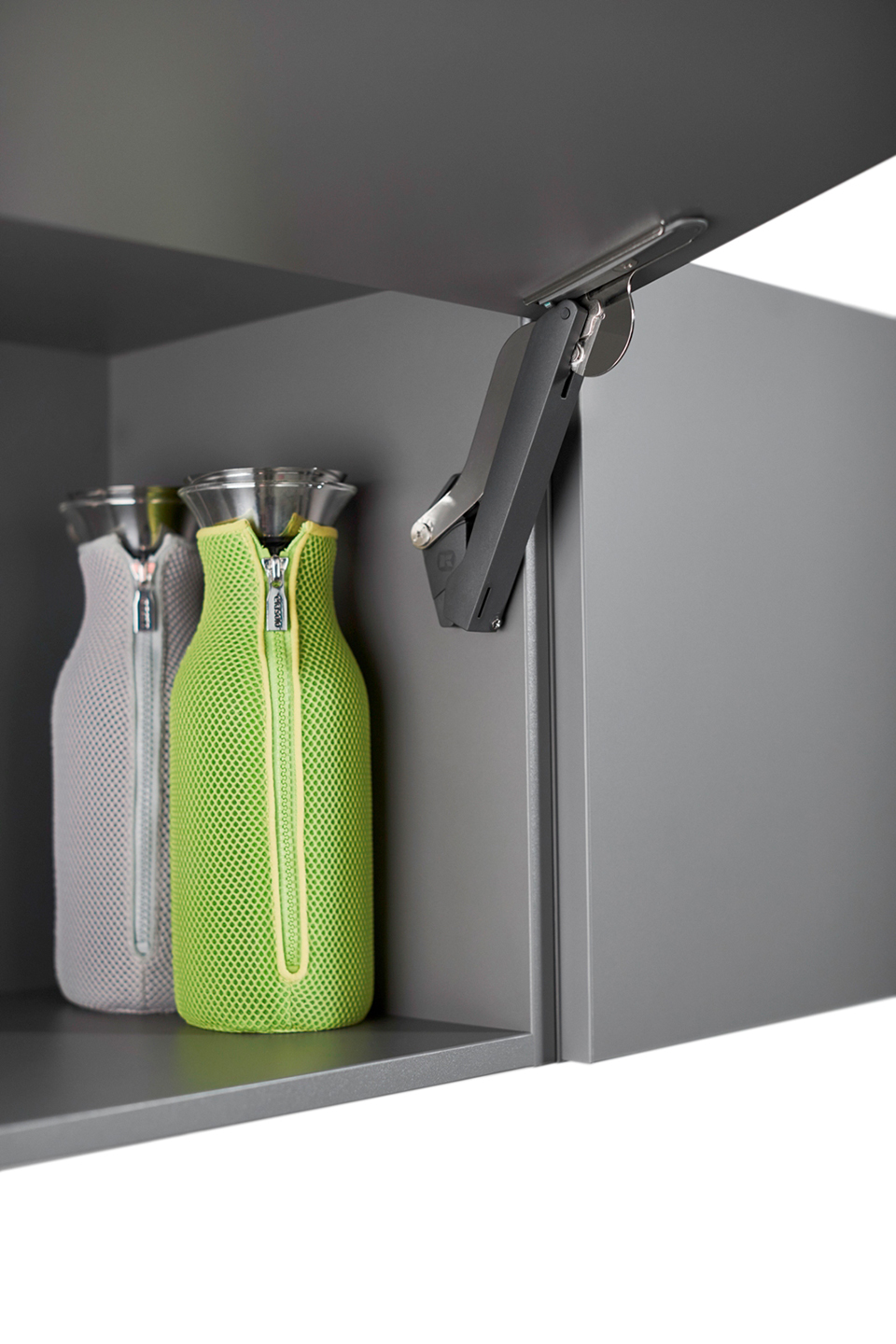

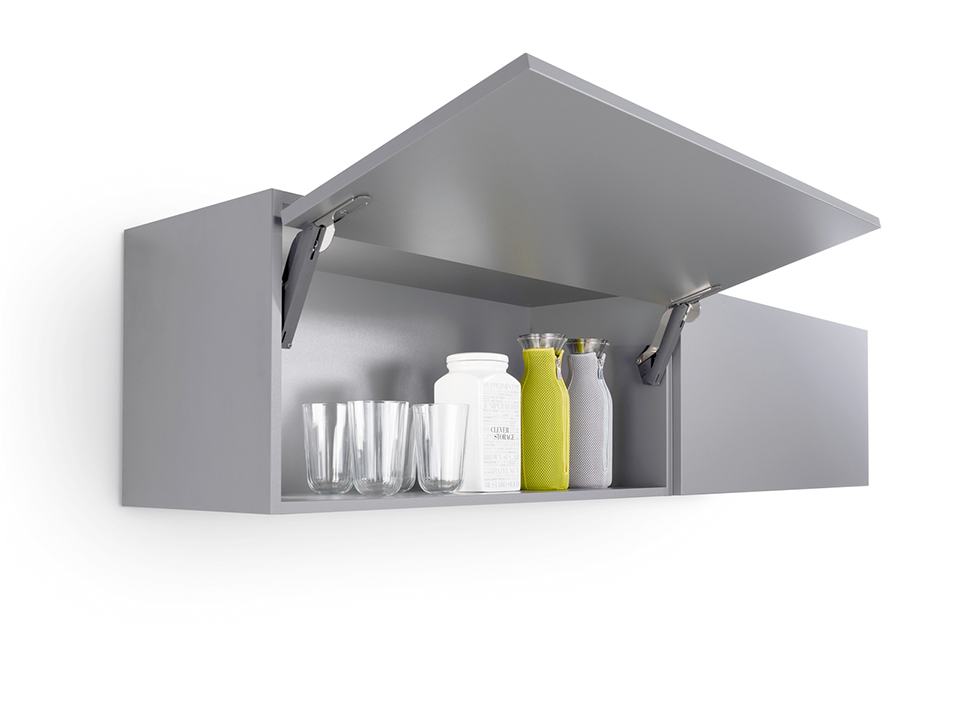

Complete set for handle-free opening (PTO - Push To Open) for upper cabinets without using hinges with minimalist fitting dimensions. Headboard height 200-650mm, width up to 1800mm. Integrated opening angle limiter 107°=>90°.
For mounting on wide aluminum frames (min. 45mm) it is necessary to use the front fitting set 410701.

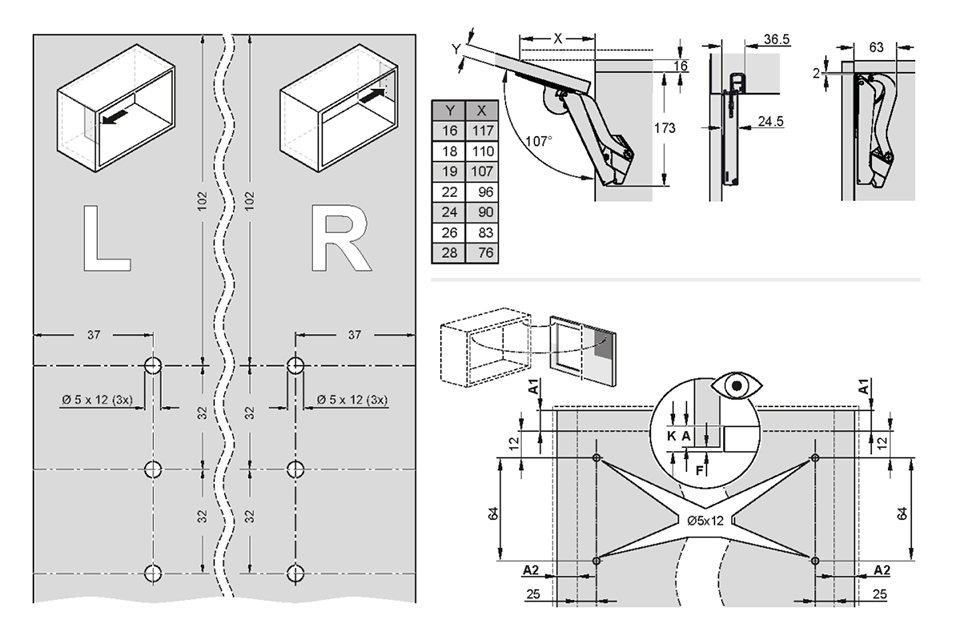

Easy installation - 3 holes of 5mm are drilled on each side of the body (2× positioning pin, 1× euro screw). Tool-free installation of the ClickFix front.
The set includes:

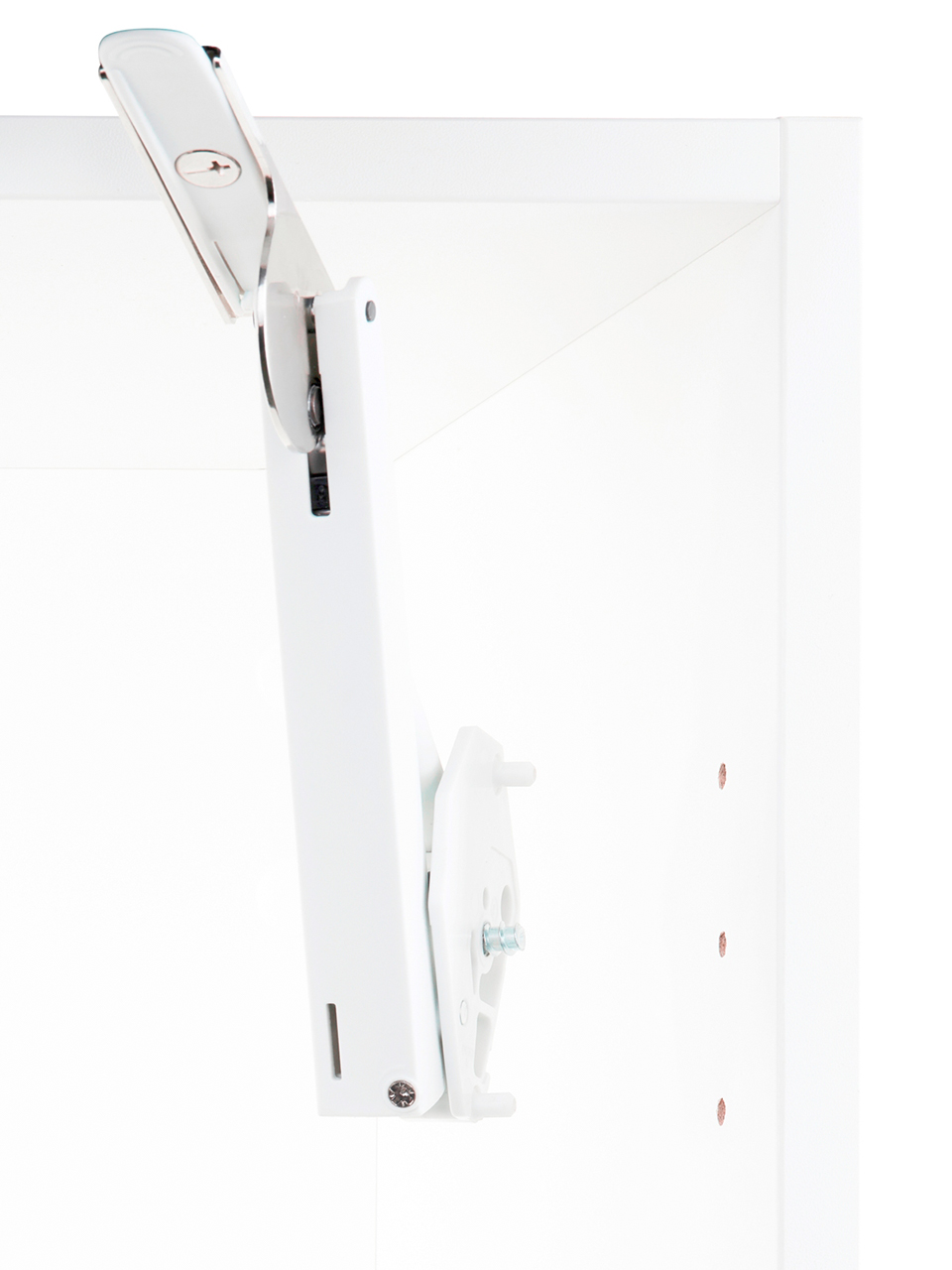

- left and right hinge

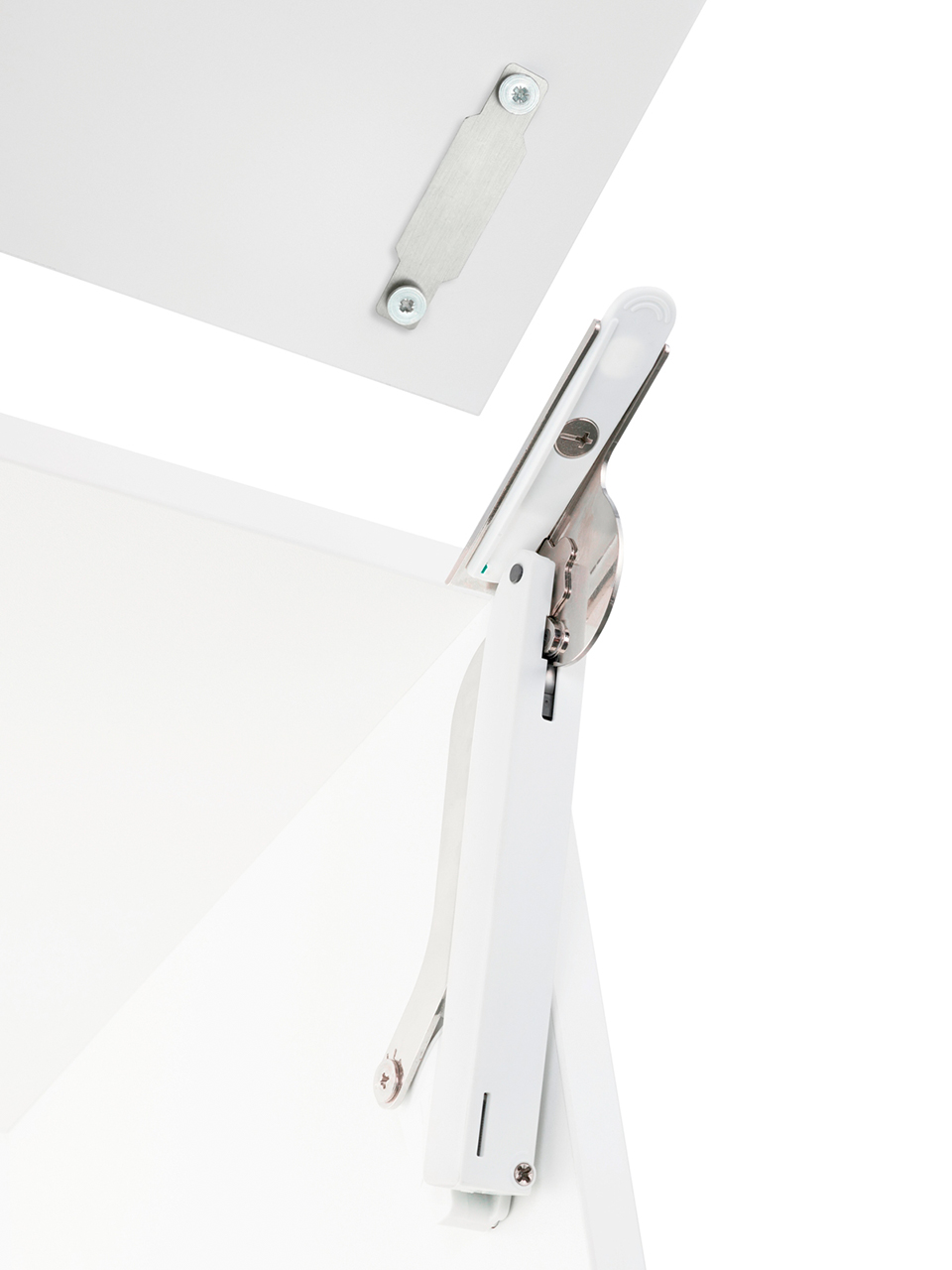

- front fittings with pre-assembled euro screws

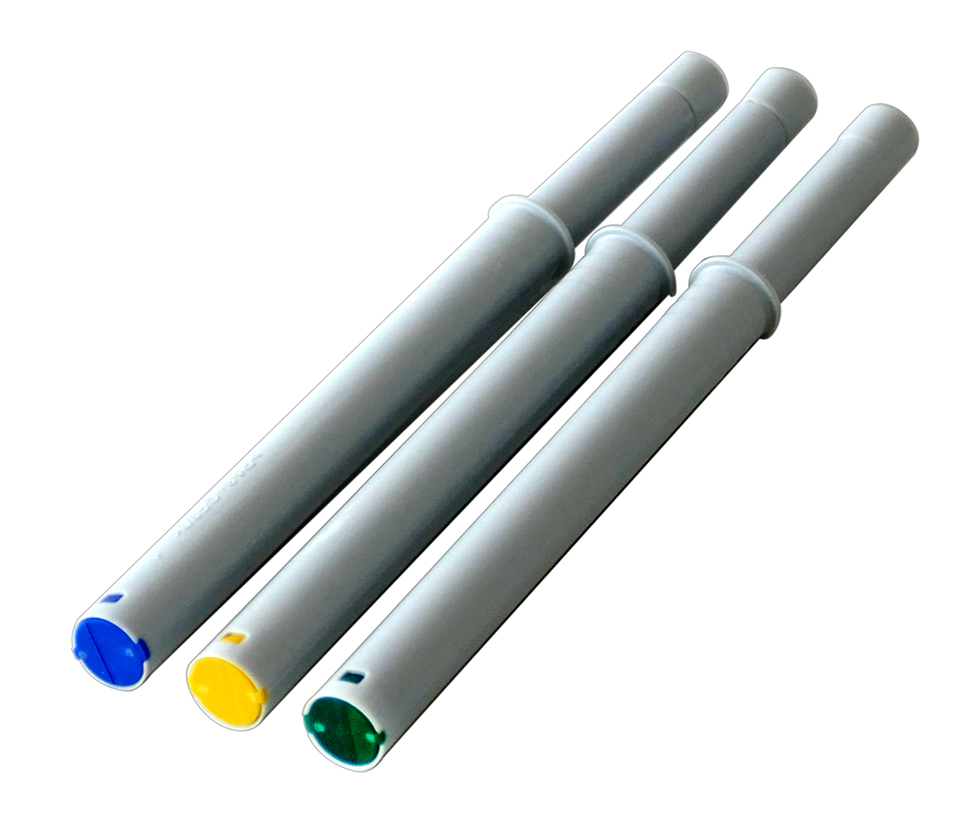

- PTO piston for drilling
Adapter for PTO mounting piston for body not included (can be purchased separately).
Related documents
Assembly instructionsParameters
| Parameter | Value |
|---|---|

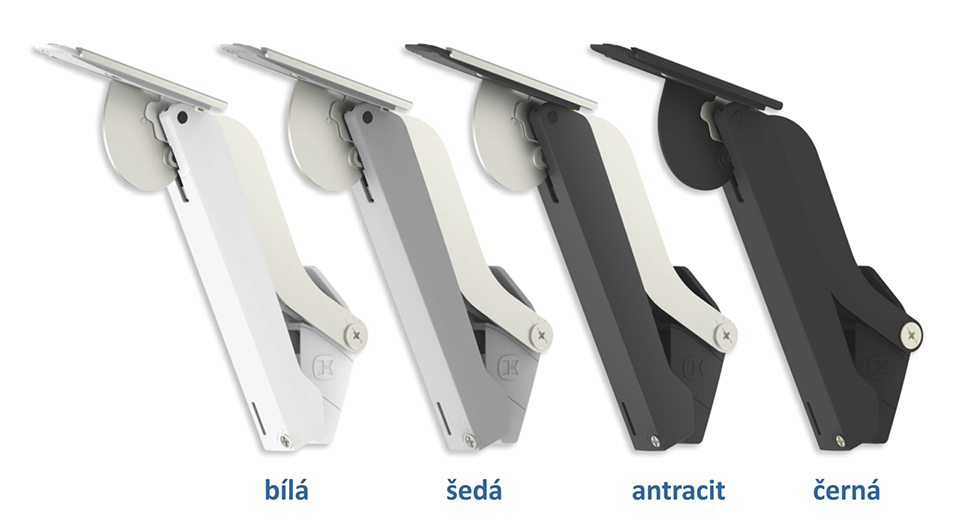

| Colour | Anthracite |
| Design | Handleless |
| Height of body (mm) | 200 - 650 |
| Type of front side | Wood, wide alu frame |
