KES FREEspace mini C white PTO
- Base price per set
- 25,9822 EUR 31,4385 EUR incl. VAT
-
> S In stock
- Buy
- Brand
- Kesseböhmer
- Group code
- 1010030101
- Unit (piece)
- set
- Divisibility
- 1 set
- Packaging
- 5 set

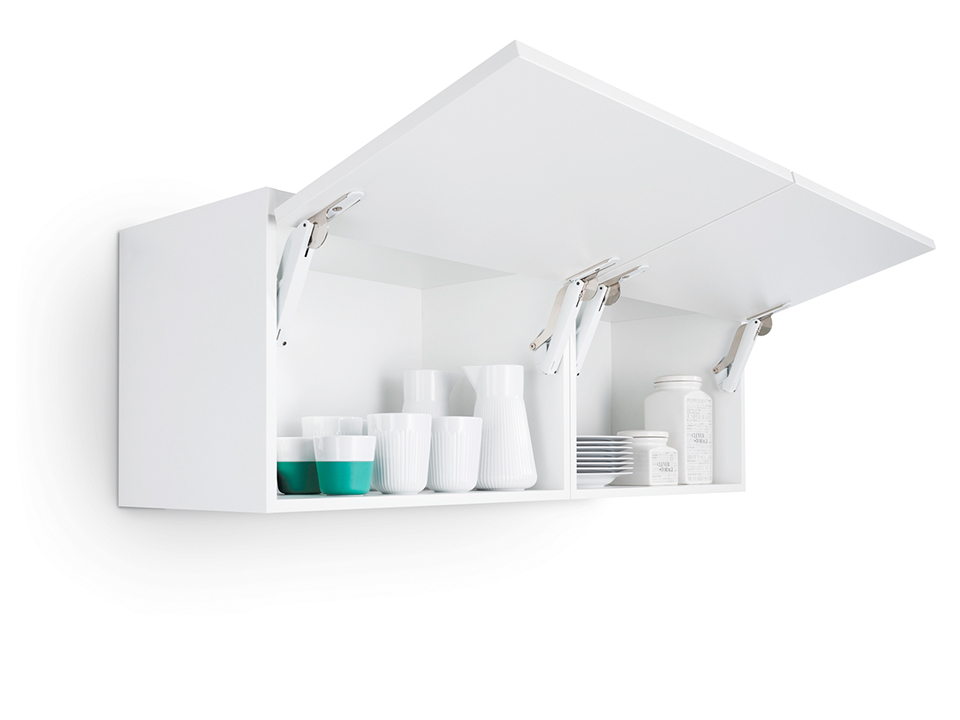

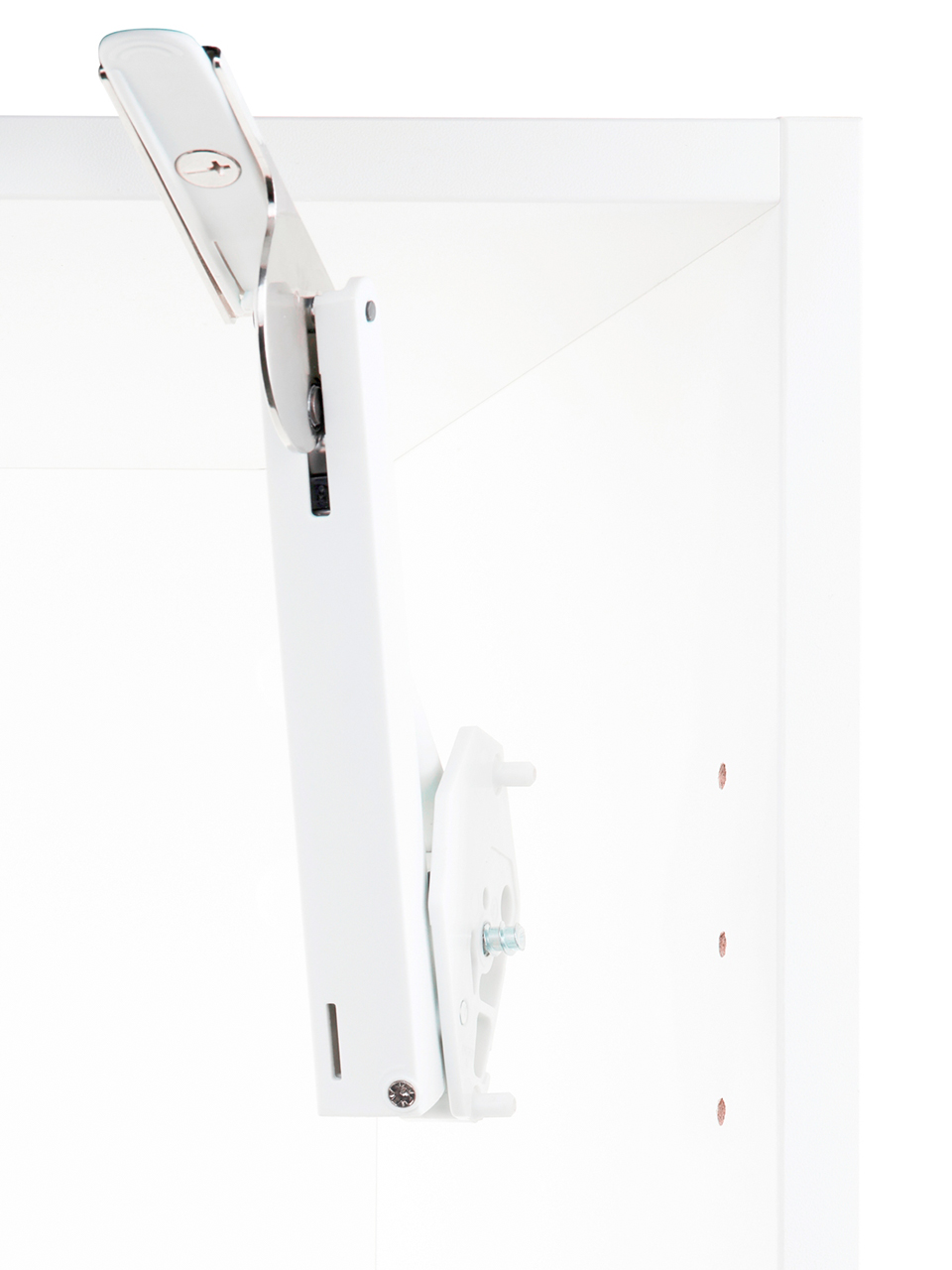

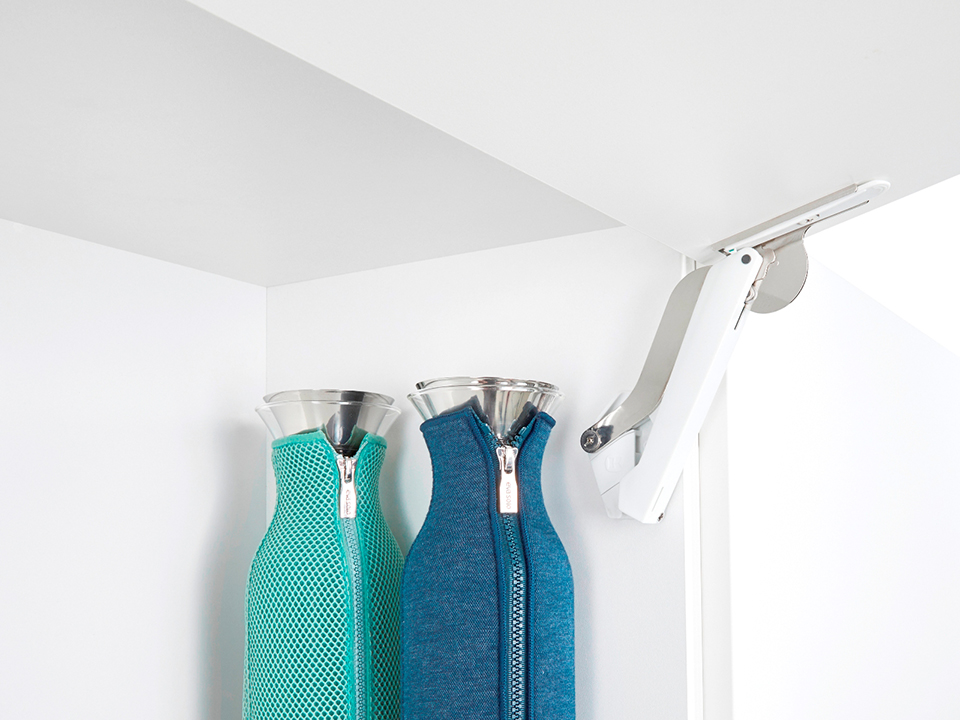

Complete set for handle-free opening (PTO - Push To Open) for upper cabinets without using hinges with minimalist fitting dimensions. Headboard height 200-650mm, width up to 1800mm. Integrated opening angle limiter 107°=>90°.
For mounting on wide aluminum frames (min. 45mm) it is necessary to use the front fitting set 410701.

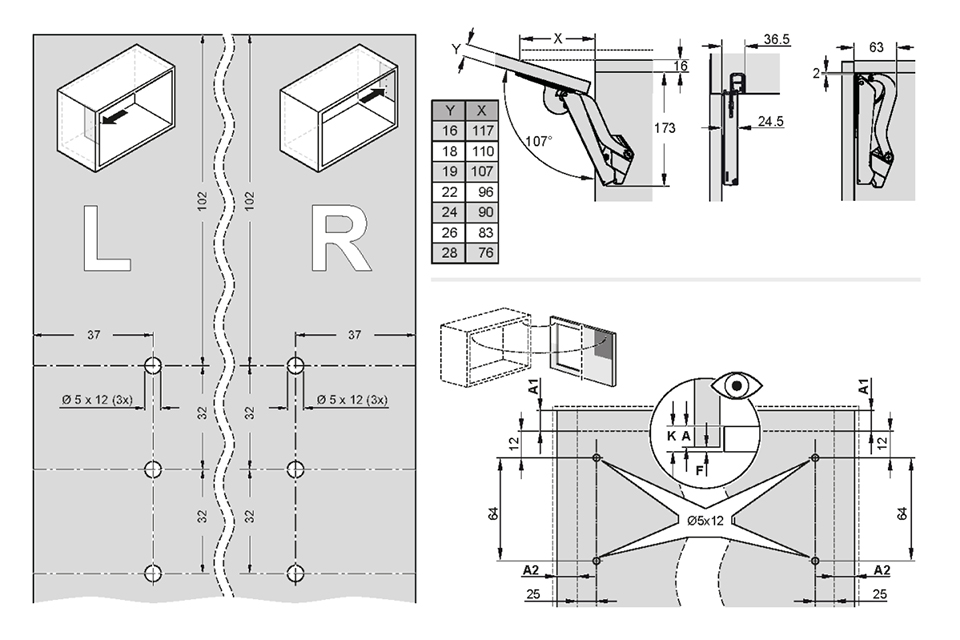

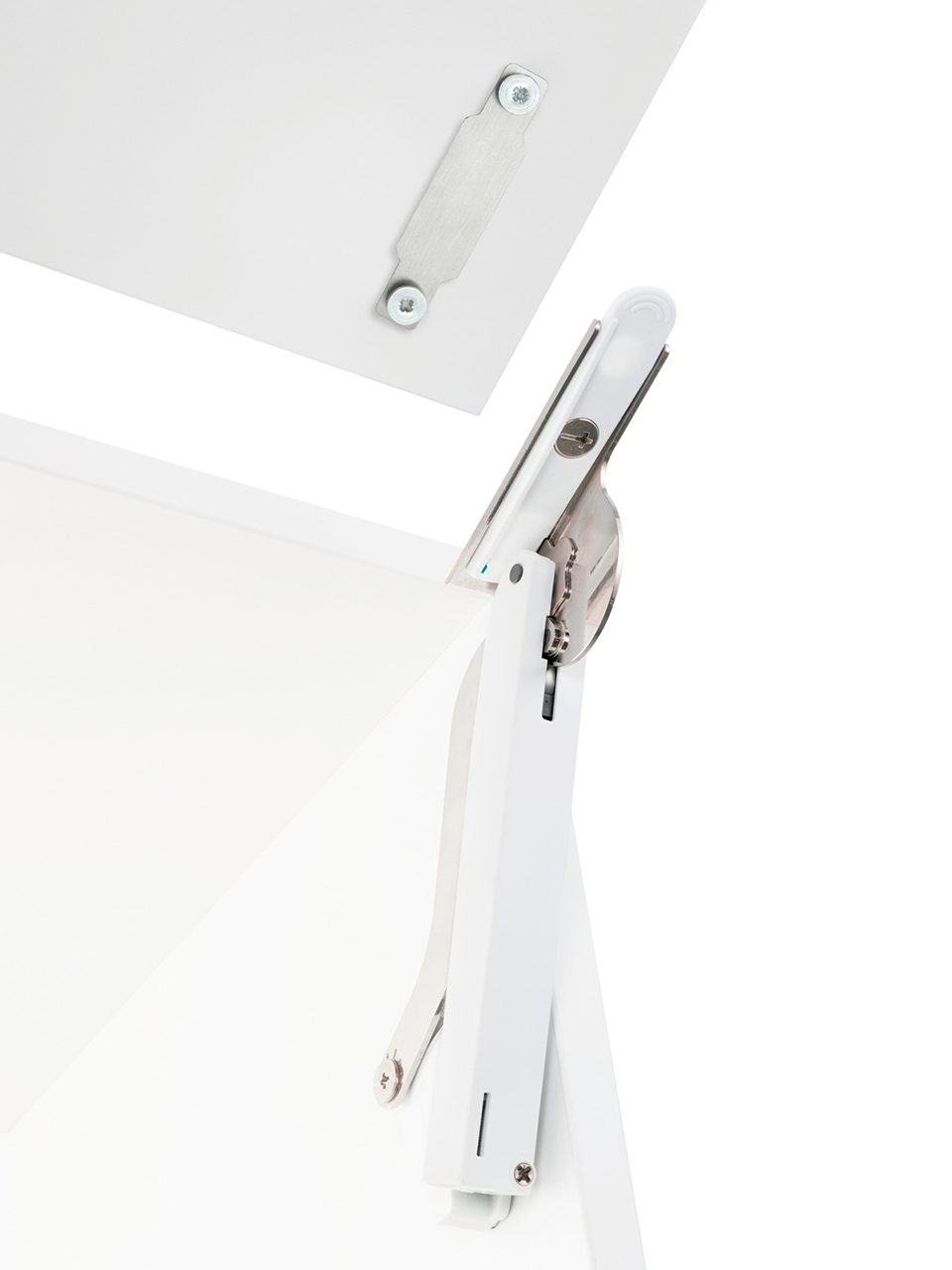

Easy installation - 3 holes of 5mm are drilled on each side of the body (2× positioning pin, 1× euro screw). Tool-free installation of the ClickFix front.
The set includes:
- left and right hinge
- front fittings with pre-assembled euro screws

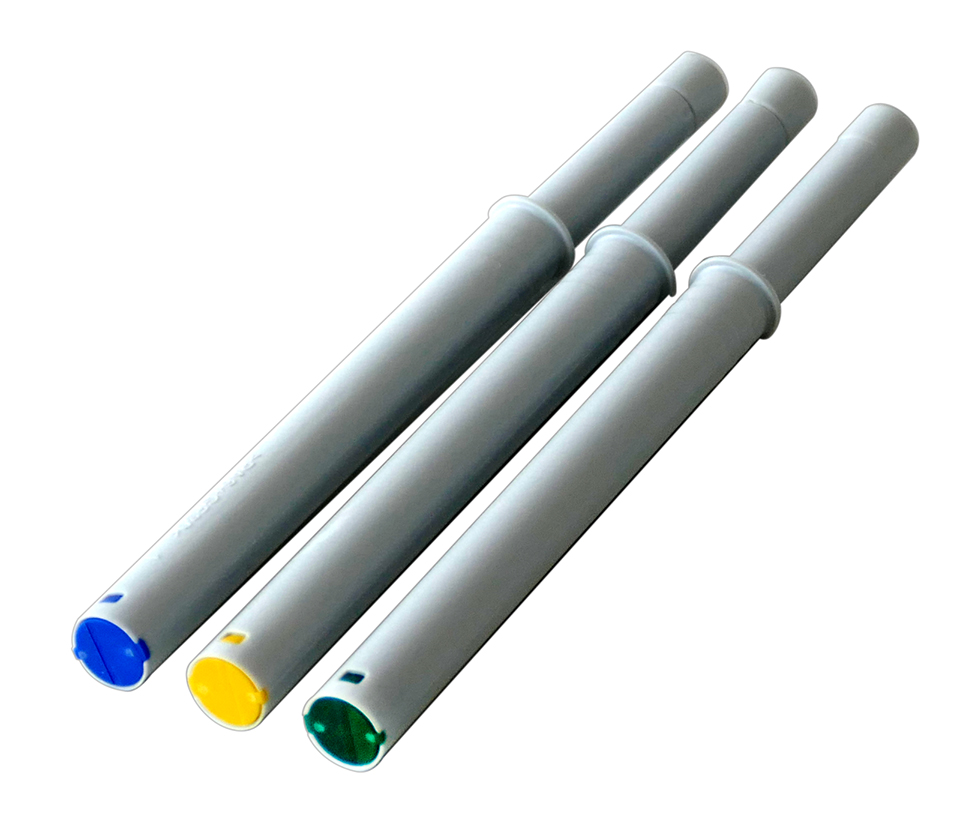

- PTO piston for drilling
Adapter for PTO mounting piston for body not included (can be purchased separately).
Related documents
Assembly instructionsParameters
Parameter | Value |
---|---|

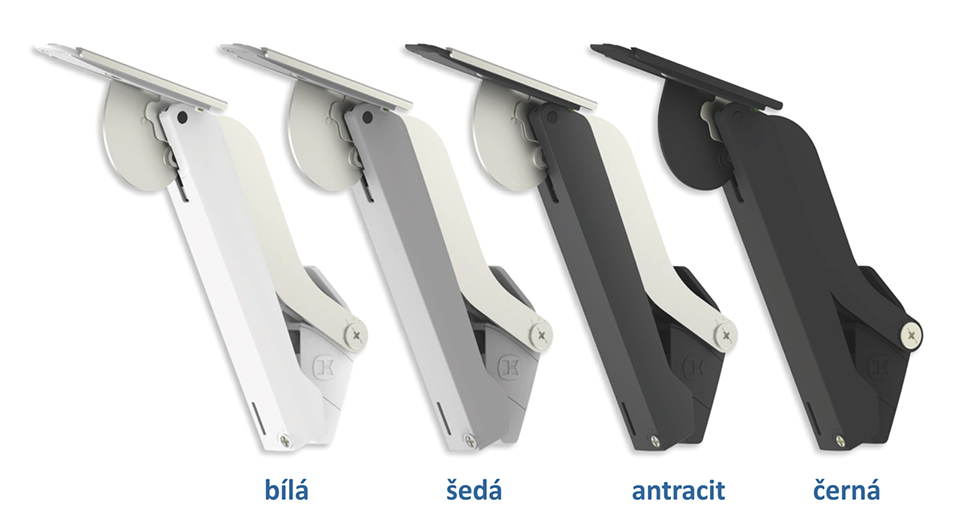

Colour | White |
Design | Handleless |
Height of body (mm) | 200 - 650 |
Type of front side | Wood, wide alu frame |
